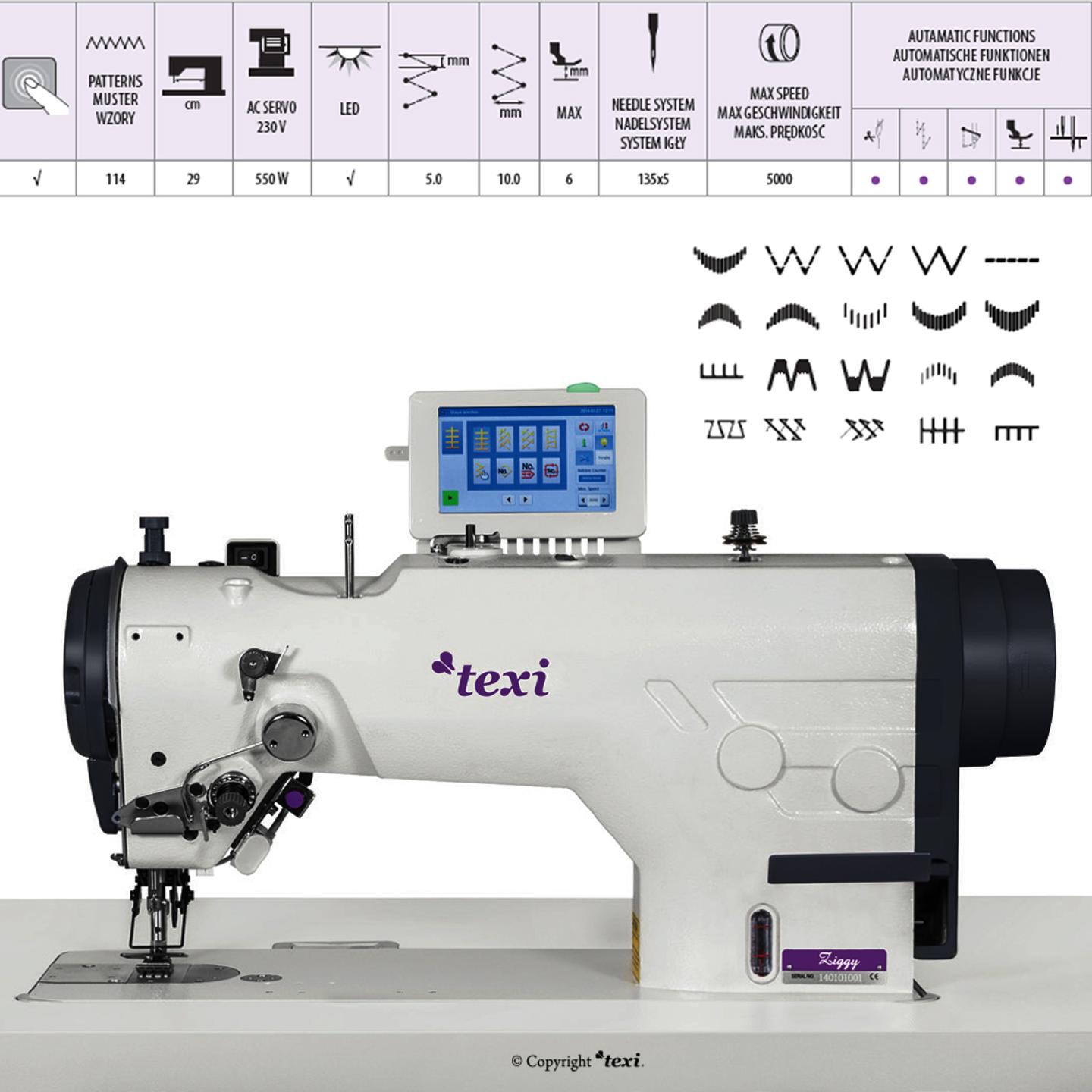

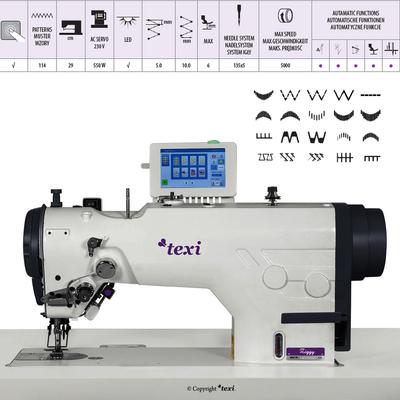

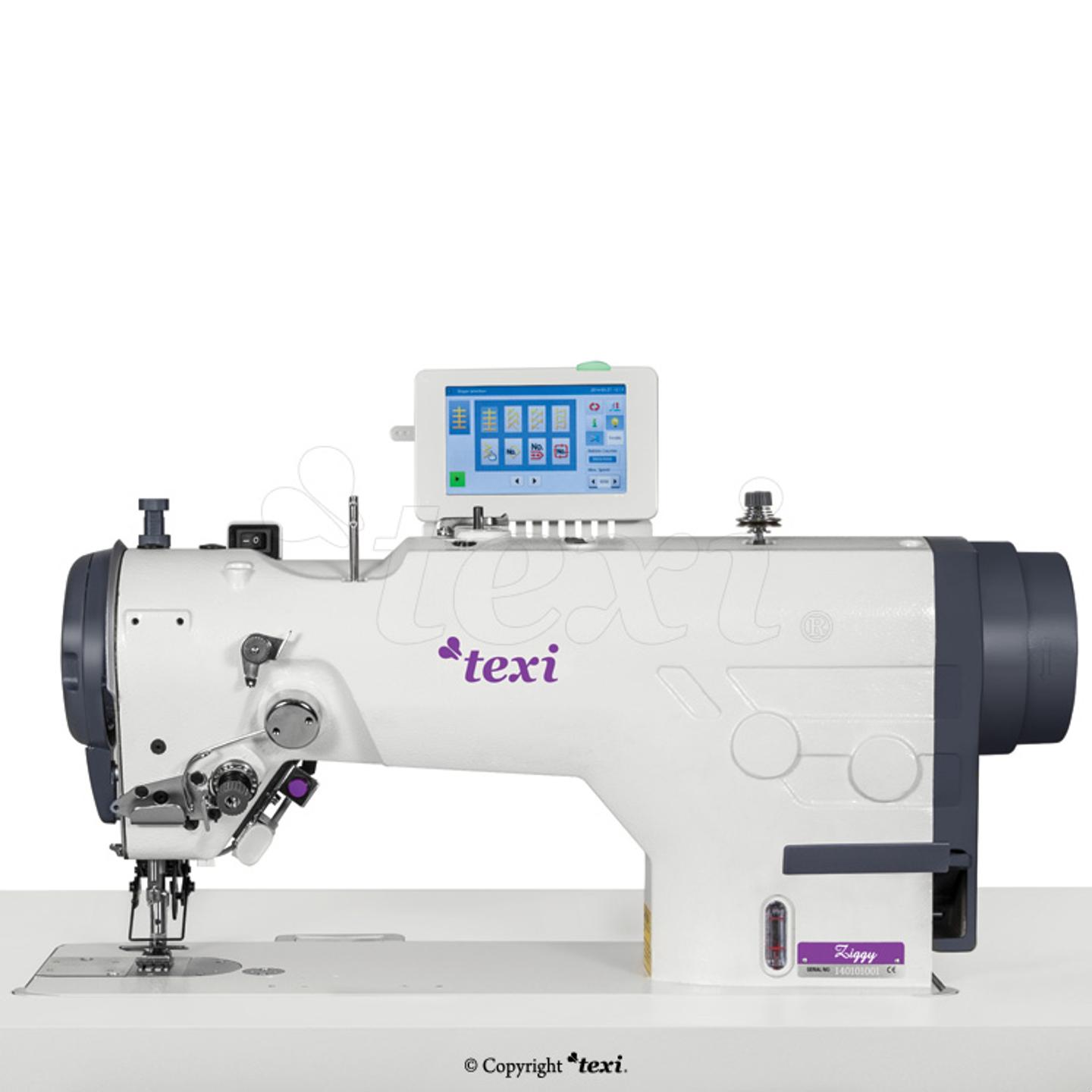

Electronic zigzag - head only

Electronic programmable zigzag machine with automatic functions. Perfect for straight stitch, standard zigzag, 2-step, 3-step, scallop and other decorative stitches. Provides 20 basic patterns and 94 decorative patterns stored in memory and enables its configuration. Machine equipped with software for stitch programming on the touch control panel and for storing them in memory (up to 500 patterns). Panel is equipped with USB port for memory cards and easy transfer of designed patterns.

Possibility to perform a mirror image of selected patterns (e.g. scallop stitches).
Large clearance between needle bar and the machine's arm (increased to 29 cm) ensures easy and convenient material handling.
Equipped with energy-saving AC Servo motor and with stepping motors for driving needle bar and feed dog.

Technical specification:
- for sewing light and medium materials
- bottom feed
- 114 patterns programmed in machine's memory (20 basic and 94 custom decorative)
- software for stitch programming
- automatic functions: thread trimmer, bartacking, foot lifter, needle positioning, wiper
- maximum zigzag length 5mm
- maximum zigzag width 8 mm or 10 mm for 3-step stitches
- sewing speed up to 5.000 s.p.m.
- automatic foot lifter up to 6 mm
- energy-saving LED lamp
- built-in energy-saving AC Servo motor
- voltage 220-240V
- central lubrication
- needles system 135x5
