Single needle lockstitch machine with binder, edge trimmer and built-in motor - complete machine

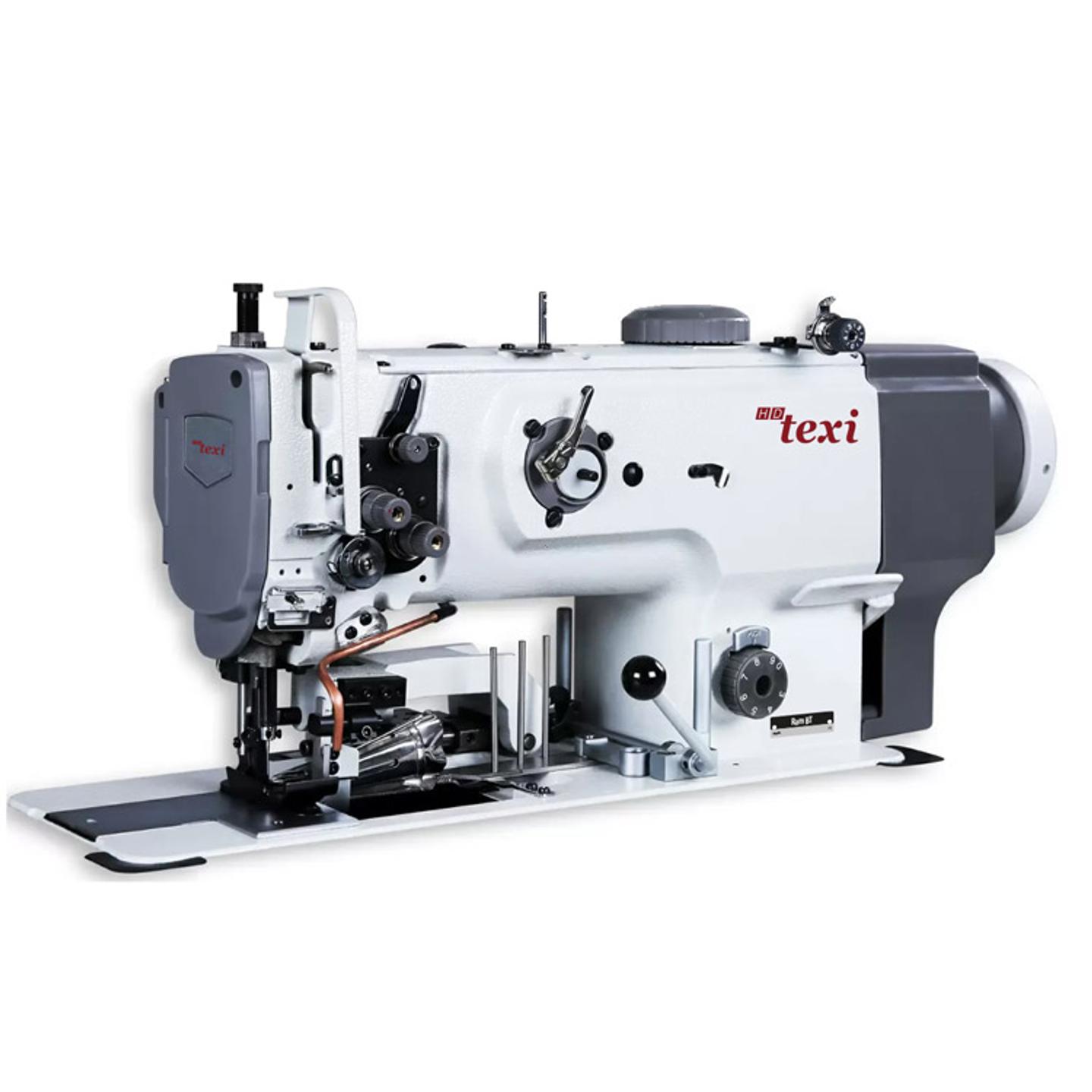

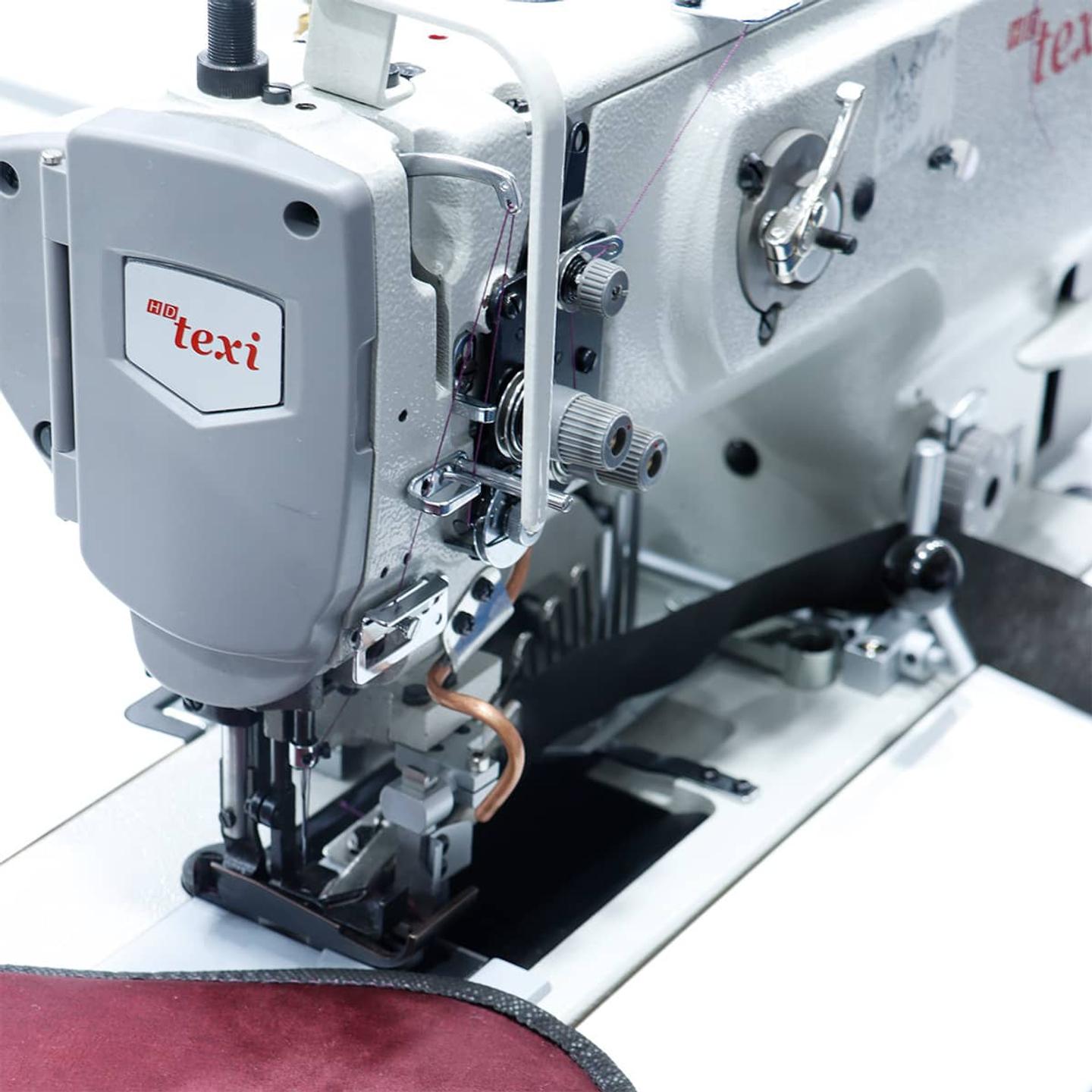

The TEXI RAM B-T is a single-needle machine with a folder and edge cutter. Equipped with unison feed, a large bobbin, and alternate foot lifting height adjustment.

The industrial sewing machine TEXI RAM B-T is designed to work with heavy materials. It allows for both leveling and edging the material edge simultaneously. Suitable for edging quilts and mattresses, for example. It features electropneumatic foot lift, centralized lubrication, and needle positioning.
The machine is equipped with a pneumatic system to assist in cooling the cutting knife and blowing away the remnants of the cut material.

j7mvzD1XX_8
Technical Specification:

- Unison feed - bottom, upper foot, and needle
- Cutting, folding, and sewing the material simultaneously
- Electropneumatic foot lift up to 16 mm
- Stitch length up to 9 mm
- Maximum foot lift height adjustment 6.5 mm
- Maximum sewing speed 2,000 stitches/min
- Clearance between the needle plate and the machine arm 25,5 cm
- Large 28 mm bobbin holder
- Centralized lubrication
- Needle system 134-35
- Internal SERVO 850W motor with direct drive, low vibration, low noise level, and low energy consumption.

Compressed air is required for machine operation.
