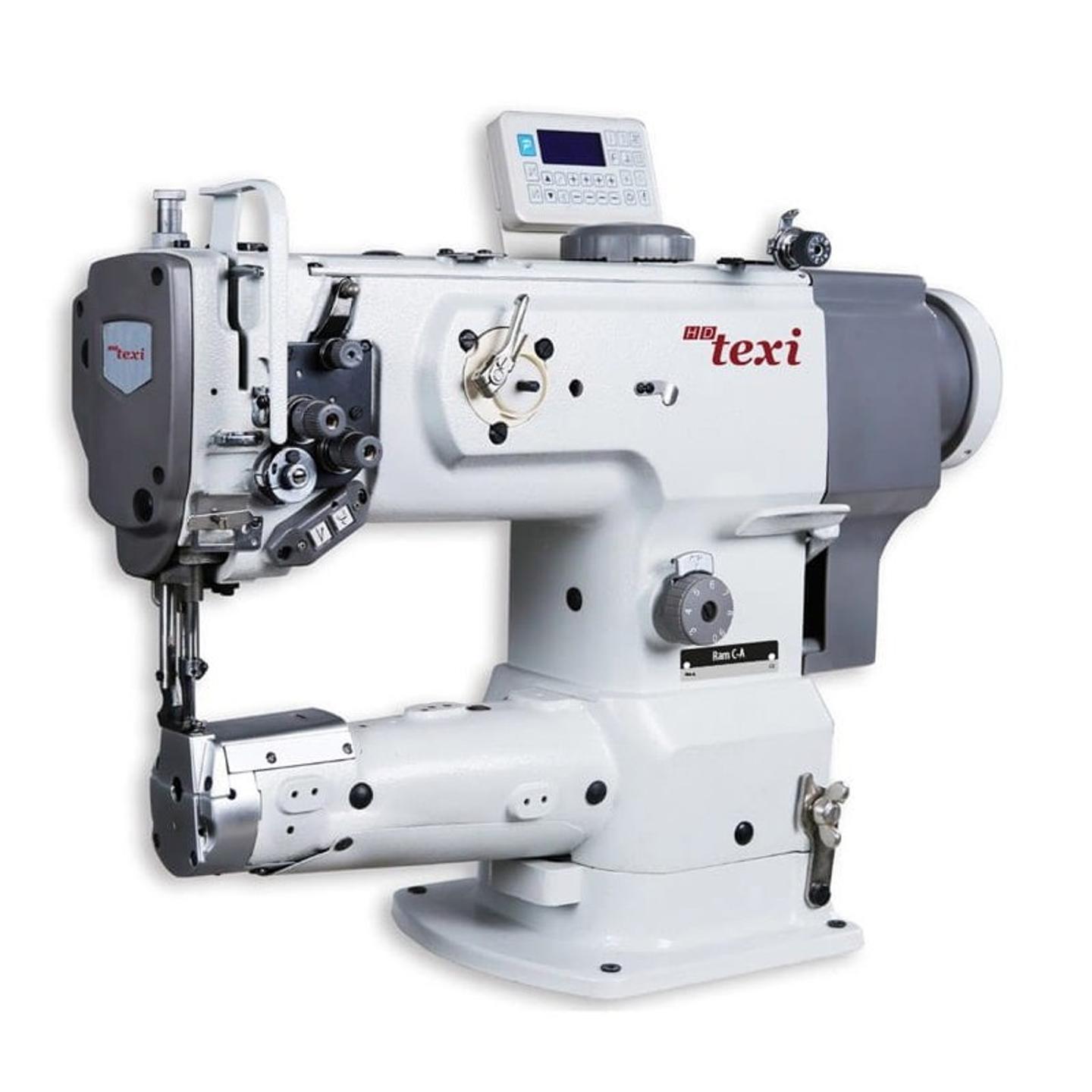

Cylindrical lockstitch machine for sewing thick materials with automation, unison feed and built-in motor - complete set

An automatic single-needle sewing machine with a cylindrical bed with a diameter of 80 mm, equipped with unison feed, adjustable foot lifting height, and a large bobbin holder for 26 mm bobbins. Equipped with an energy-efficient built-in AC Servo motor 220-240 V and needle positioning (up-down).

The machine with integrated automation - electromagnetic thread trimming, electropneumatic foot lifting, and automatic bartacking. Designed for industrial work for sewing heavy materials. The small diameter of the cylindrical bed facilitates sewing in hard-to-reach places and sewing closed circuits, so-called "sewing in the round". Ideal for upholsterers, leatherworkers, clothing manufacturers, and shoemakers.

It allows convenient sewing of various upholstery elements, wherever double stitching is used, for example: sewing footwear elements such as uppers, soles, or decorative details for reinforcing connections, sewing furniture covers, decorative cushions, or covers from heavy materials. Triple transport and adjustable foot lifting height ensure even feeding of sewn materials.

Technical Specification:
- Unison feed - bottom, upper foot, and needle
- Stitch length up to 9 mm
- Foot lifting height up to 16 mm
- Maximum foot lifting height adjustment 6.5 mm

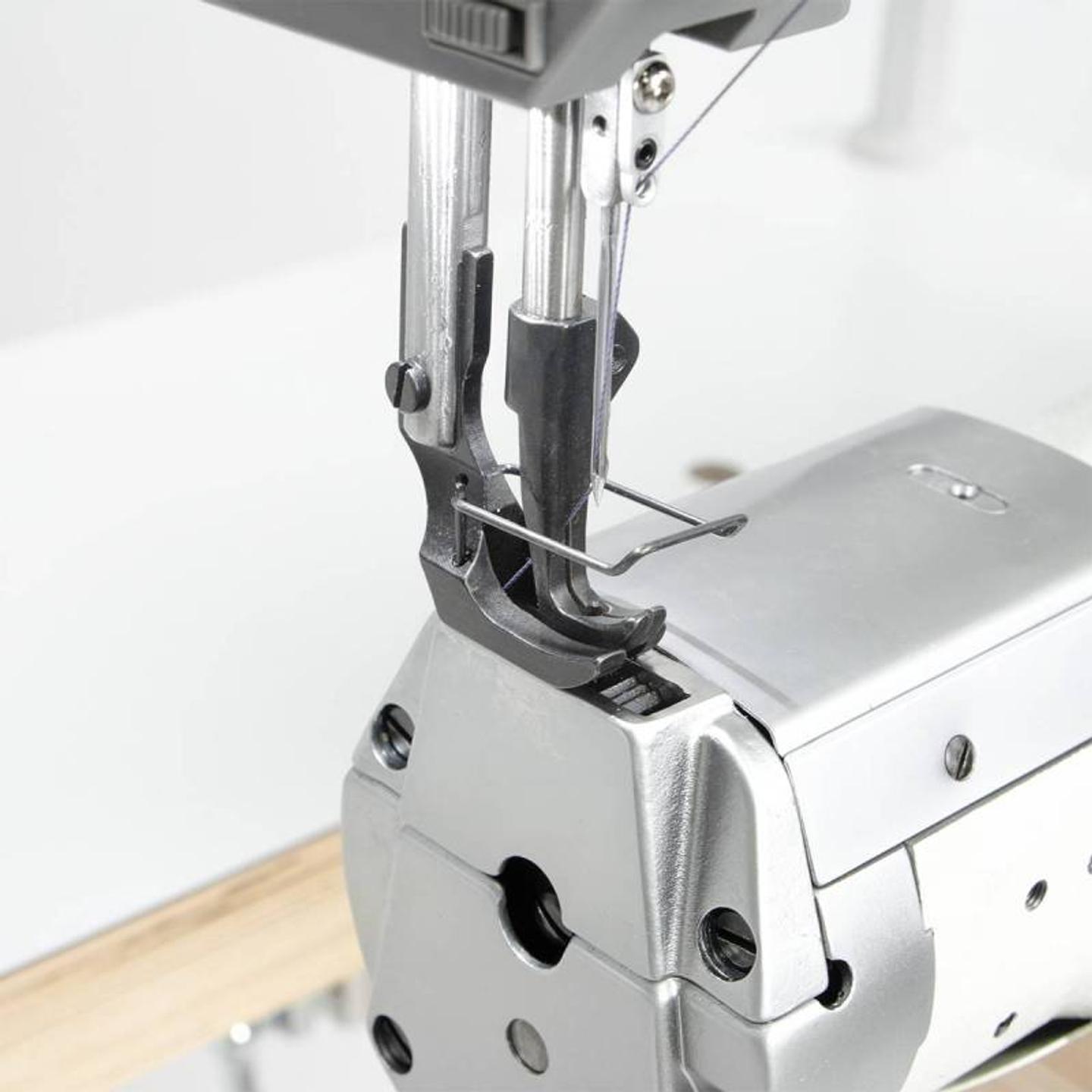

- Cylinder bed diameter 80mm
- Maximum sewing speed 2,500 stitches/min
- Clearance between the needle plate and the machine arm 25,5 cm
- Automatic needle positioning
- Large 26 mm bobbin holder
- Needle system 134-35

Compressed air is required for machine operation.
