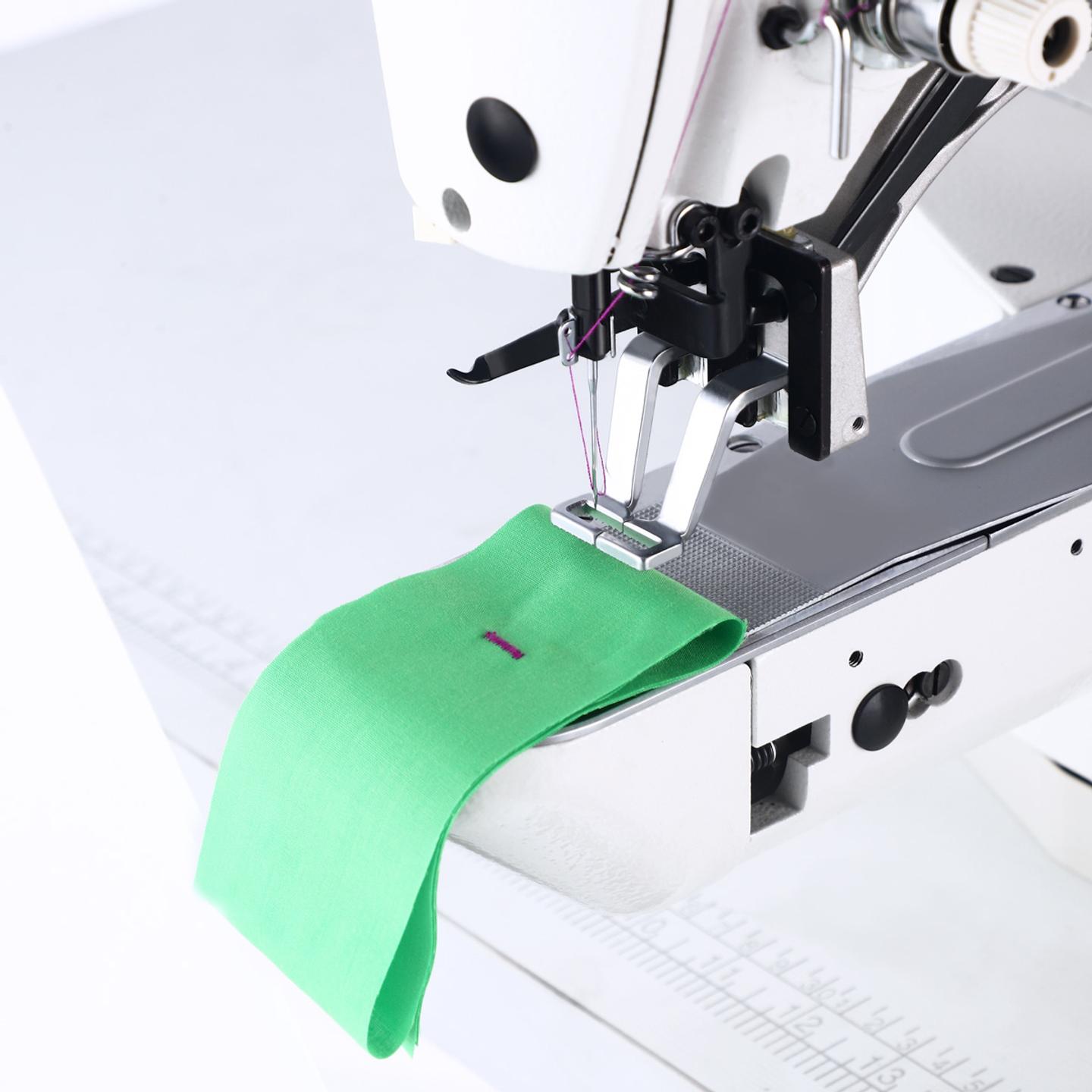

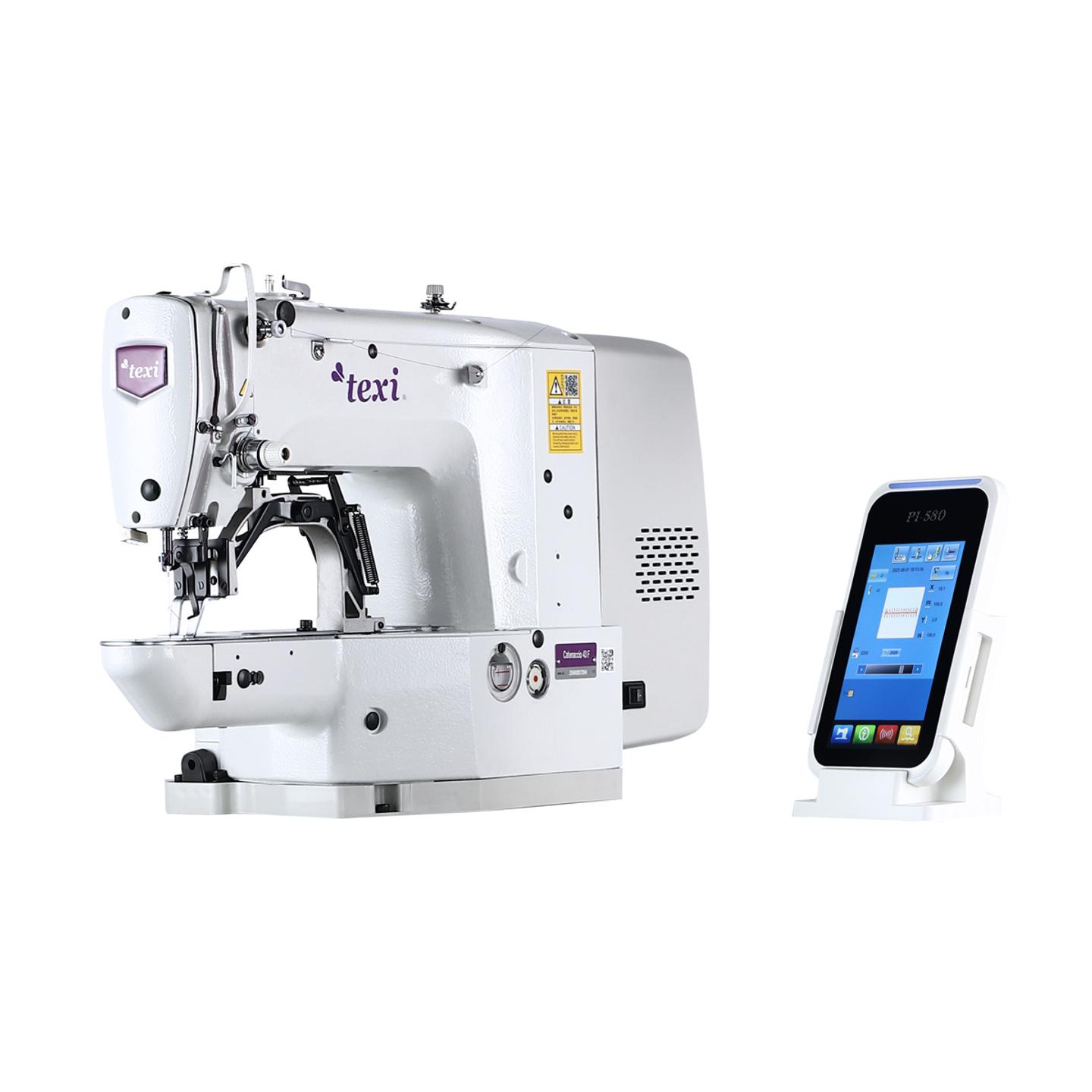

Electronic bartacker 40×30 mm – for light and medium fabrics
TEXI CATENACCIO 43F PREMIUM is an industrial electronic bartacker with a maximum sewing area of 40×30 mm, designed for light and medium fabrics. CNC control, integrated stepper motor and closed oil system provide high precision and ease of use. The LED lamp ensures bright lighting of the working area. Previous model: TEXI CATENACCIO 2.0
Technical specifications
Max sewing speed 3000 sti/min
Stitch length and width adjustable in the range of 0.1–10 mm
Feed: CNC
Included clamps: 20x3.5 mm (standard), 27x5 mm, 12x2 mm, 40x30 mm
Lubrication: central, closed circuit
Presser foot lift up to 17 mm
The machine comes with a complete set for sewing on flat 2- and 4-hole buttons using the parallel and cross methods. Sewing patterns can be programmed.
Main features
- Automatic needle positioning
- Automatic thread trimming
- Automatic presser foot lifting
- Thread wiper
- Initial stitch controller
- Built-in stepper motor
- Closed oil system
- LED lamp
- Recommended needle system 135x17
Head for self-assembly.
| Automatic thread trimming | YES |
|---|---|
| Automatic foot lifter | YES |
| Automatic needle positioning | YES |
| Automatic bartacking | NO |
| Stitch compensation button | YES |
| LED lighting of working field | YES |
| Built-in AC Servo motor | NO |
| Built-in stepper motor | YES |
| Kit | head |
| Type of feed | CNC |
| Type of sewn fabric | light and medium |
| Hook for spool [mm] | 21 |
