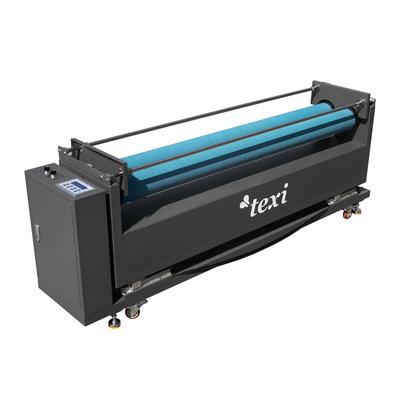

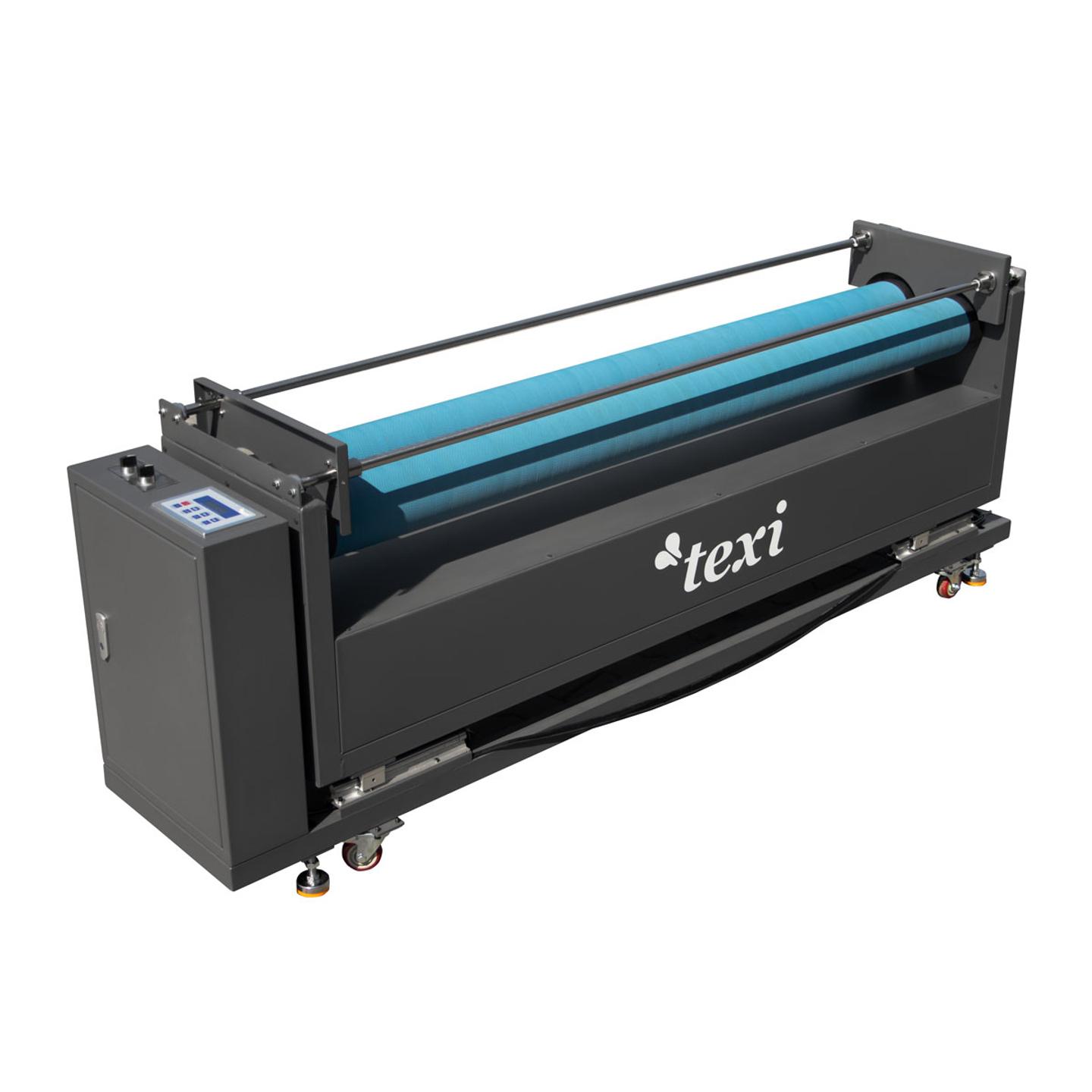

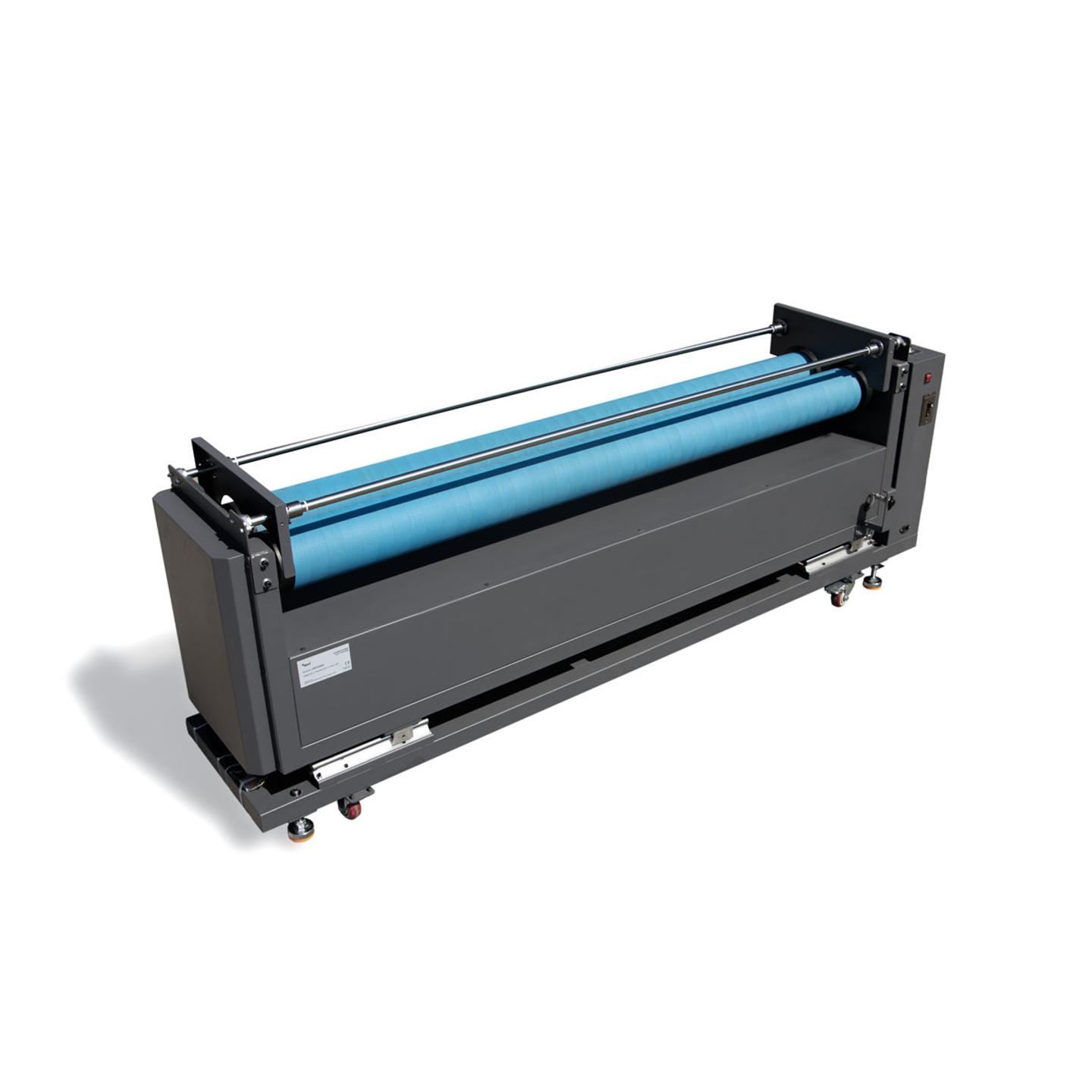

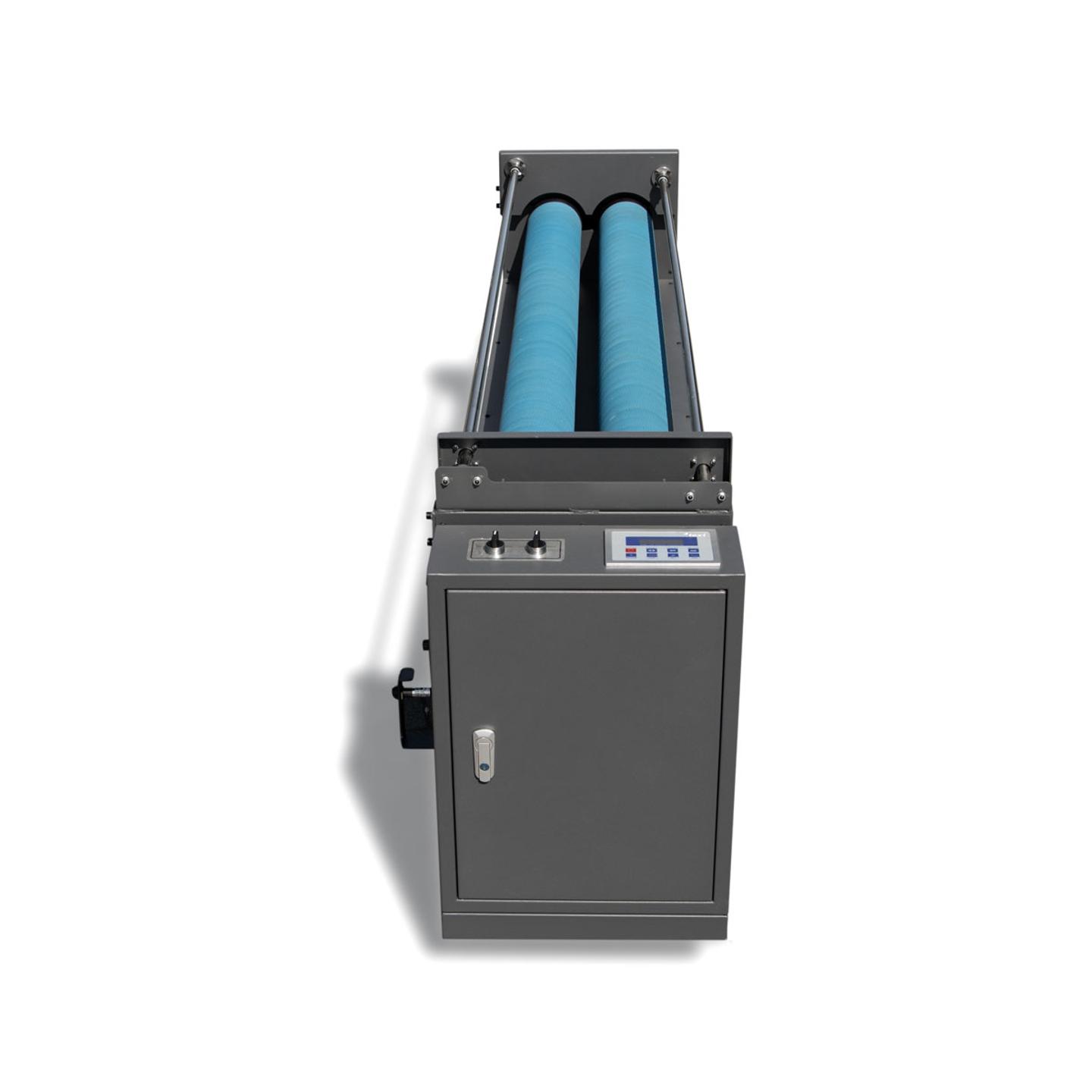

TEXI FLOW is an automatic fabric feeding device with an easy mounting system and automatic guiding correction.
Designed for use in automated cutting systems with single-layer cutters.
The TEXI FLOW device ensures stable and precise material feeding.
How does automatic fabric feeding with TEXI FLOW work?
- Easy material loading – just place the fabric roll between two rollers
- A motor-driven drum rotates the roll and feeds the fabric forward

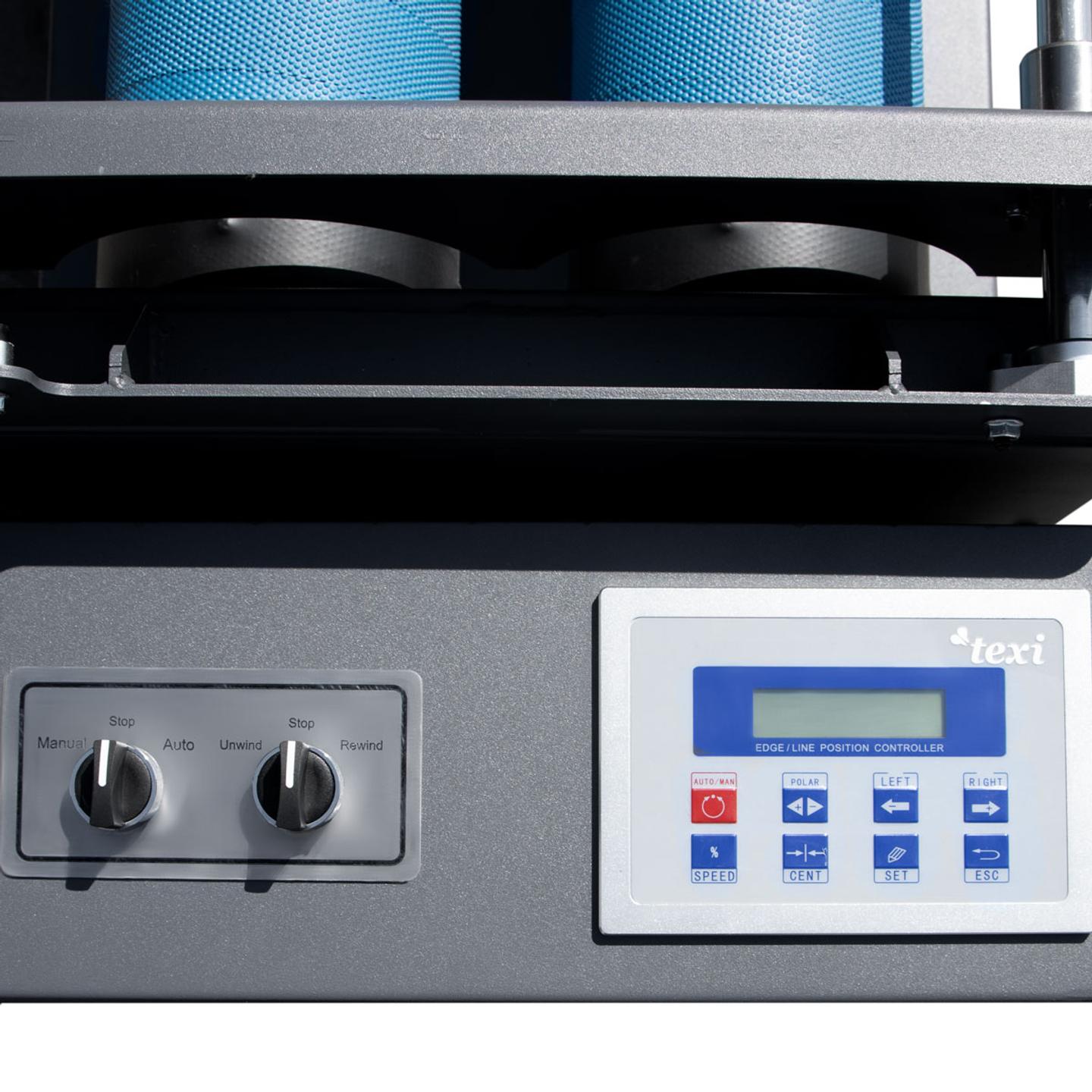

- Control – automatic motor start and stop; a photoelectric sensor detects the start and end of the cycle
- Feed path correction – the material passes through a photoelectric polarizing sensor that monitors its position and compensates for any deviation
Technical specifications of TEXI FLOW:
- Maximum fabric roll diameter – 400 mm
- Maximum fabric roll width – 1800 mm
- Correction accuracy – 5 mm
- Maximum bearing load – 80 kg
- Maximum feed speed – 350 mm/s
- Guide stroke – 150 mm
- Power – 0.4 kW
- Power supply – 220 V / 50 Hz
- Device dimensions (LxWxH) – 2270x1000x860 mm
The TEXI FLOW device is used in automatic cutting systems where precise material guidance is essential, e.g. in the textile, packaging, or electronics industries.
| Device power [W] | 400 |
|---|
