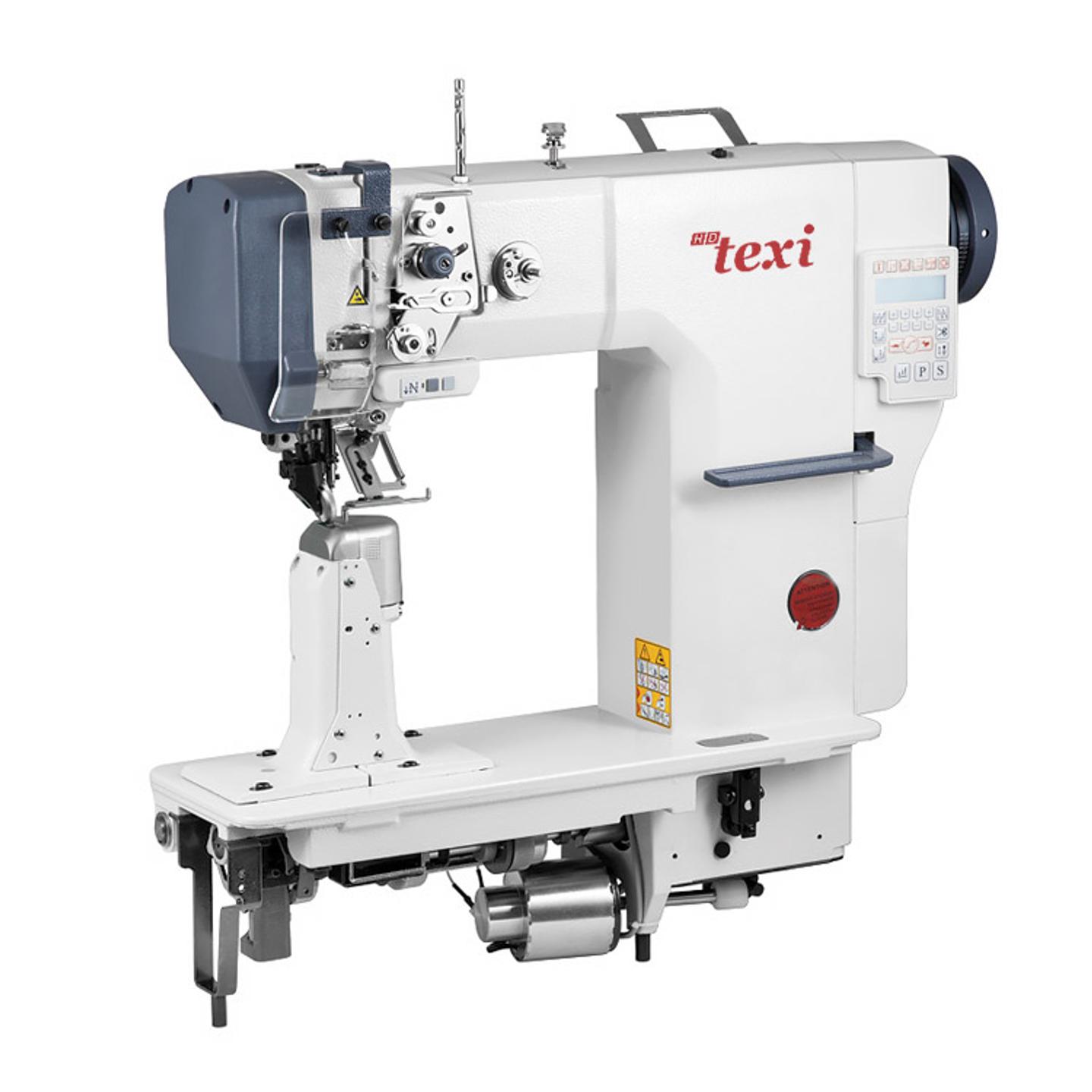

Post-bed lockstitch machine with bottom, needle and upper roller feed - head only

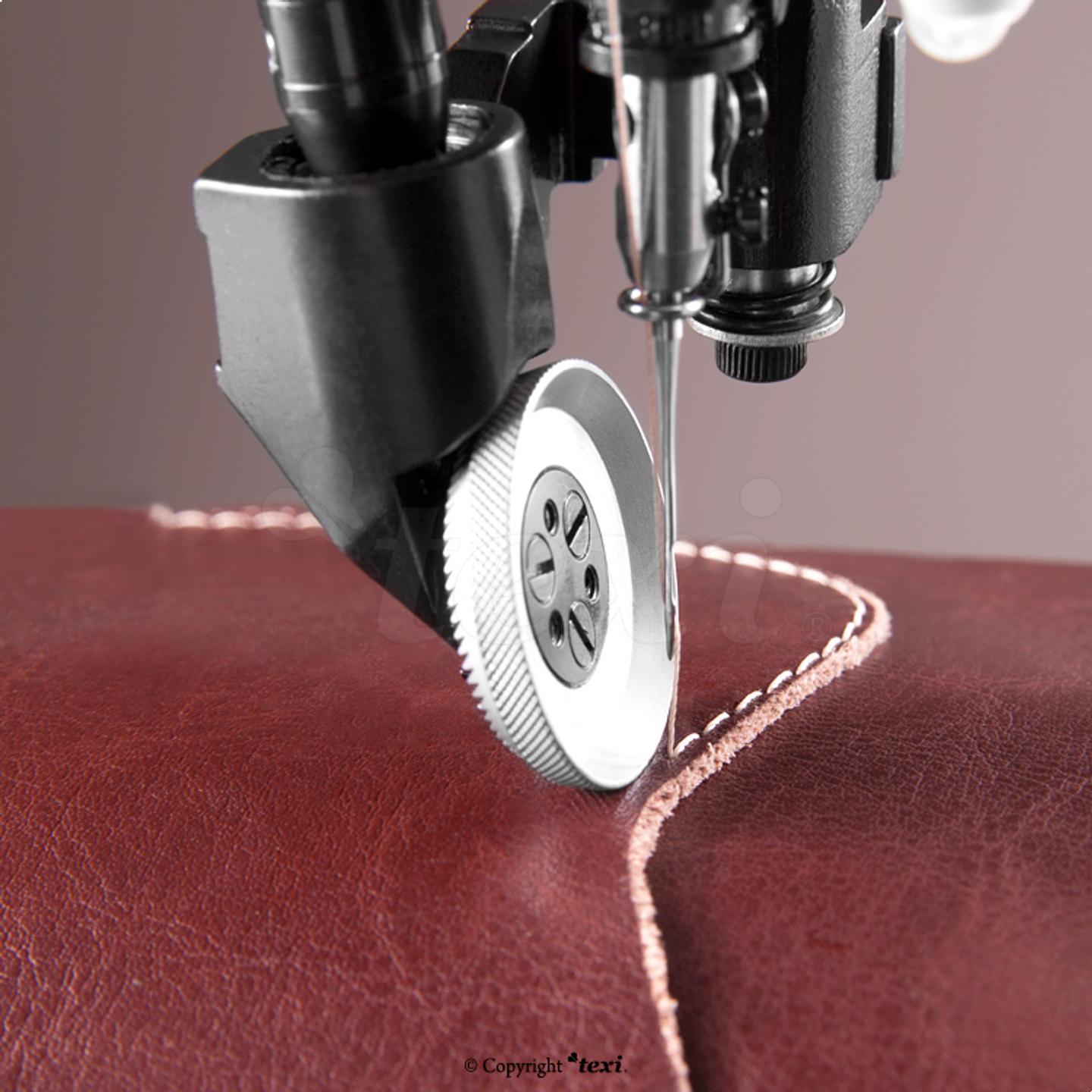

TEXI Post DD is 1-needle post-bed mechatronic "all-in-1" set lockstitch machine with bottom roller feed, needle feed and active roll presser foot (roll on the left side of the needle). With built-in energy-saving AC Servo motor. Serial equipped with automatic functions and integrated 3-degree, energy-saving LED lamp for lighting of working field.

For sewing medium and heavy materials. Designed for sewing in hard to get places in production of sports and leather shoes, fancy leather goods etc.

Thanks to integration of all elements the machine works quietly and without adverse vibrations. AC Servo motor saves up to 70% energy comparing to a conventional electronic motor or clutch motor.

Technical specification:
- for sewing medium and heavy fabrics
- bottom roller feed, needle feed and active roll presser foot
- max. stitch length 4.5 mm
- foot lifting up to 7 mm (hand lifter) or 10 mm (knee lifter)
- max. sewing speed 3.000 s.p.m.
- integrated 3-degree energy-saving LED lamp
- post height 17 cm
- built-in, energy-saving AC Servo 750 W motor
- voltage 220-240V
- central lubrication
- needle system 135x5 or 135x5 SERV7, with correct needle points, depending on the fabric.
- automatic functions: electromagnetic thread trimmer, electromagnetic foot lifter, reverse feeding with programmed size of the initial and final bartack, needle positioning, programming control panel.

1 year full warranty.

Enjoy the silence, save energy.

Head for self-assembly
