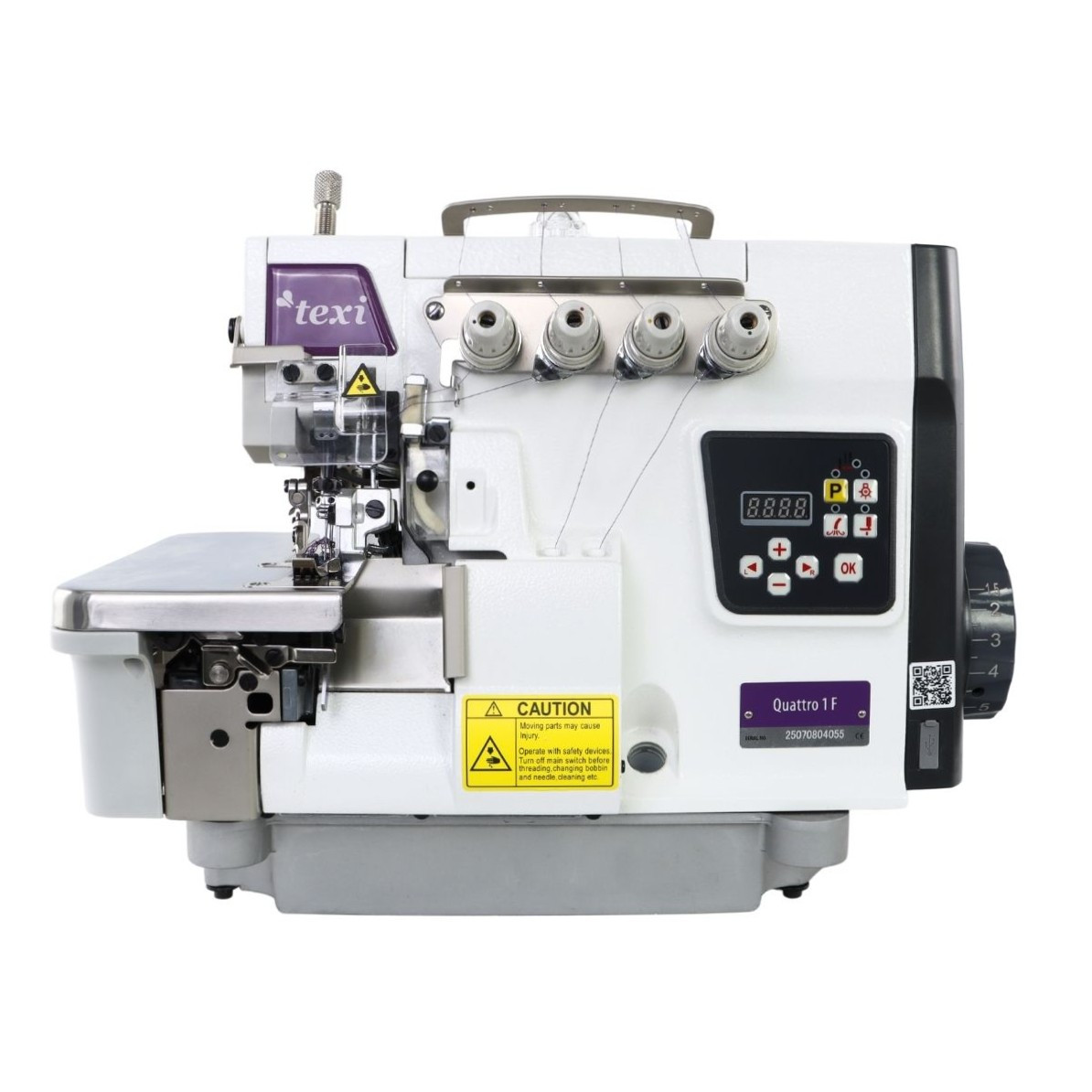

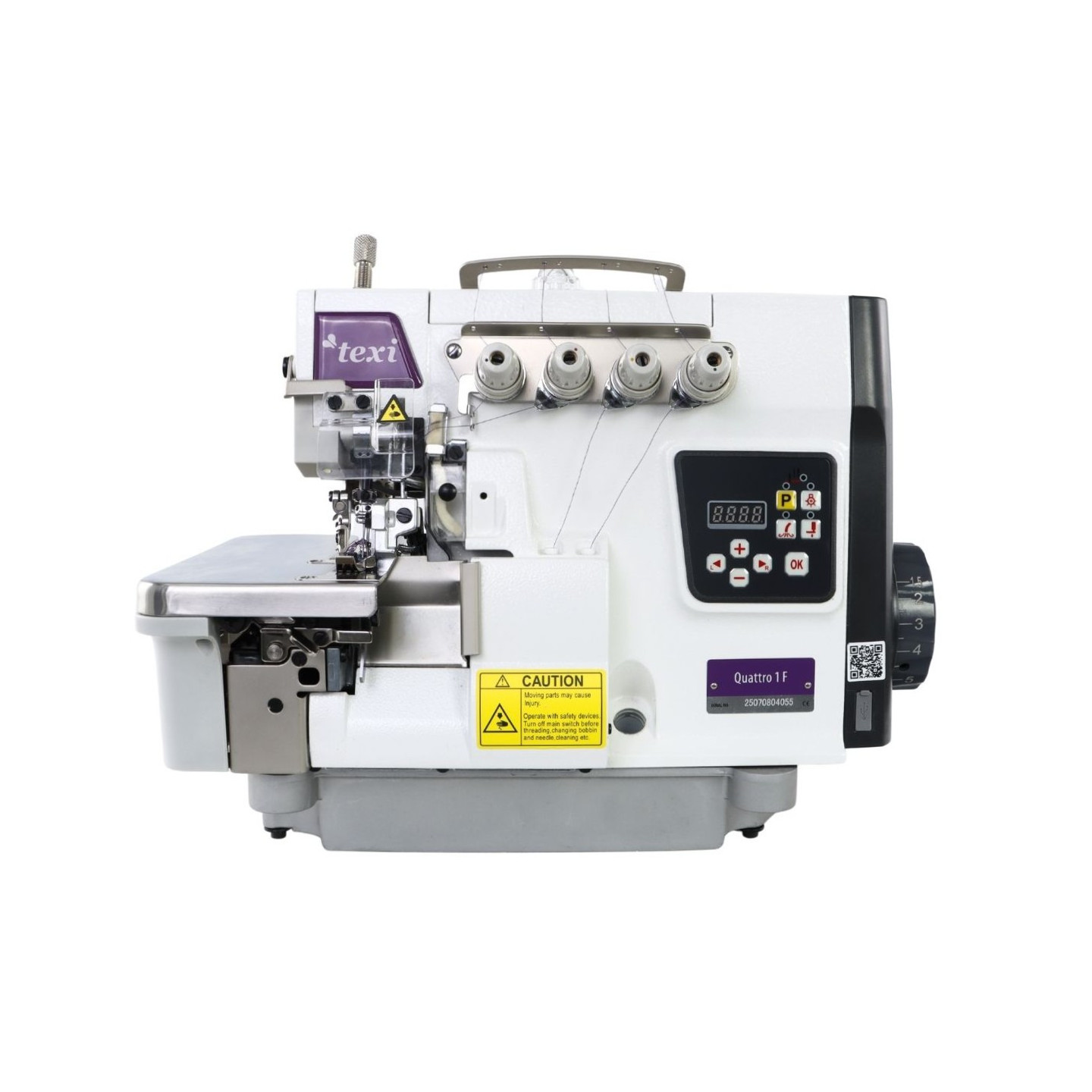

Overlock 2-needle, 4-thread TEXI QUATTRO 1F - head only

Industrial four-thread two-needle overlock machine from TEXI FUTURE series – for light and medium fabrics

TEXI QUATTRO 1F is an industrial overlock machine with four threads and two needles, equipped with differential feed, designed for sewing light and medium fabrics. The integrated AC Servo motor ensures quiet, stable operation without vibrations. The closed oil system keeps the sewing process clean, while the LED lamp precisely lights the working area.

TEXI QUATTRO 1F is the successor to the model: TEXI QUATTRO 24 N

Technical specifications

Max sewing speed 6000 sti/min, adjustable stitch length 0.8–4 mm, max stitch width 6 mm. Feed: differential. Lubrication: central, closed circuit. Presser foot lift up to 6 mm. Needles: system B27.

Main features

• Automatic needle positioning
• Differential feed
• Built-in AC Servo motor
• Closed oil system
• LED lamp
• Recommended needle system B27

Head for self-assembly.
