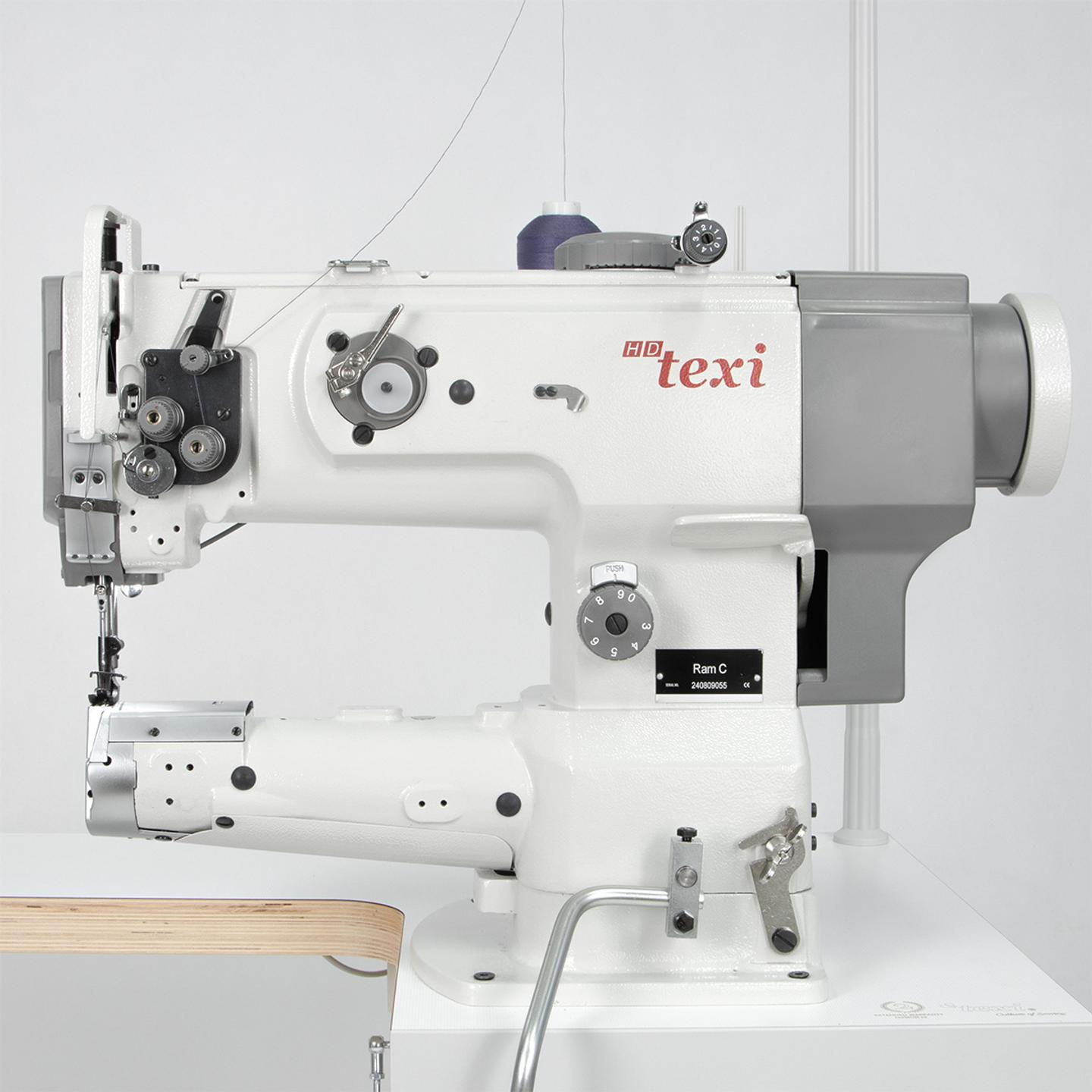

Cylinder lockstitch machine for sewing heavy materials with unison feed and built-in motor - head only

Single-needle cylindrical bed sewing machine with an 80 mm diameter, equipped with unison feed, adjustable presser foot lift, and a large 26 mm capacity hook. Powered by an energy-efficient built-in AC Servo motor rated at 220-240 V and featuring needle positioning (up-down).

This sewing machine is intended for industrial use, particularly for sewing thick materials. The small diameter of the cylindrical bed facilitates sewing in hard-to-reach areas and sewing closed circuits, known as "continuous sewing." It is ideal for upholsterers, leatherworkers, producers of leather clothing, and footwear. It enables comfortable sewing of various upholstery elements such as cushions, backrests, or armrests, as well as the production of leather bags and wallets.

Technical Specification:

- Unison feed - bottom, upper presser foot, and needle
- Stitch length up to 9 mm
- Presser foot lift height up to 16 mm
- Maximum presser foot height adjustment 6.5 mm
- Cylinder bed diameter 80mm
- Maximum sewing speed 2,500 stitches/min
- Clearance between the needle plate and the machine arm 25,5 cm
- Automatic needle positioning
- Large 26 mm capacity hook
- Needle system 134-35
