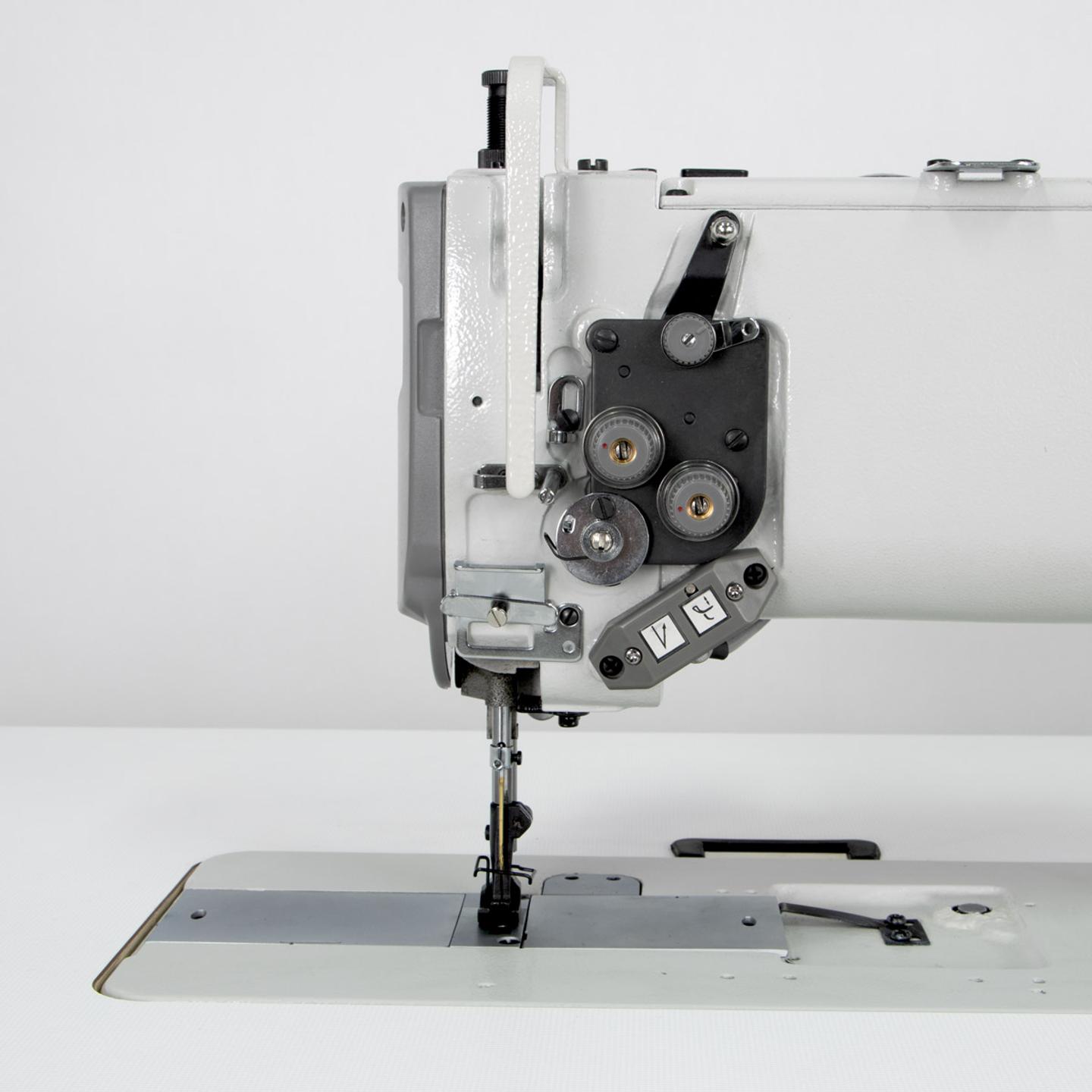

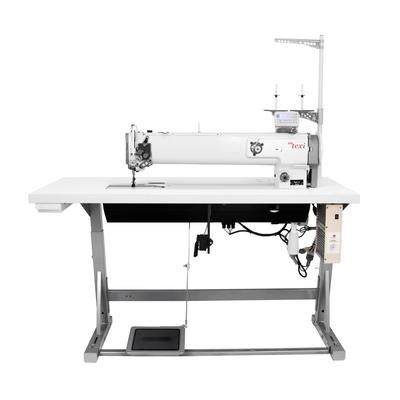

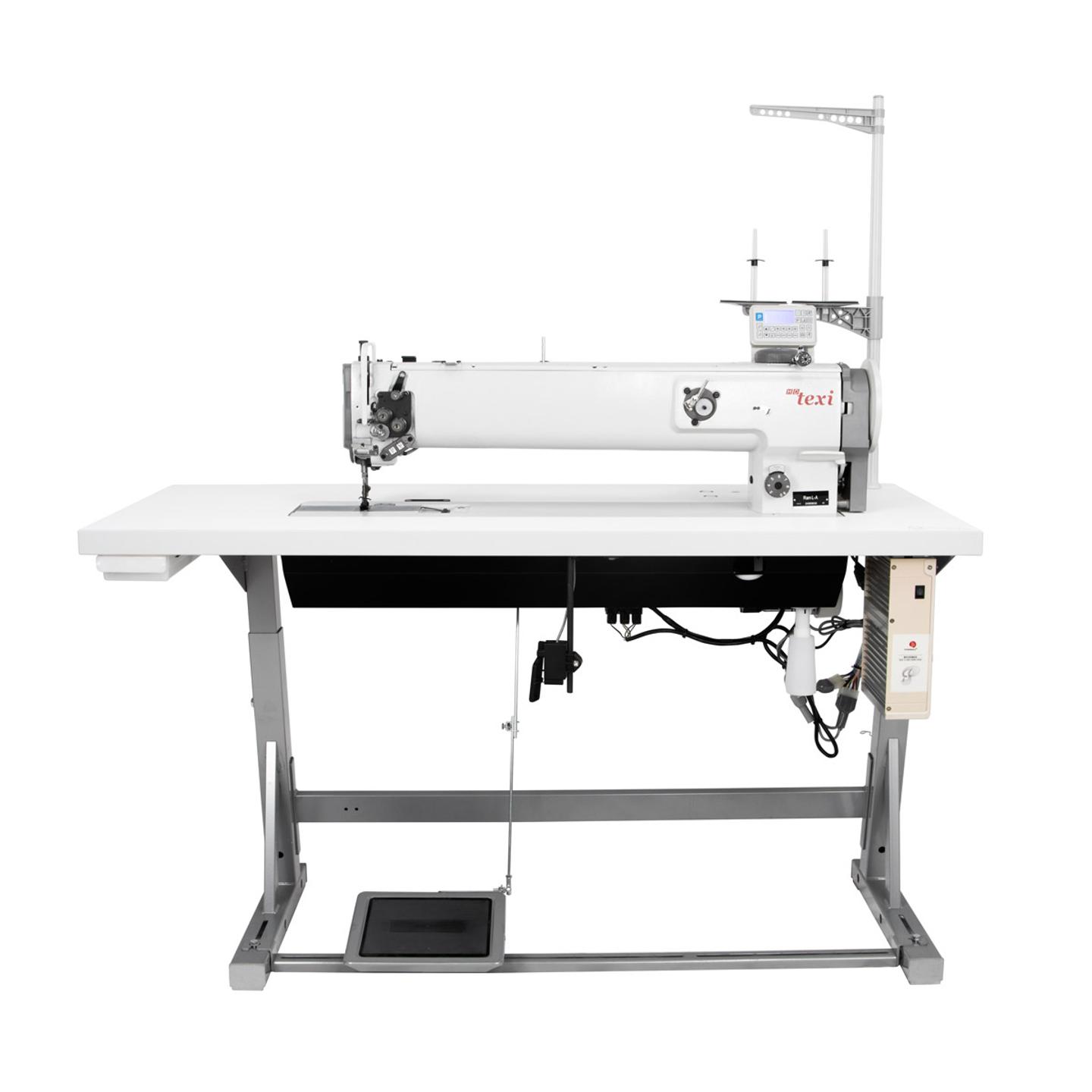

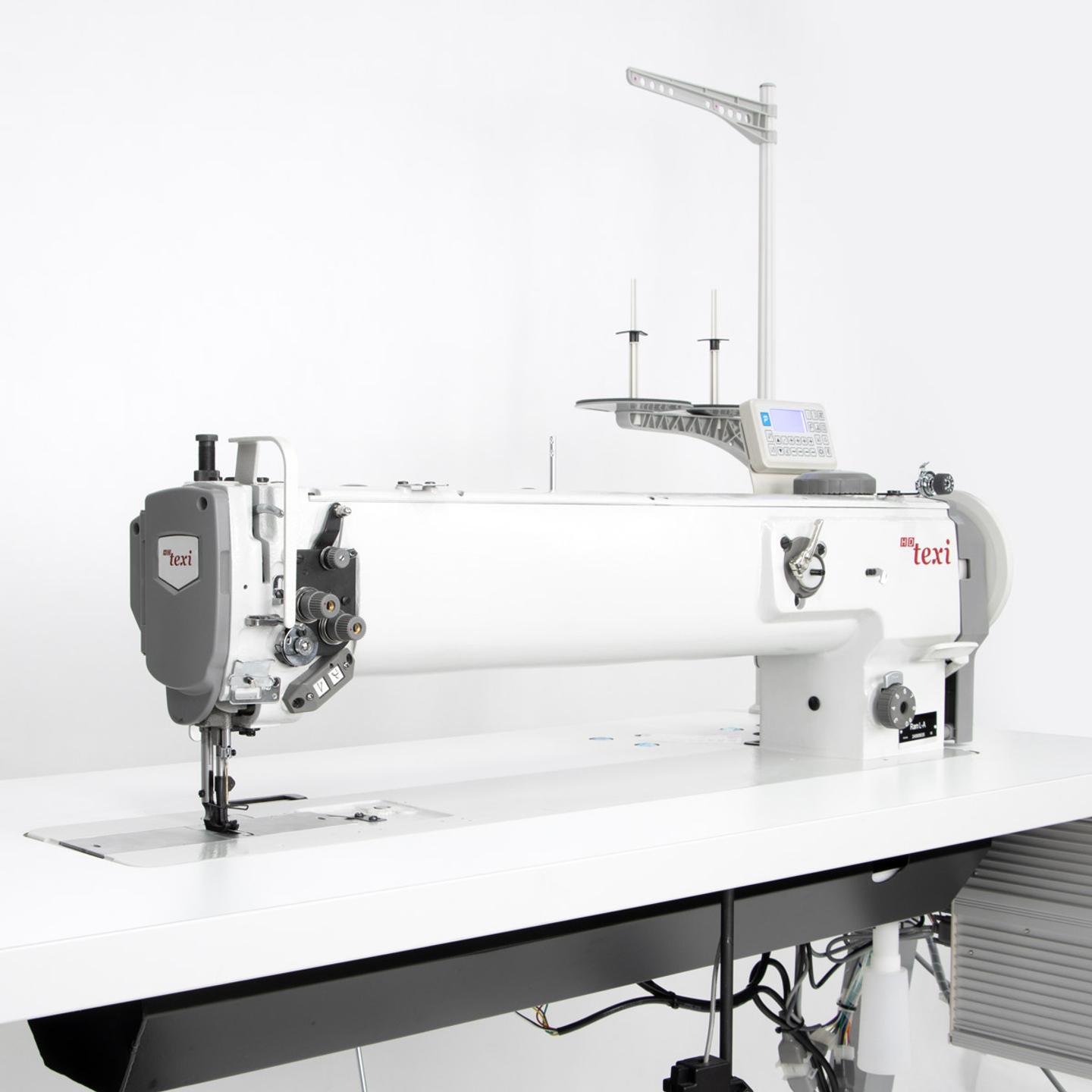

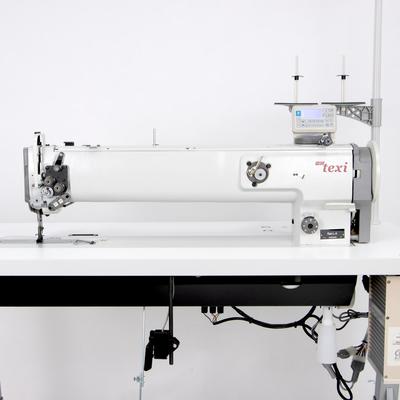

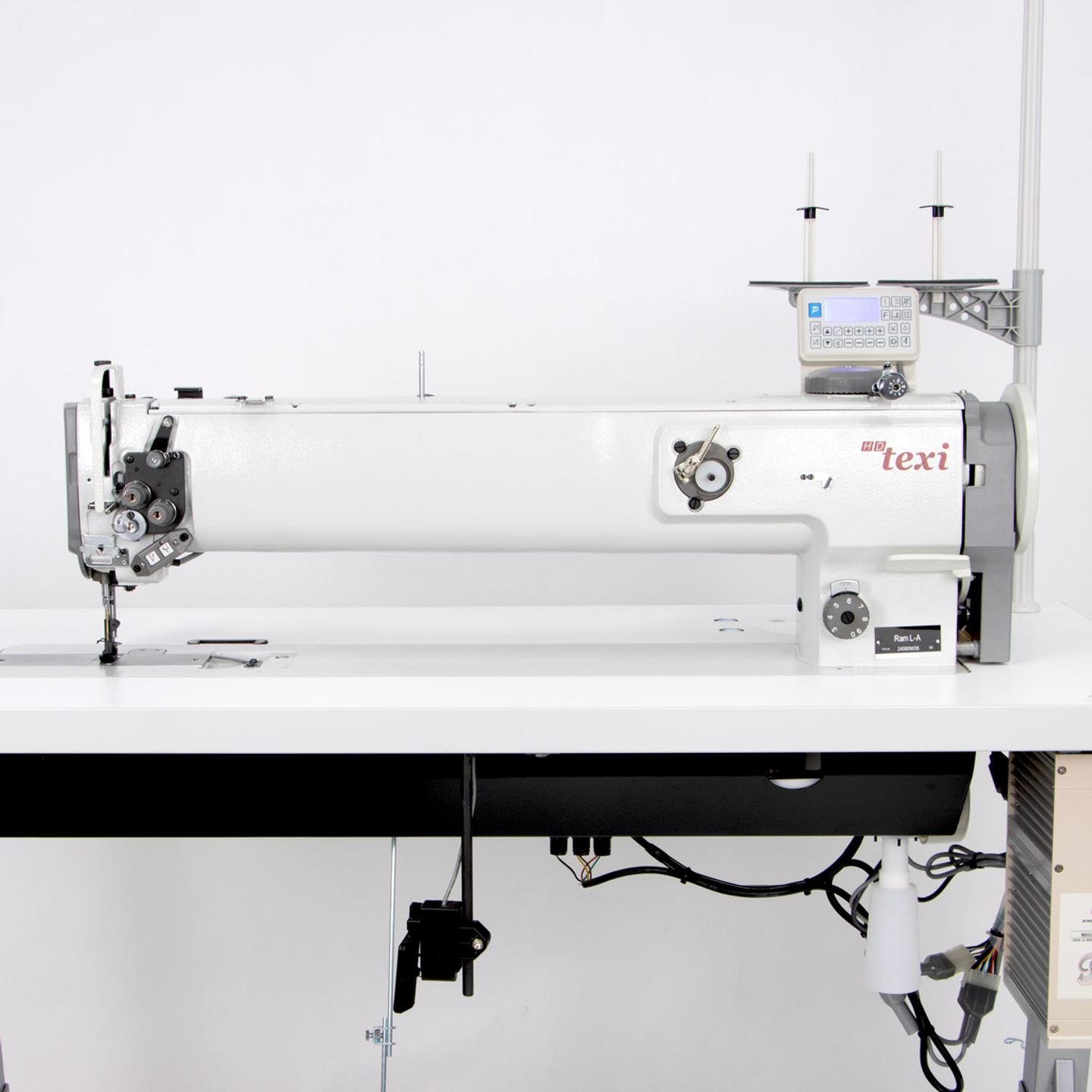

Automatic heavy duty long arm lockstitch sewing machine with unison feed - complete set

TEXI RAM L-A is an automatic single-needle sewing machine for medium and heavy-duty tasks with an enlarged working area of 635 mm, featuring automatic functions, unison feed, and a large bobbin.

The industrial sewing machine TEXI RAM L-A boasts a working area of up to 63,5 cm in length, making it suitable for even the most challenging conditions when sewing very wide materials. It comes with integrated automation features - electromagnetic thread trimming, electropneumatic foot lift, and automatic locking.

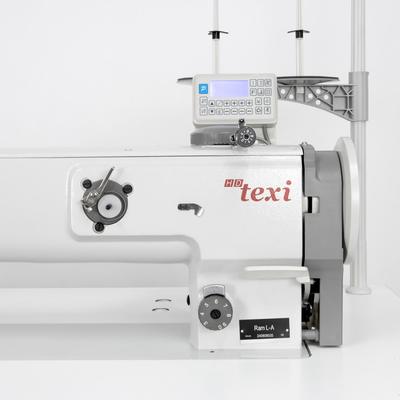

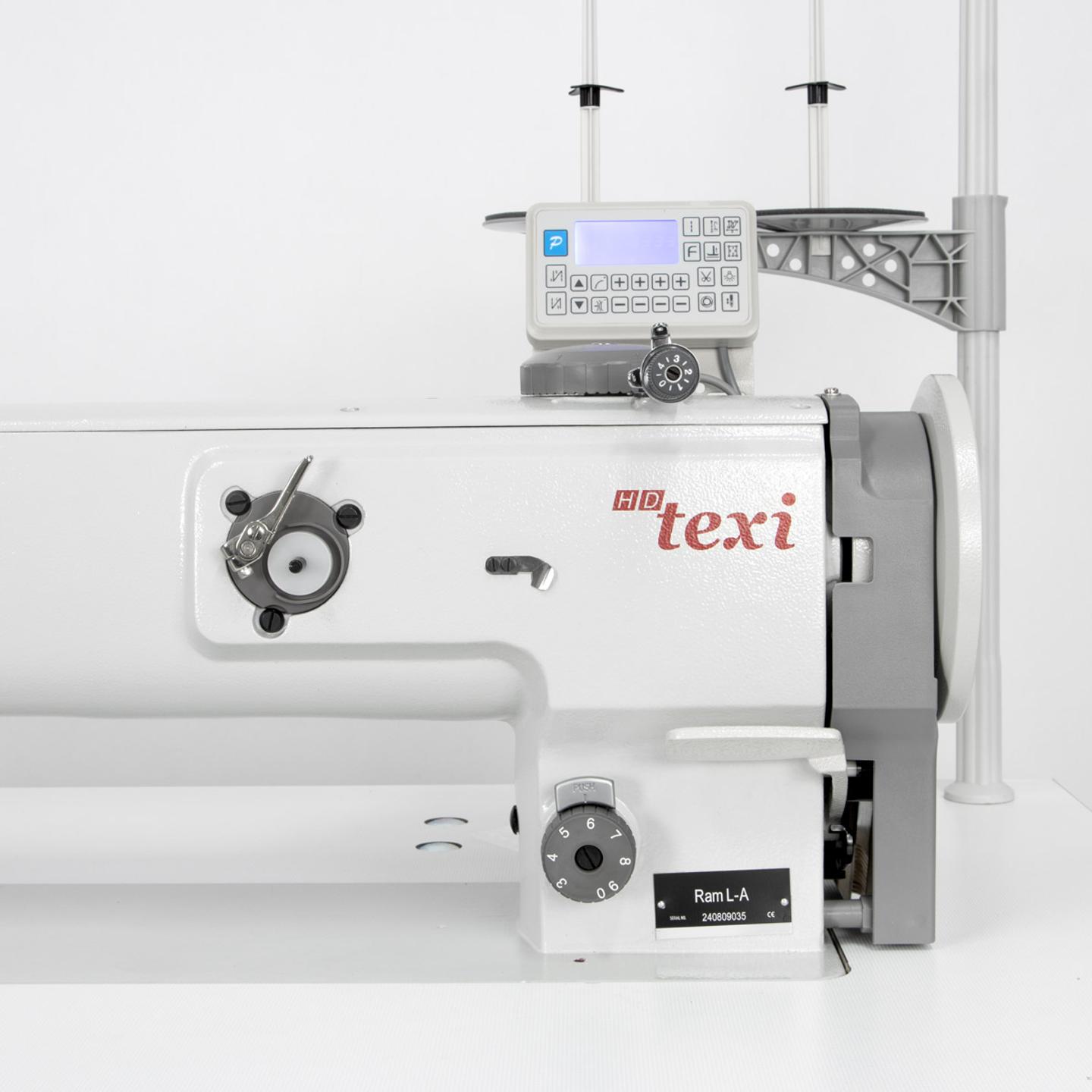

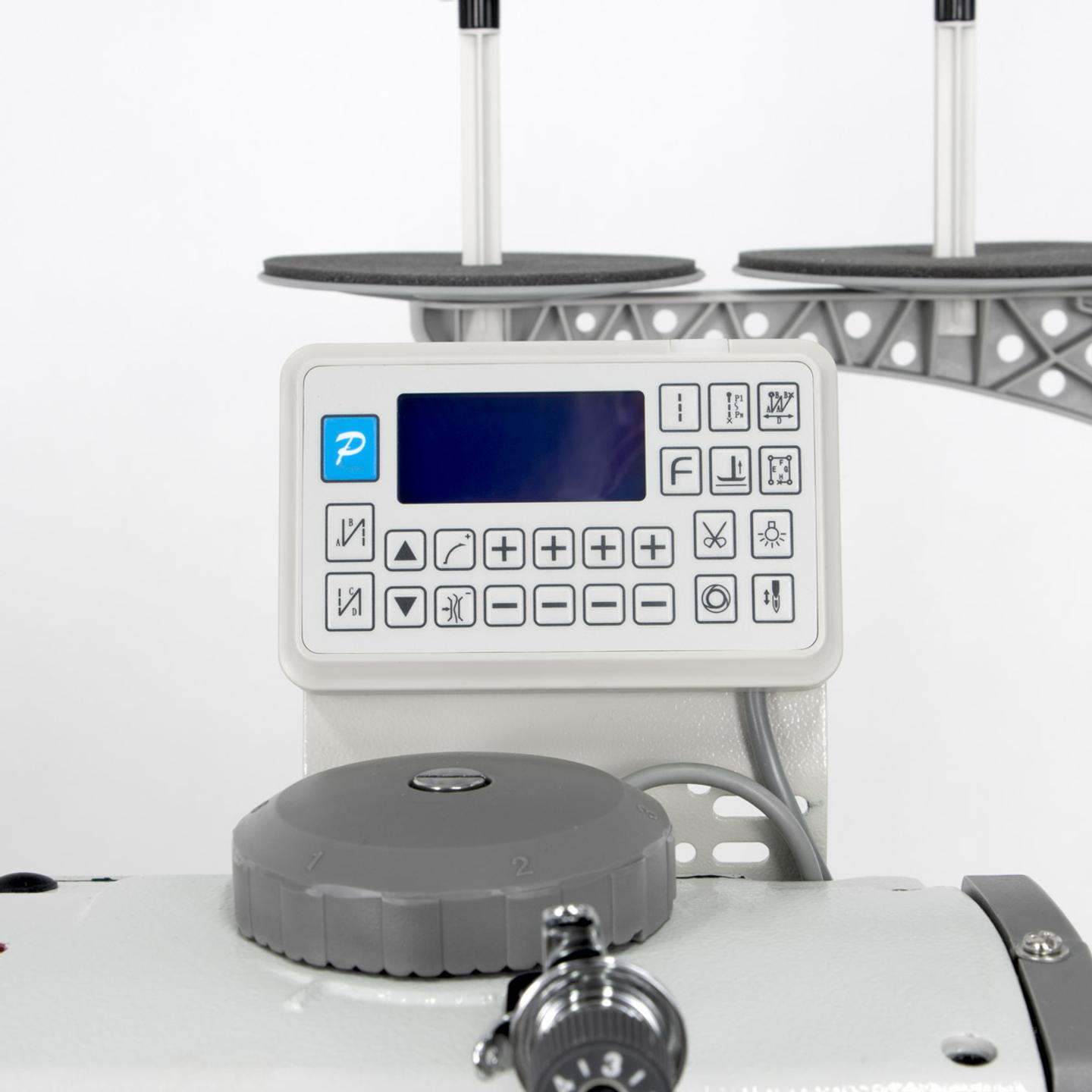

TEXI RAM L-A is a single-needle lockstitch machine with unison feed, automatic needle positioning (up and down), adjustable foot lift height, and a bobbin capacity for large spools of 28 mm. The machine sews stitches with a maximum length of up to 9 mm at a maximum sewing speed of 2000 stitches per minute. The walking foot raises to a height of up to 16 mm. Equipped with centralized lubrication and an energy-efficient AC Servo motor rated at 220-240 V. It features an intuitive control panel and integrated LED workspace lighting.

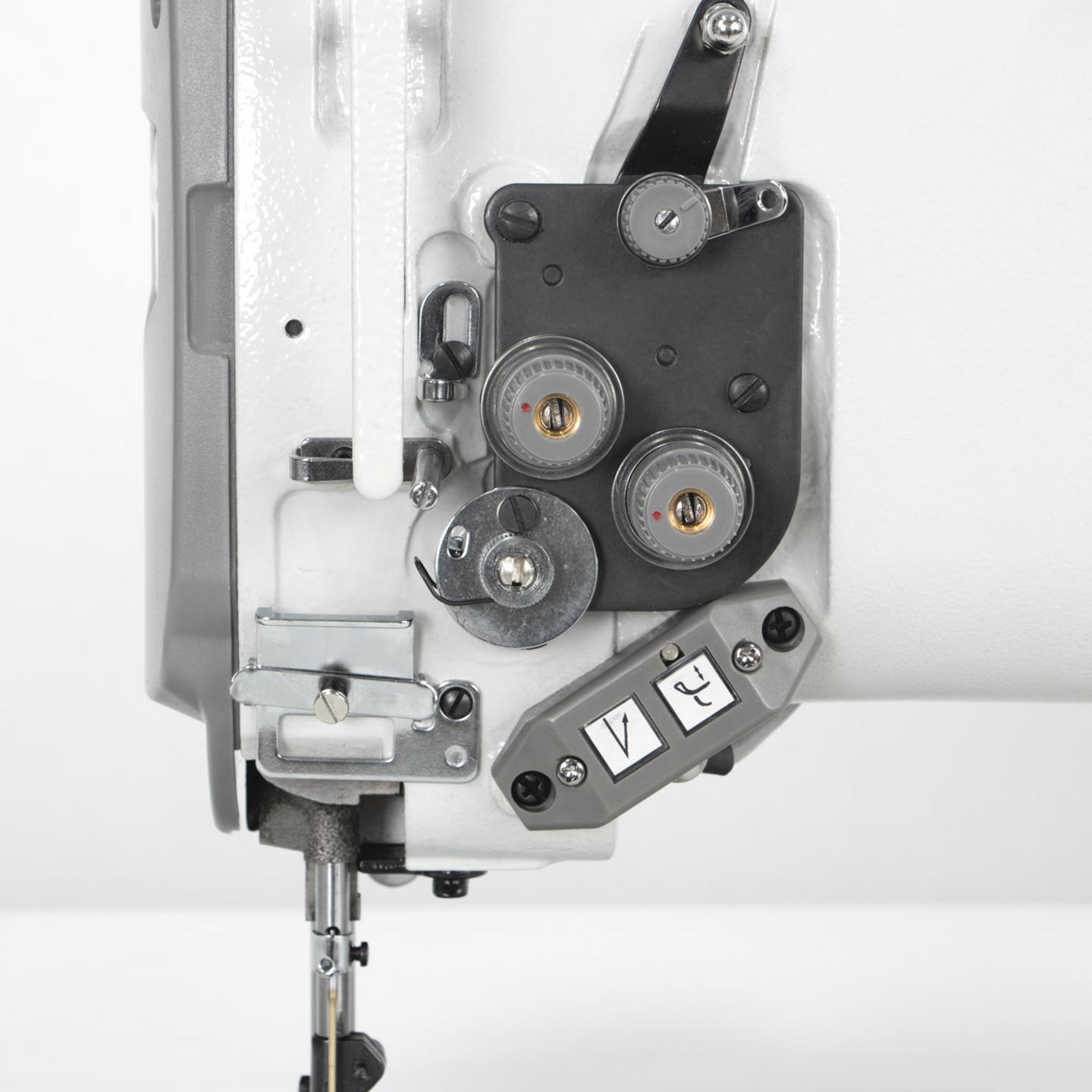

TEXI RAM L-A stands out not only for its large workspace but also for additional quick access buttons, responsible for automatic front/back locking, foot lift adjustment, stitch length change to short, and release of upper thread tension.

The TEXI RAM L-A sewing machine is an ideal tool for upholsterers, leather craftsmen, leatherwear manufacturers, mattress producers, and manufacturers of large tarpaulins who require a sturdy, efficient, and precise tool for handling wide materials on an industrial scale. It is very suitable for sewing large surface area canvas or polyester elements, such as event tents, warehouse tents, and covers for market stalls, which require robust seams and resistance to atmospheric conditions.

Technical Specification:

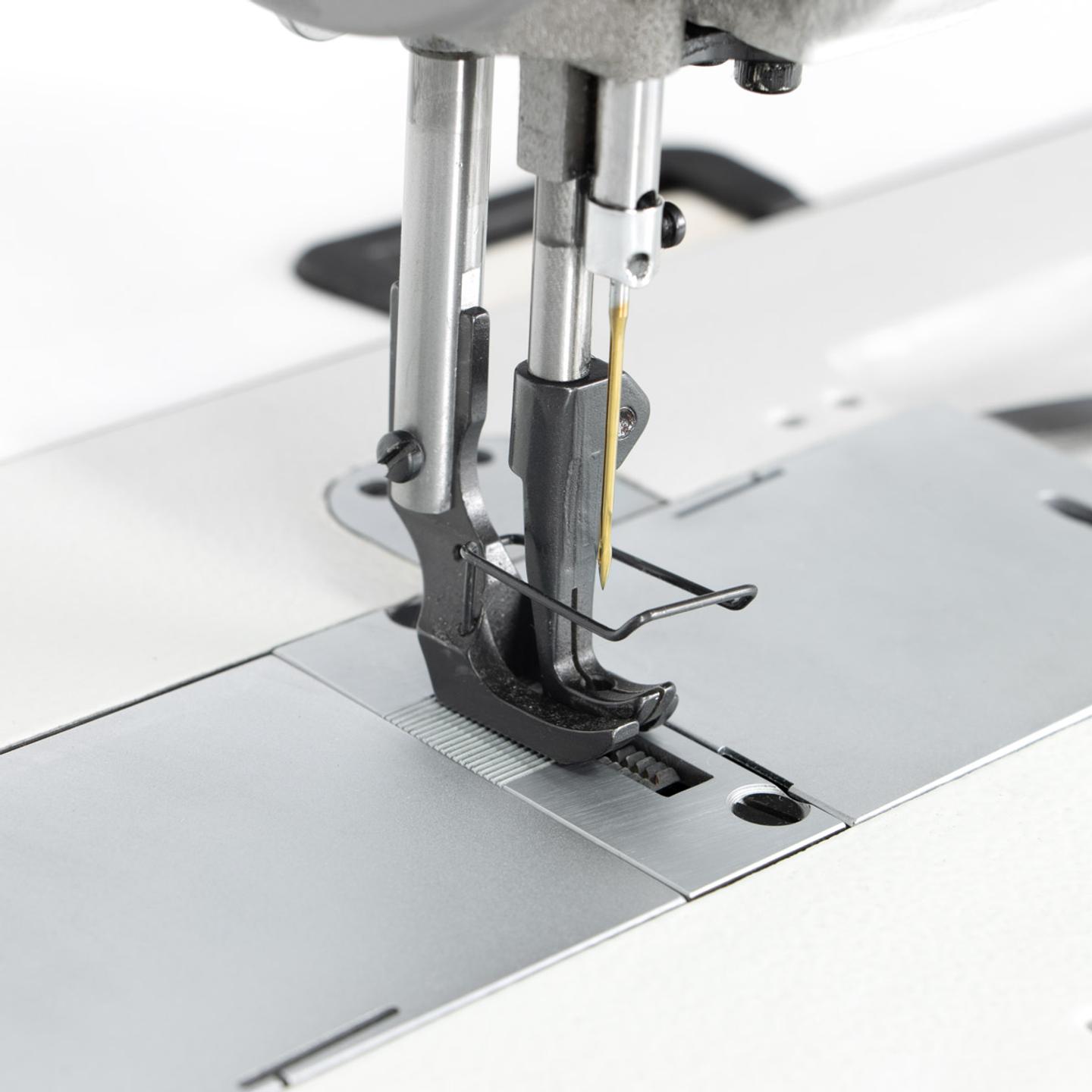

- Unison feed - bottom, upper foot, and needle
- Electropneumatic foot lift up to 16 mm
- Stitch length up to 9 mm
- Maximum foot lift height adjustment 6.5 mm
- Maximum sewing speed 2,000 stitches/min
- Automatic thread trimming
- Automatic locking
- Automatic needle positioning
- Large 28 mm bobbin holder
- Clearance between the needle plate and the machine arm up to 65 cm
- Needle system 134-35
- Automatic machine lubrication system

Compressed air is required for machine operation.
