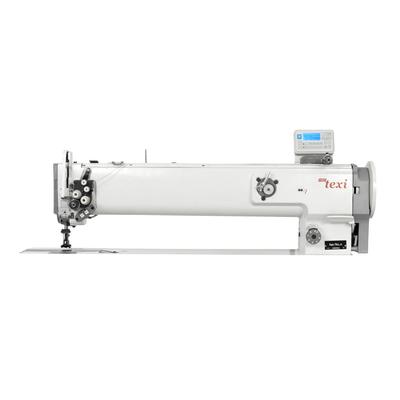

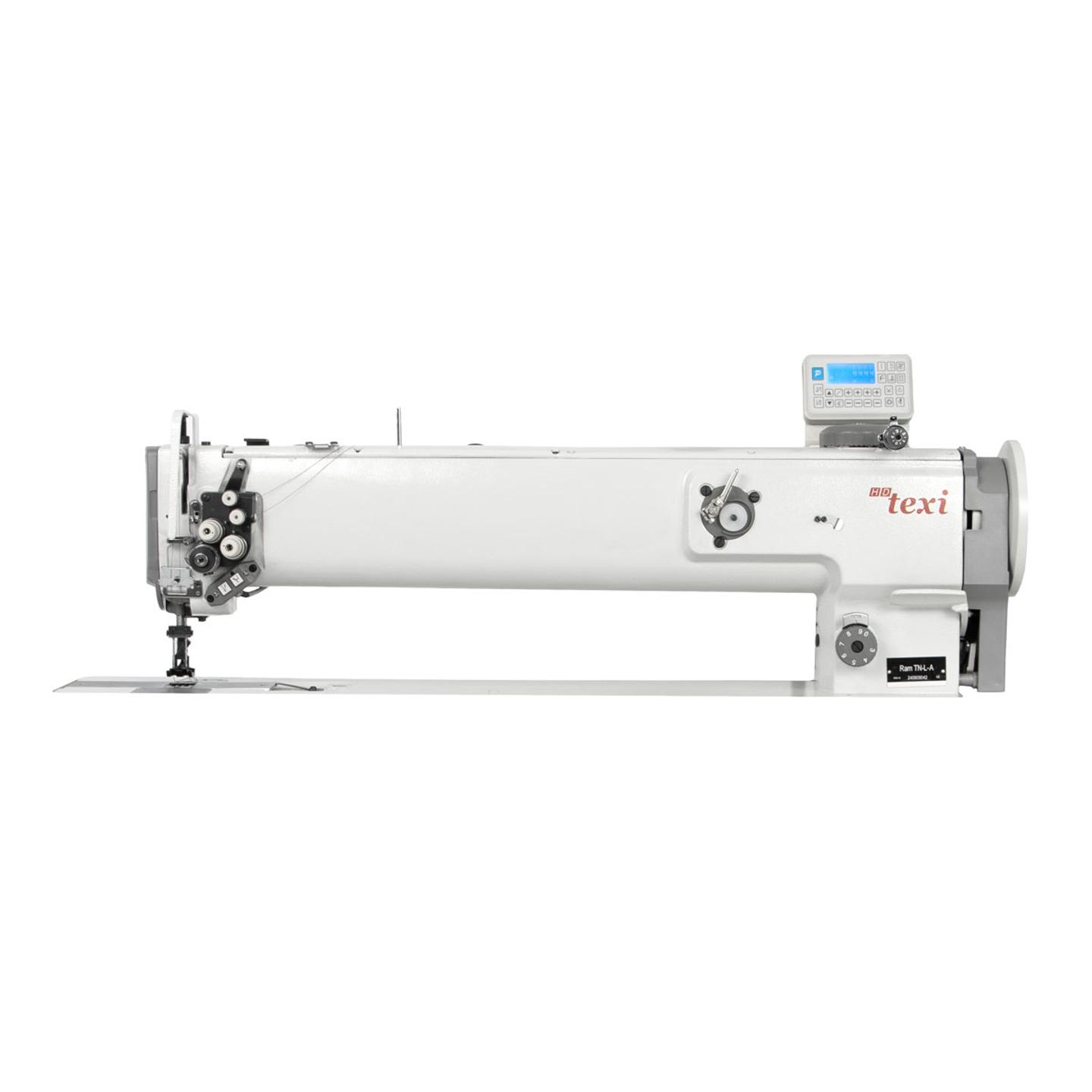

Automatic twin needle long arm heavy duty lockstitch sewing machine with unison feed - head only

TEXI RAM TN-L-A is a twin needle sewing machine for medium and heavy-duty tasks with an enlarged working area of 635 mm and automatic functions, triple transport, and a large bobbin.

The industrial sewing machine TEXI RAM TN-L-A features a working area of up to 635 mm in length, making it suitable for even very large sewing tasks. It comes with integrated automation features - electromagnetic thread trimming, electropneumatic foot lift, and automatic locking.

TEXI RAM TN-L-A is a double-needle lockstitch machine with unison feed and automatic needle positioning (up and down), adjustable foot lift height, and a bobbin capacity for large spools of 28 mm. The machine sews stitches with a maximum length of up to 9 mm at a maximum sewing speed of 2000 stitches per minute. The foot lift in the machine can be raised up to 16mm. Equipped with centralized lubrication and an energy-efficient AC Servo motor rated at 220-240 V. The sewing machine features an intuitive control panel and integrated LED workspace lighting.

TEXI RAM TN-L-A stands out not only for its large workspace but also for additional quick access buttons, responsible for automatic front/back locking, foot lift adjustment, stitch length change to short, and release of upper thread tension.

The TEXI RAM TN-L-A sewing machine is designed for industrial use, for sewing medium and heavy materials. Ideal for upholsterers, leather craftsmen, automotive upholsterers, and manufacturers of large tarpaulins, and even for making durable travel bags and suitcase parts, where double stitching provides additional durability.

Technical Specification:

- Two needles with a standard 12 mm spacing (6, 8, 10, 14 mm spacing available on request)
- Unison feed - bottom, upper foot, and needle
- Electropneumatic foot lift up to 16 mm
- Stitch length up to 9 mm
- Maximum foot lift height adjustment 6.5 mm
- Maximum sewing speed 2,000 stitches/min
- Automatic thread trimming
- Automatic locking
- Automatic needle positioning
- Large 28 mm bobbin holder
- Clearance between the needle plate and the machine arm up to 63,5 cm
- Needle system 134-35
- Automatic machine lubrication system

Compressed air is required for machine operation.

Head for self-assembly
