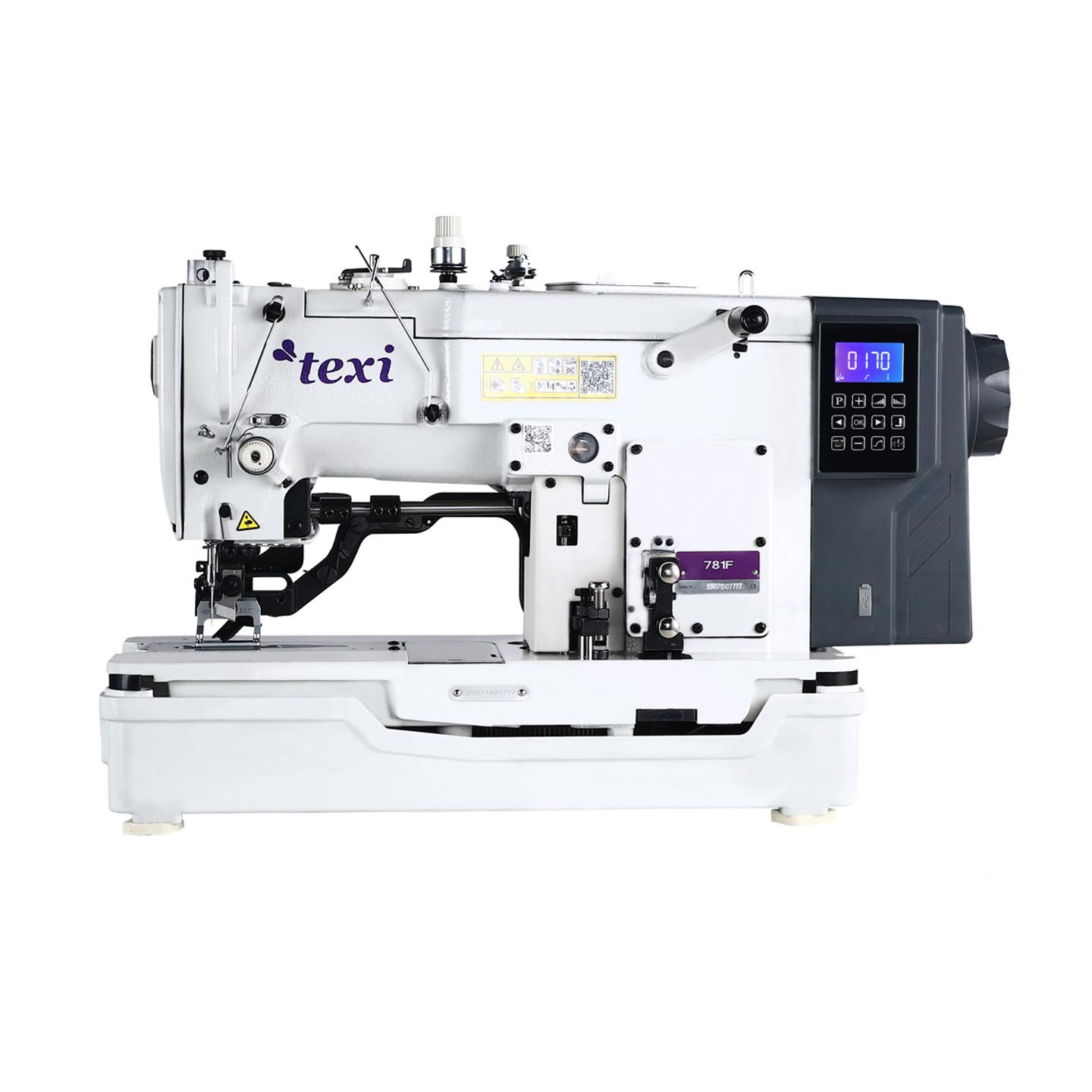

Automatic straight buttonhole machine TEXI 781F - head only

Automatic straight buttonhole machine – for light and medium fabrics

TEXI 781F PREMIUM is an automatic straight buttonhole machine with CNC feed, designed for light and medium fabrics. Integrated AC Servo motor ensures quieter and steadier operation. The closed oil system keeps the sewing process clean, while the LED lamp provides precise lighting of the sewing field.

Technical specifications

Max sewing speed 4000 stitches/min. Standard hole hem length 6.4 - 25.4 mm (may be larger after changing the foot – optional), cut length 6.4 - 19.1 mm. Feed: CNC. Clamp size 30×5 mm. Lubrication: central, closed circuit. Presser foot lifts up to 12 mm. Needle system 135x5.

The presser foot lift and knife control are driven by stepper motors, which guarantee quiet and precise operation, with the added option of electronic adjustment of these parameters.

Main features

• Automatic needle positioning
• Automatic thread trimming
• Automatic presser foot lifting
• Built-in AC Servo motor
• Closed oil system
• LED lamp

Recommended needle system

135x5

Head for self-assembly.
