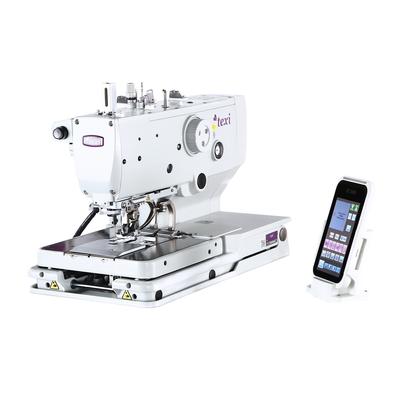

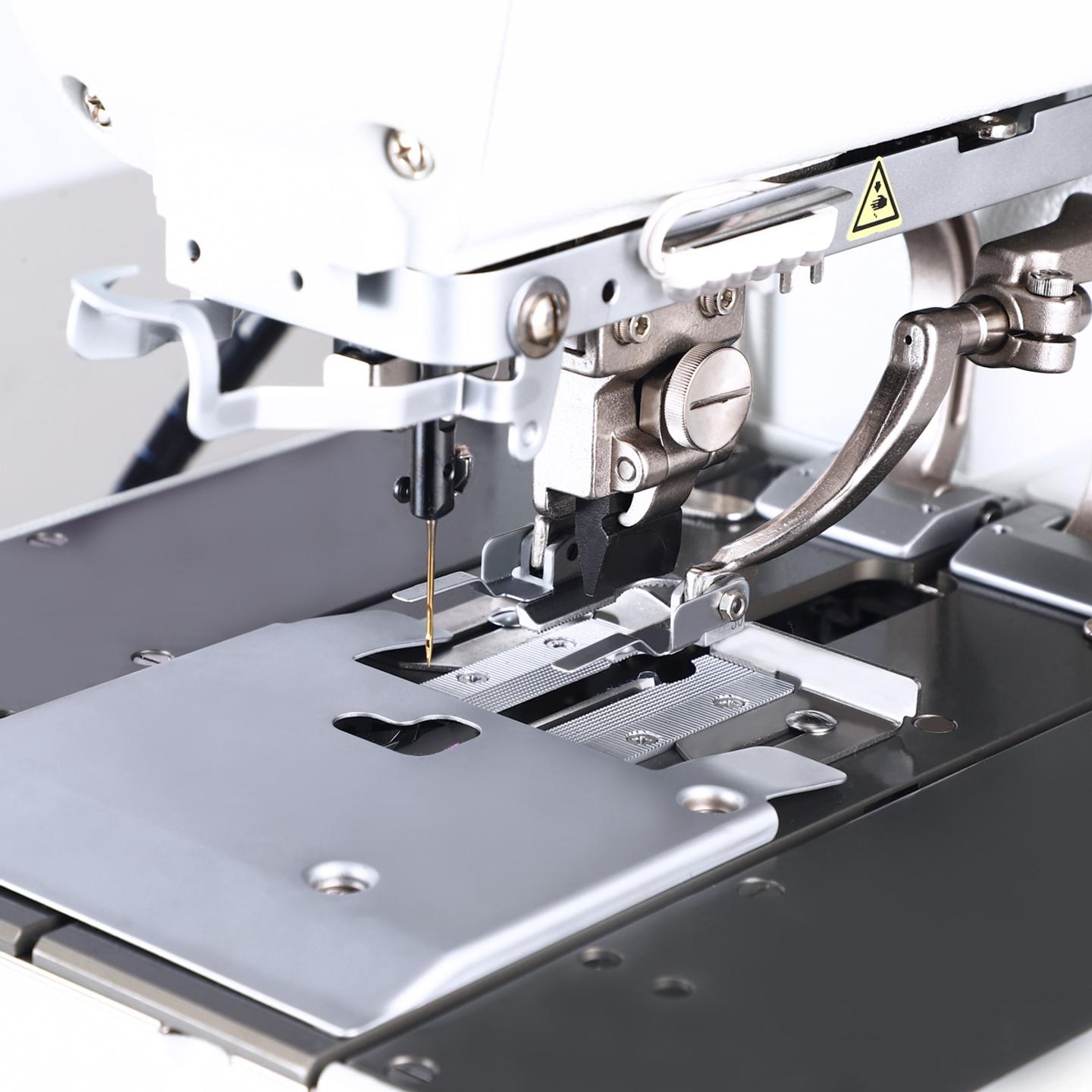

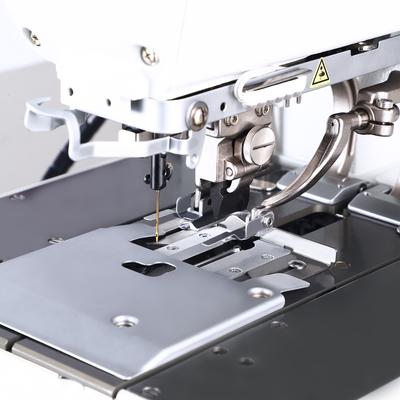

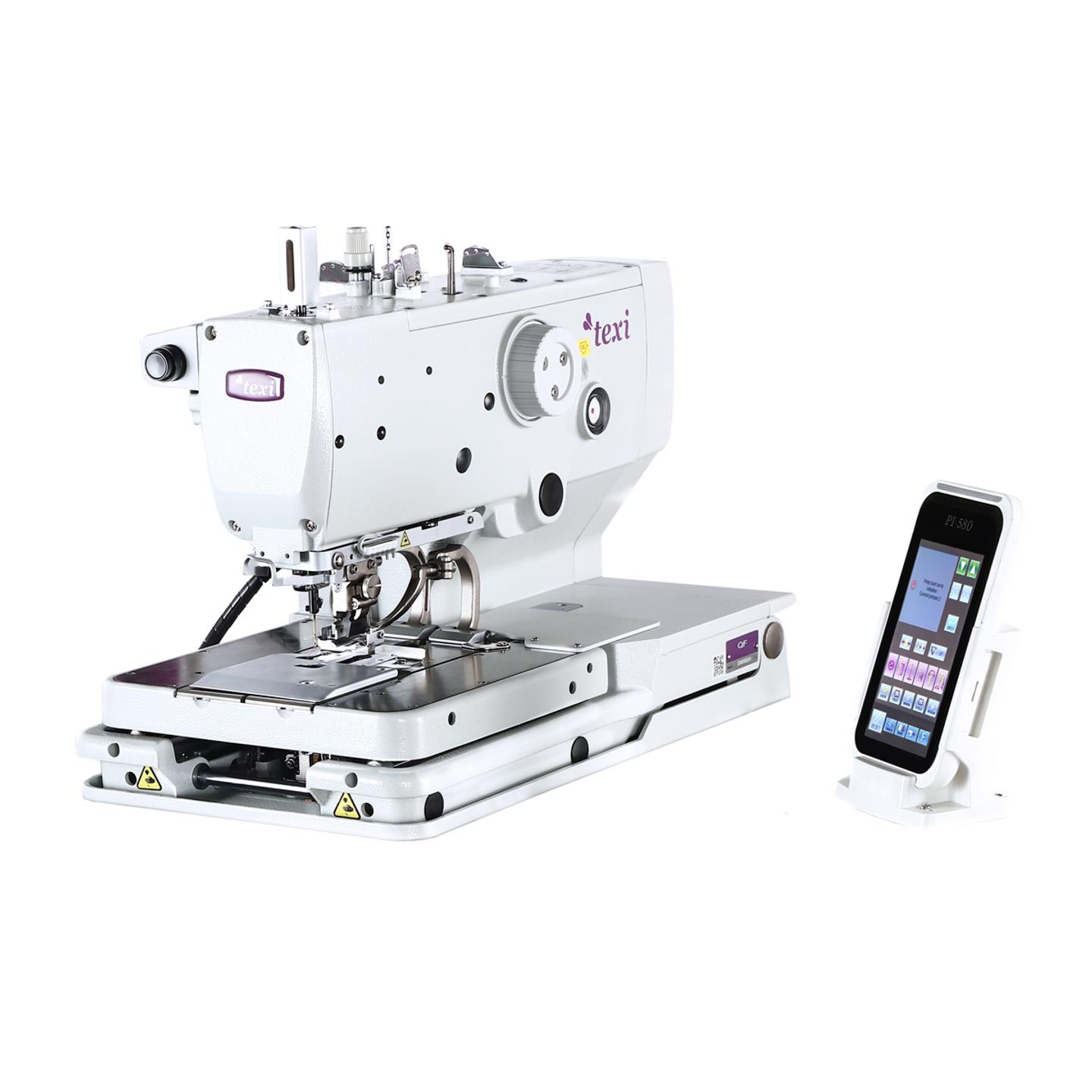

Electronic eyelet buttonhole machine TEXI QF - head only

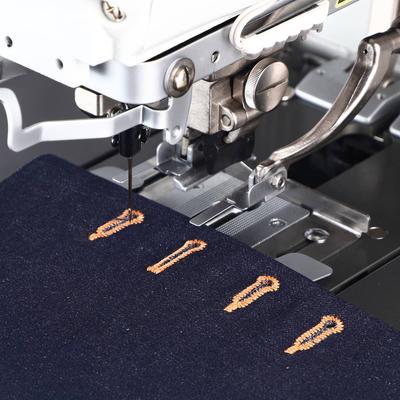

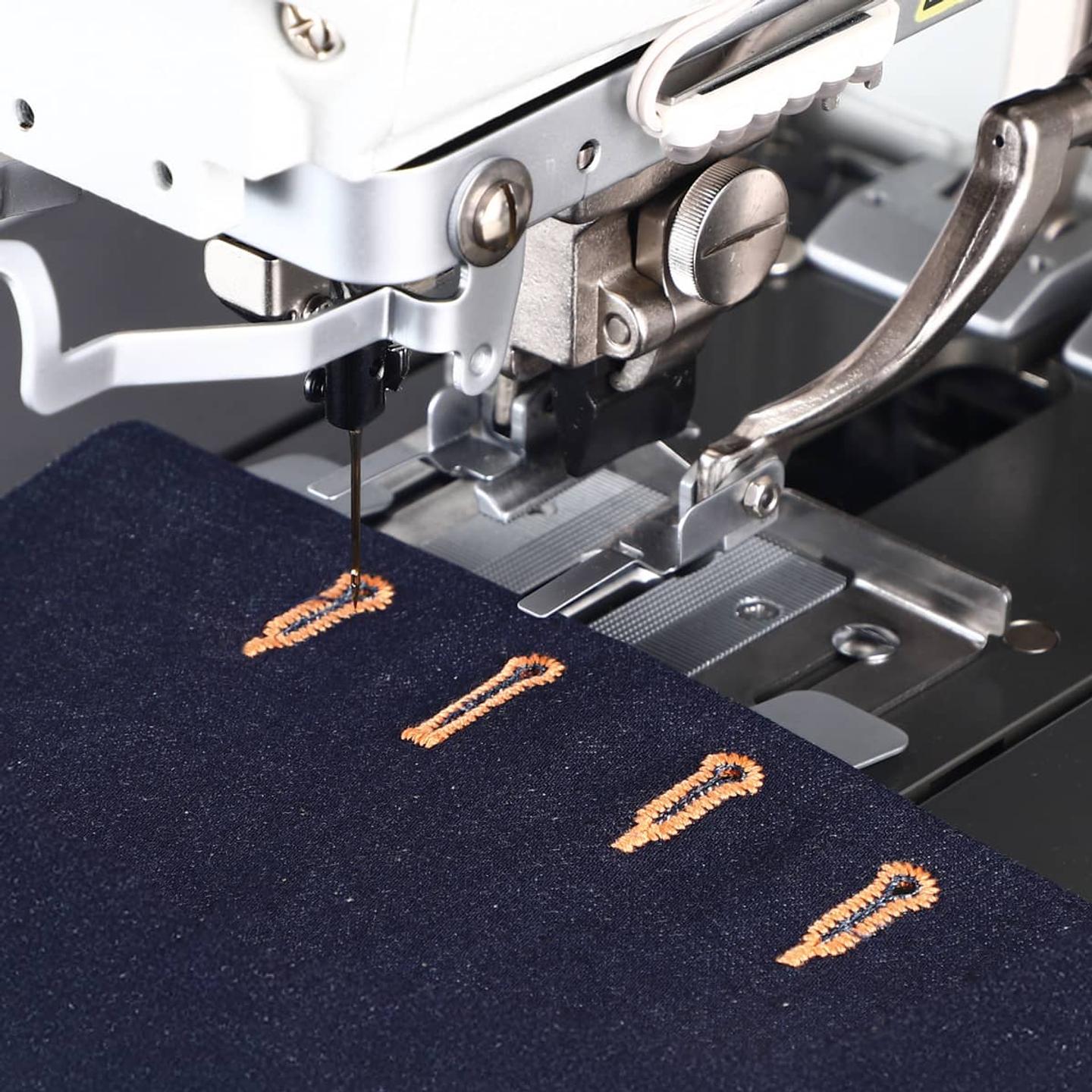

Electronic eyelet buttonhole machine – for medium and heavy fabrics

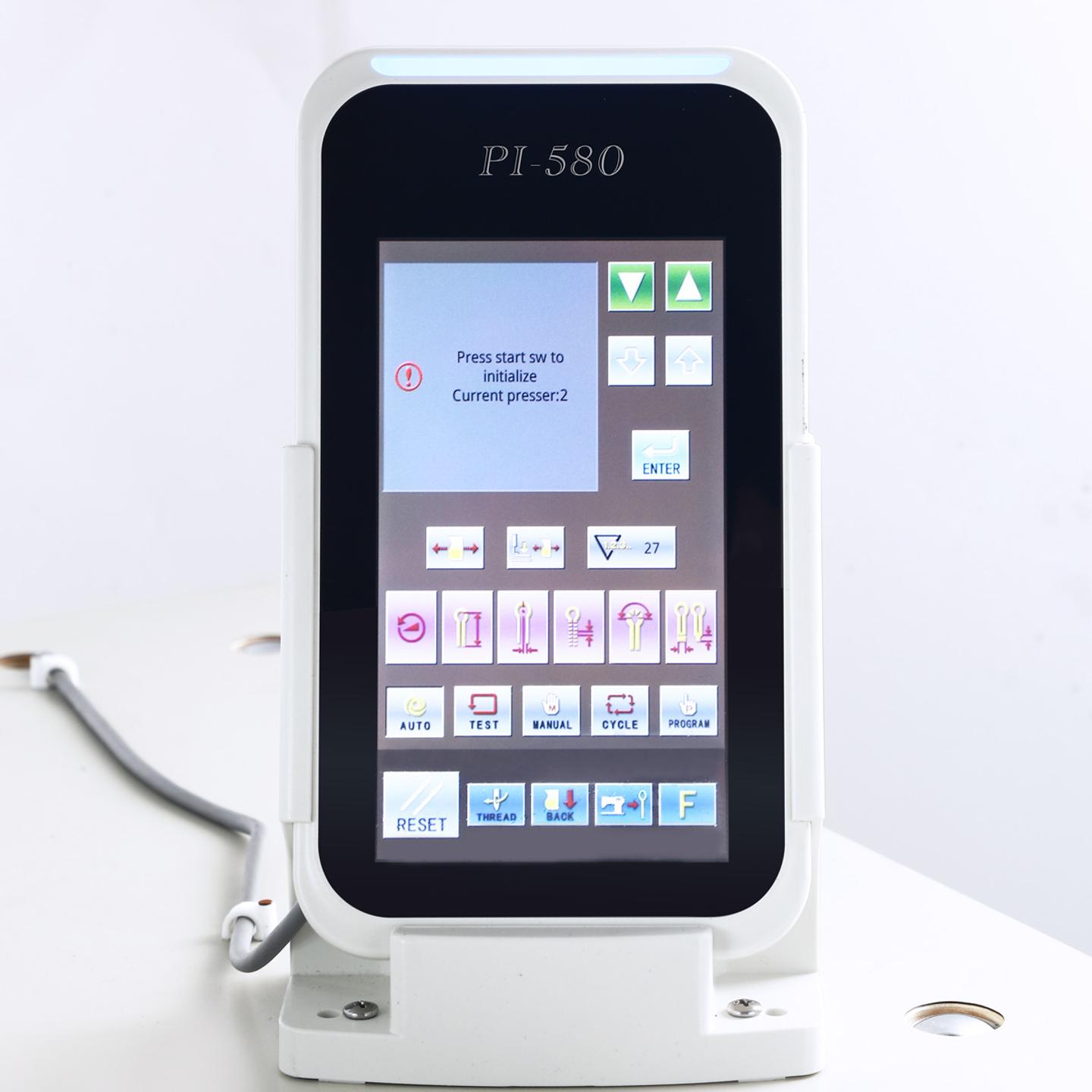

TEXI QF PREMIUM is an electronic buttonhole machine, designed for medium and heavy fabrics. CNC feed and the built-in AC Servo motor guarantee precision and smooth operation. The closed oil system ensures a clean sewing process, while the LED lamp illuminates the working area. The machine is suitable for various types of production. The touch panel control system allows for convenient adjustment of the buttonhole parameters, tailoring the result to individual needs.

The Texi QF buttonhole machine requires compressed air..

Technical specifications

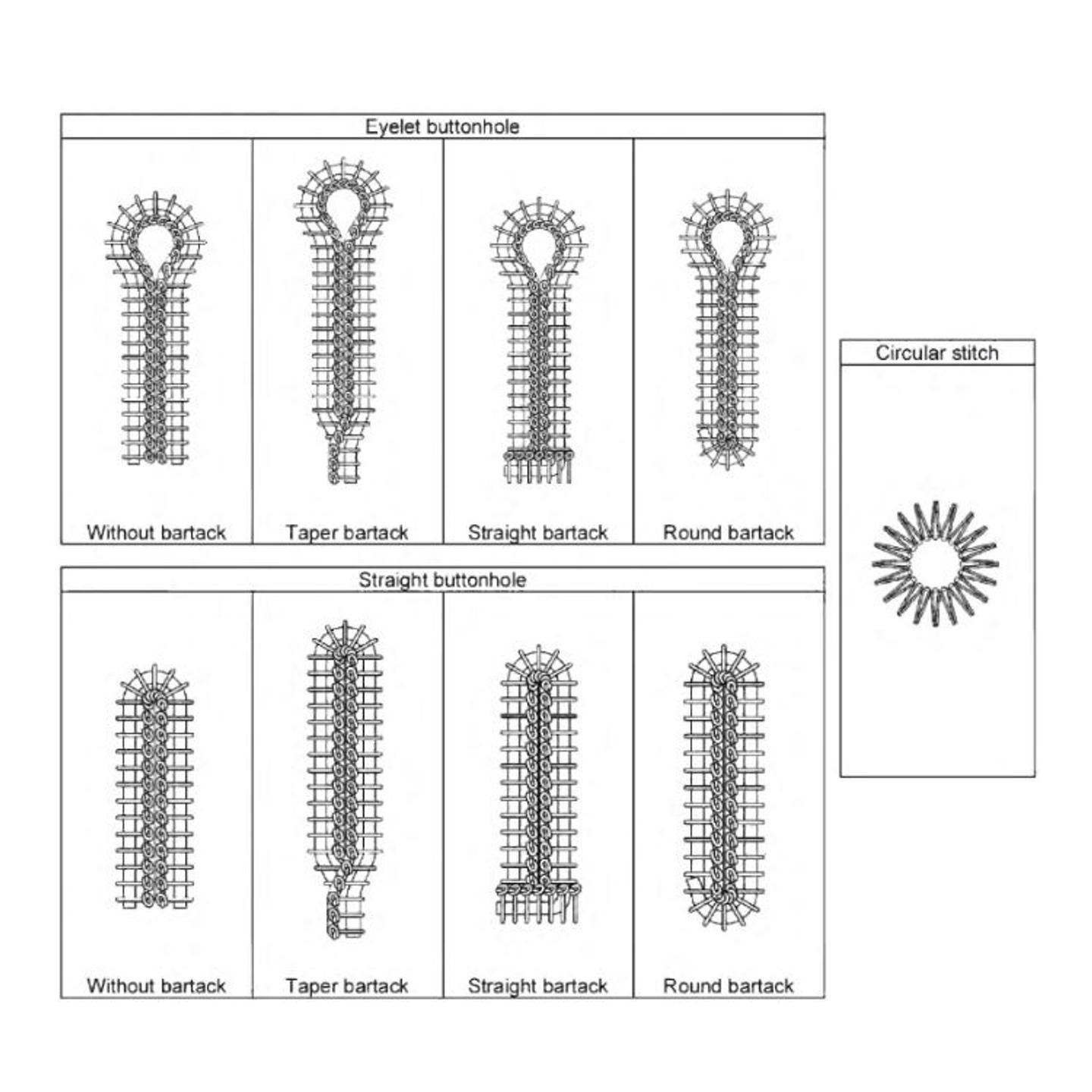

Max sewing speed 2500 sti/min. Eyelet buttonhole length 8 - 42 mm, straight buttonhole length 5 - 42 mm. max. cut-out length 42 mm. Stitch pitch 0.5 - 2.0 mm. Taper bar length 0 - 20 mm. Feed: CNC. Lubrication: central, closed circuit. Presser foot lift 12–16 mm. Needle system 558. 9 programmed patterns.

Main features

• Automatic needle positioning
• Automatic thread trimming
• Automatic presser foot lifting
• CNC feed
• Quickly change the type of buttonhole from the panel level.
• Built-in AC Servo motor
• Closed oil system
• LED lamp

After installing a dedicated knife and anvil (optional), the machine allows you to sew the eyelet itself (the so-called ‘round hole’ or ‘sunburst’).

Recommended needle system

558

Head for self-assembly.
