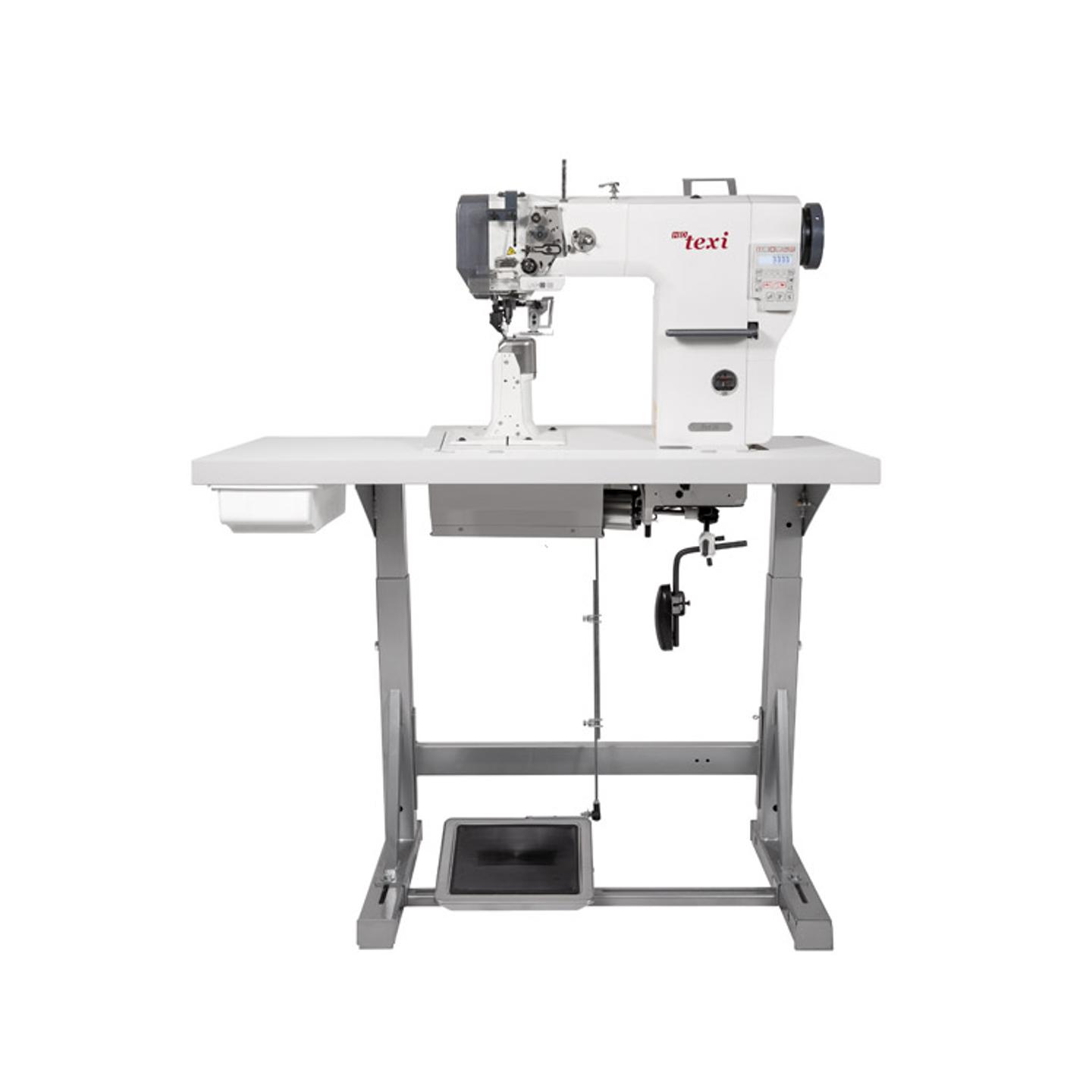

1-needle post-bed mechatronic lockstitch machine with bottom, needle and upper roller feed - complete sewing machine

TEXI Post DD is a 1-needle post-bed mechatronic lockstitch machine (all-in-1) with bottom roller feed, needle feed and an active roller presser foot (roller positioned on the left side of the needle). It features a built-in energy-saving AC Servo motor. Standard equipped with automatic functions and an integrated 3-step energy-saving LED work light.

Designed for sewing medium and heavy materials. Perfect for hard-to-reach areas in the production of sports shoes, leather footwear, leather accessories and similar products.

Thanks to the integration of all components, the machine operates quietly and without harmful vibrations. The AC Servo motor saves up to 70% energy compared to conventional electronic or clutch motors.

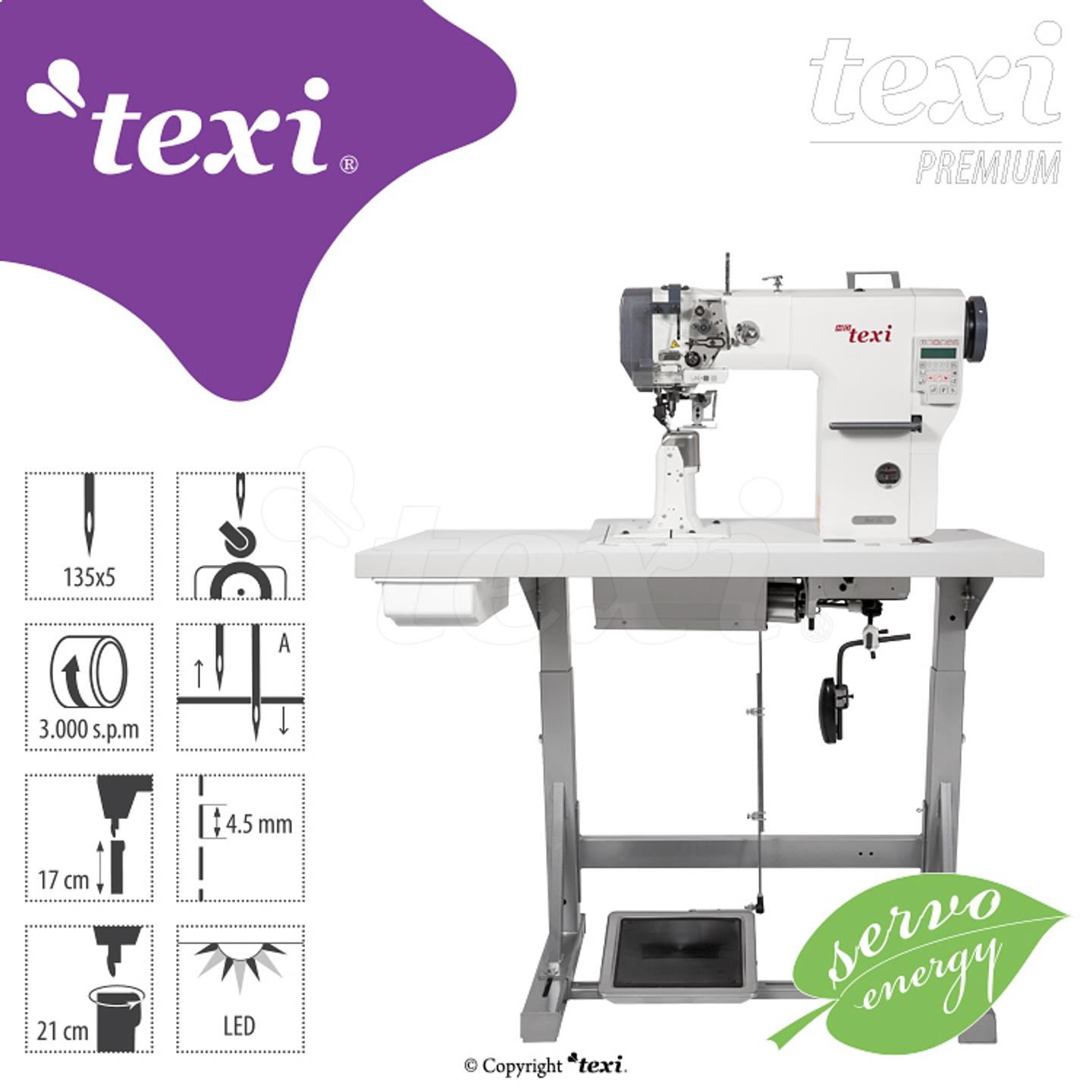

Technical specification:

• for sewing medium and heavy fabrics

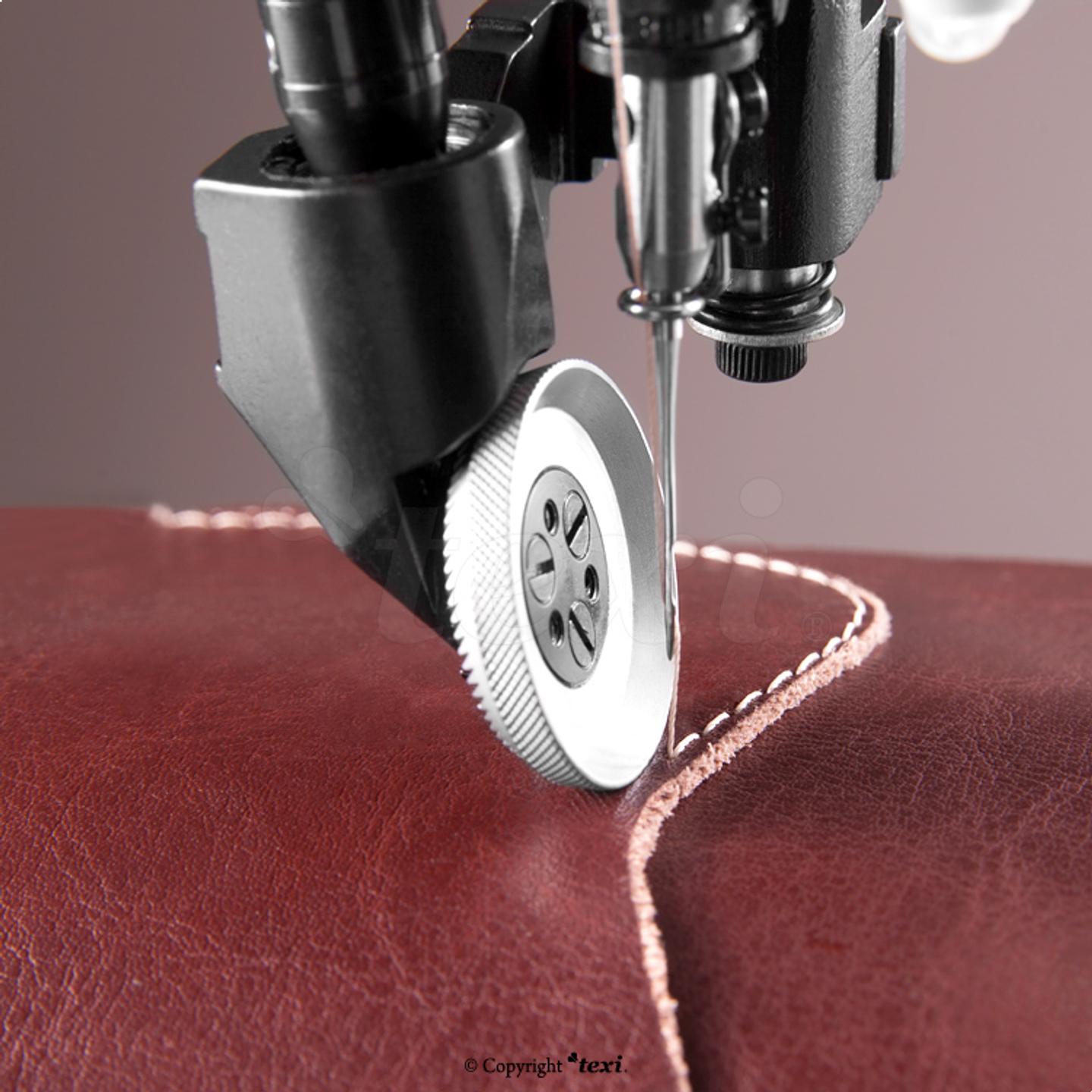

• bottom roller feed, needle feed and active roller presser foot
• maximum stitch length: 4.5 mm
• presser foot lift up to 7 mm (hand lifter) or 10 mm (knee lifter)
• maximum sewing speed: 3,000 stitches/min
• integrated 3-step energy-saving LED work light
• post height: 17 cm
• built-in energy-saving AC Servo motor, 750 W
• voltage: 220–240 V
• central lubrication
• needle system: 135x5 or 135x5 SERV7, with suitable needle points depending on the fabric
• automatic functions: electromagnetic thread trimmer, electromagnetic foot lifter, reverse feeding with programmable initial and final bartack, needle positioning, programmable control panel

Offered in the TEXI PREMIUM package:

1 YEAR WARRANTY PREMIUM – one year full warranty.

STAND HD TEXI PREMIUM SILVER – steel, stable and durable stand for heavy machines with height adjustment (69–83 cm), including an oiler holder. Powder painted in silver colour RAL 9006, matching the Ergolinia chair line.

TABLE TOP TP DD PREMIUM – the highest quality table top made of moisture-resistant birch plywood (30 layers), perfectly damping vibrations. The PREMIUM surface is coated with a laminate structure suitable for the textile industry, offering maximum resistance to impact, abrasion and splinters. Sides are protected by ABS slats. TEXI PREMIUM table tops do not contain harmful ingredients.

Dimensions: 106 × 55 × 4 cm (length × width × height).

Enjoy the silence, save energy.
