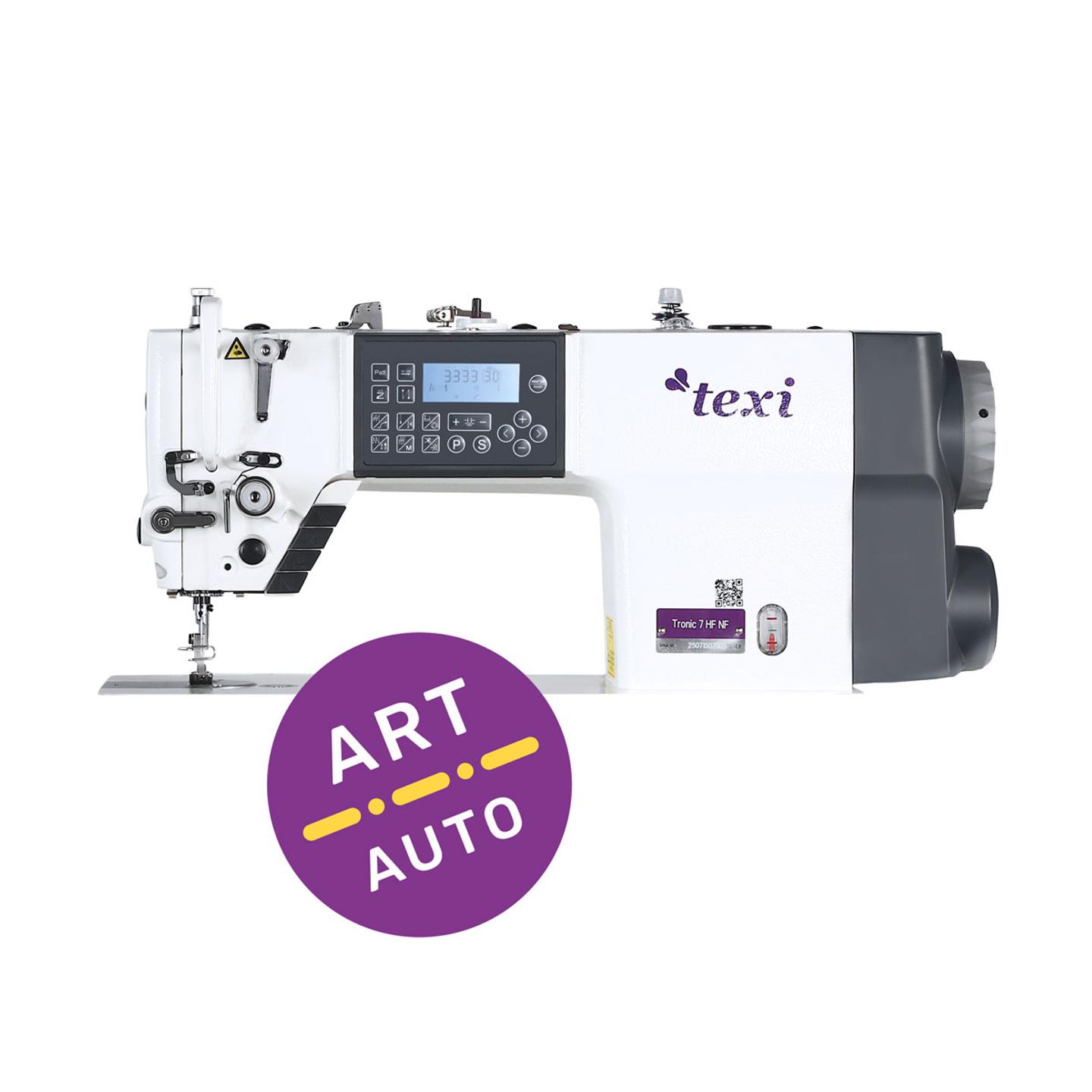

Automatic lockstitch machine with needle feed TEXI TRONIC 7HF NF, medium and heavy fabrics - head only

Industrial lockstitch machine with needle feed from TEXI FUTURE series – for medium and heavy fabrics

TEXI TRONIC 7HF NF ART AUTO is a single needle lockstitch machine with bottom and needle feed, designed for sewing medium and heavy fabrics. The integrated stepper motor provides quiet, vibration-free operation. The closed oil system ensures clean work without oil contamination. The LED lamp precisely illuminates the working area and does not strain the eyes even during several hours of work.

TEXI TRONIC 7HF NF ART AUTO is the successor to the model: TEXI TRONIC 7 NF

Technical specifications

The machine is equipped with independent stepper drives for the needle bar, feed, and thread cutting units. It guarantees quiet and efficient operation and precise fabric feeding.

Max sewing speed 4000 stitch/min
Max stitch length 5 mm
Distance from the arm to the needle bar 263 mm
Feed: bottom + needle feed
Hook for spool 26 mm
Lubrication closed circuit
Presser foot lift 5.5–13 mm

Main features

• Automatic thread trimming and bartacking
• Automatic foot lift driven by a stepper motor
• Automatic needle positioning
• ART AUTO decorative stitches – programmable
• Bottom + needle feed – stable fabric feeding
• Built-in stepper motor – quiet operation, no vibrations
• Closed oil system – no oil stains, clean operation
• LED lamp precisely illuminating the working area
• Hook for spool 26 mm
• Dense stitch bartack function
• Recommended needle system 135x5

Head for self-assembly.
