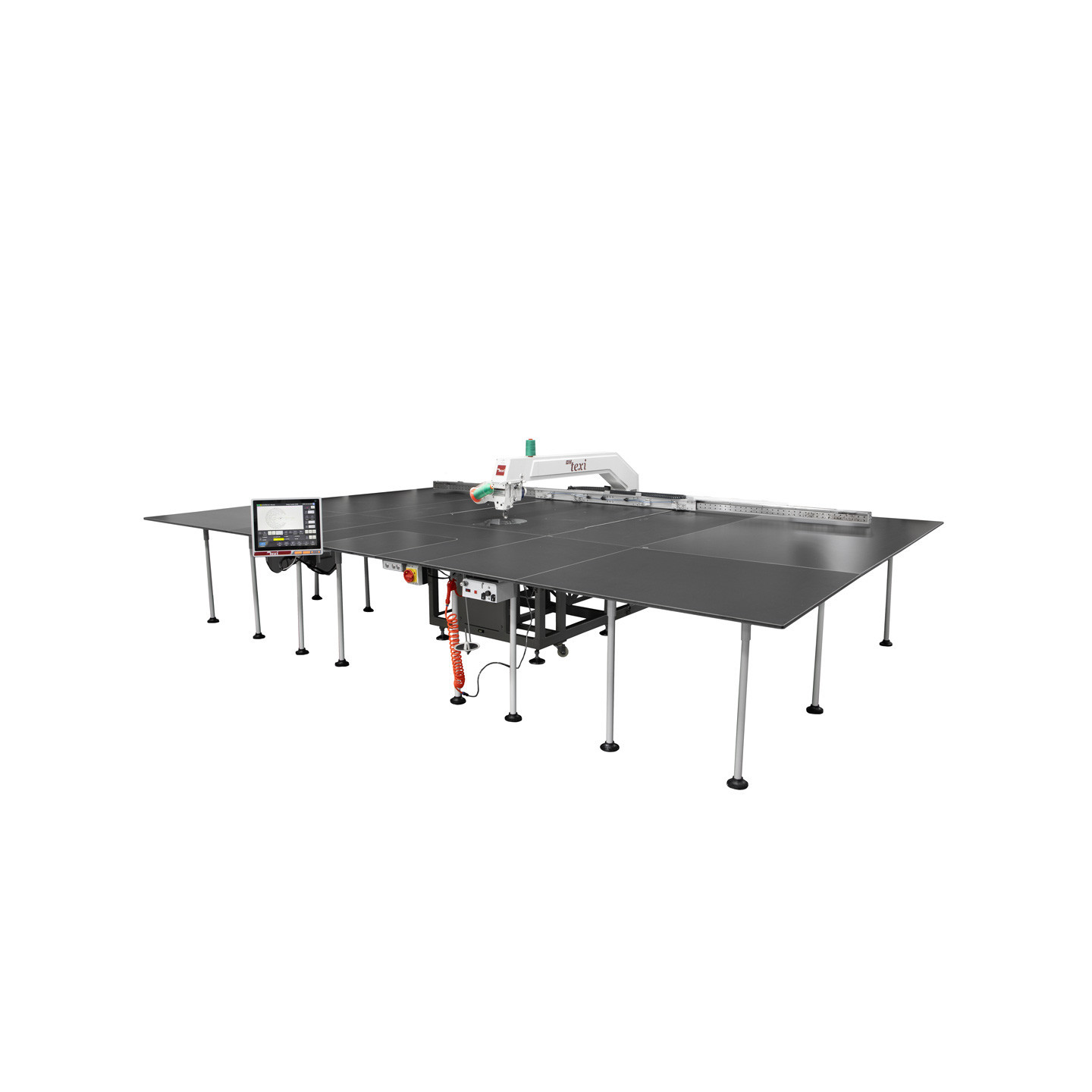

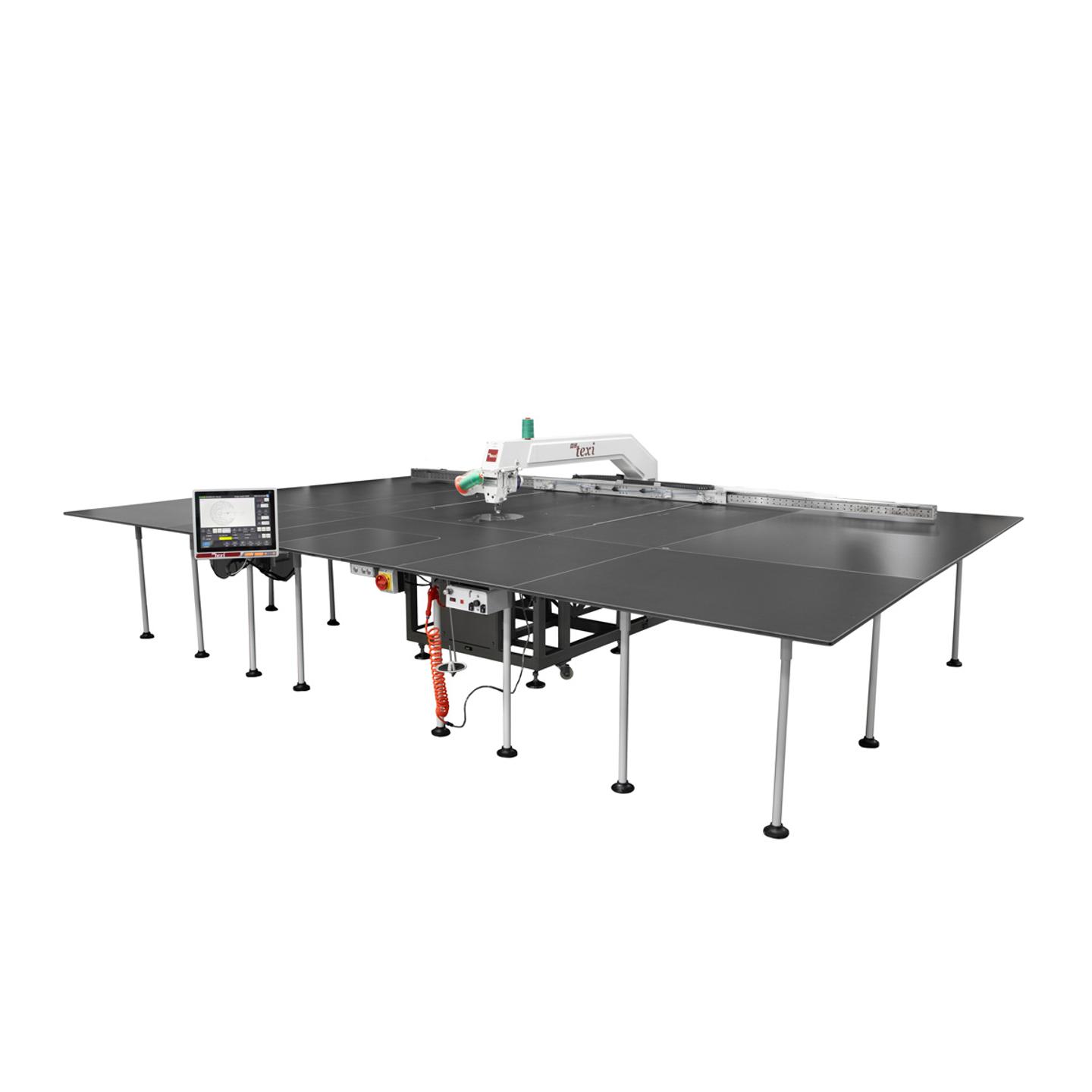

Programmable sewing machine with independent drives

CNC Sewing Machine for Large-Area Pattern Stitching

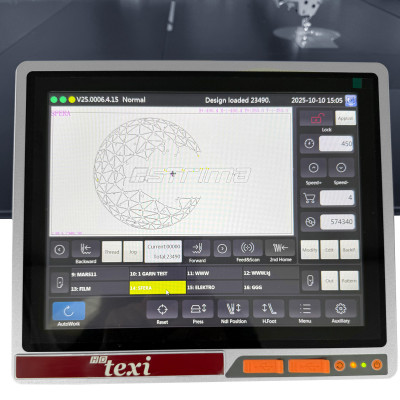

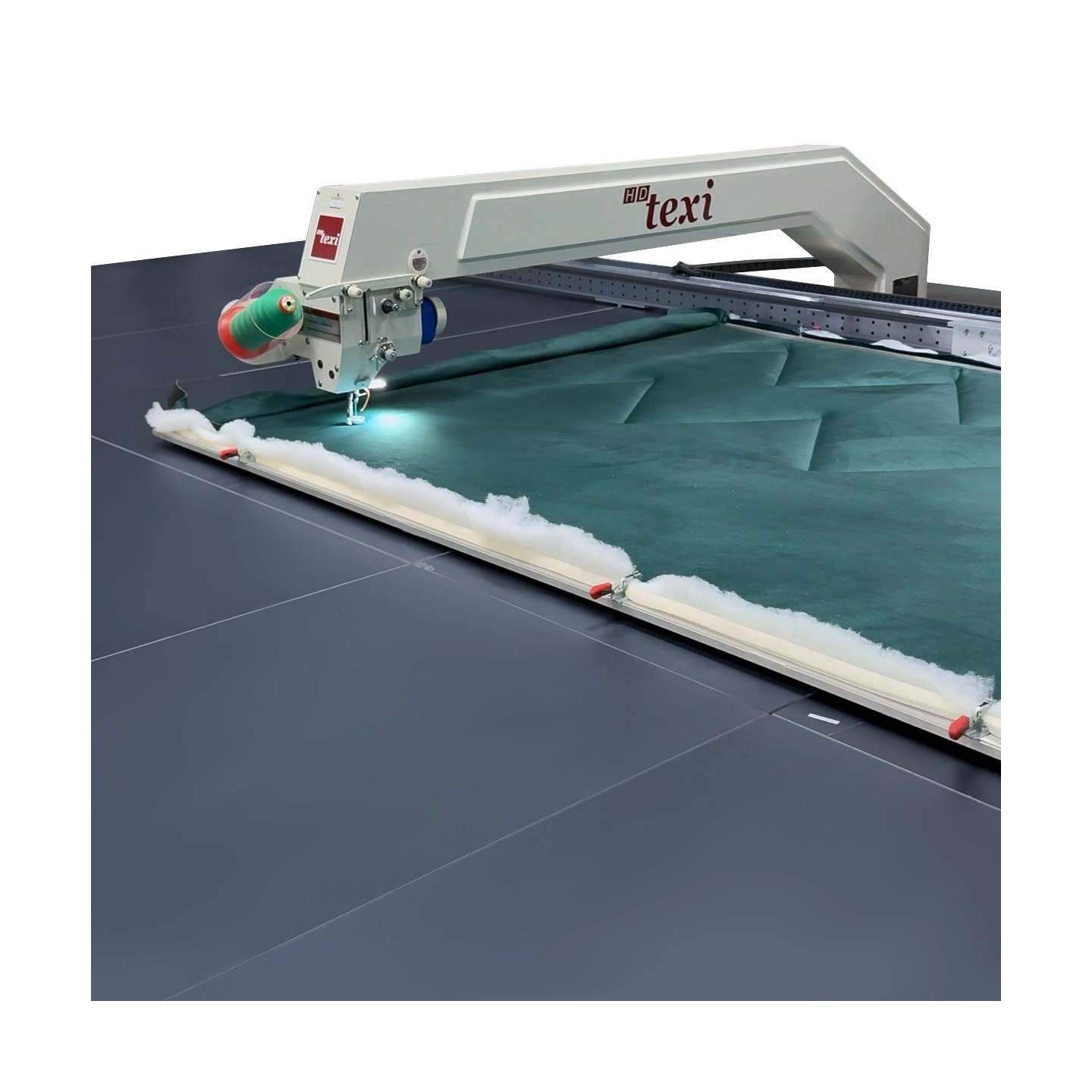

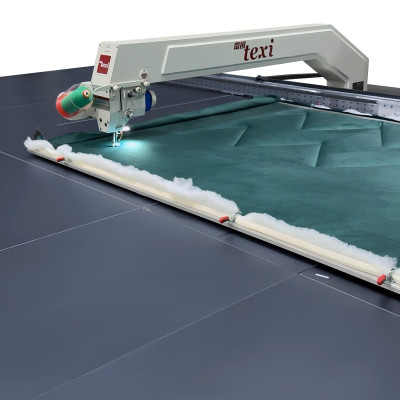

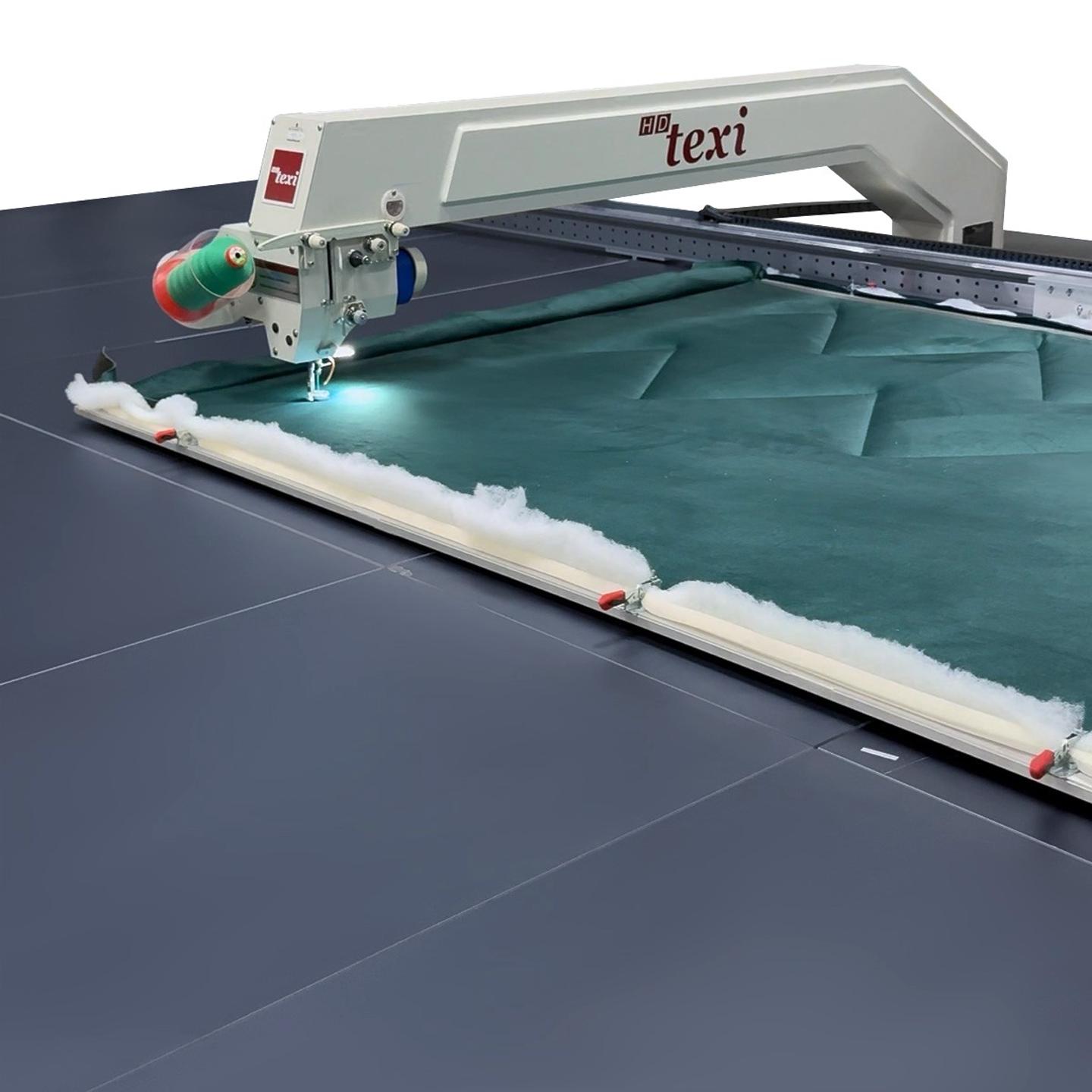

An industrial TEXI CNC machine with a 250×120 cm working area, designed for serial production of repetitive patterns with the highest precision. Equipped with a direct-drive servo motor and a dry-head lubrication system, it eliminates the risk of oil stains on fabrics. The large 15” LCD touch panel with the possibility of remote connection to the service enables quick editing and saving of patterns, while advanced automatic functions ensure efficiency, repeatability, and top-quality seams.

Applications

• Automotive industry: car upholstery, interior components, camper van equipment
• Individual production of large items: quilts, bedspreads, curtains, technical textiles
• Furniture industry: beds, sofas, armchairs, chairs, individual interior designs

cnQwbrVkyrc

Technical Data

• Working area: 250 × 120 cm
• Max. foam height: 30 mm
• Max. thread thickness: 20
• Drive: independent direct-drive AC servo
• Stitch length: 0.05 – 12.7 mm
• Max. sewing speed: 3000 stitches/min
• Memory: 2 GB (2000 patterns, up to 5 million stitches)

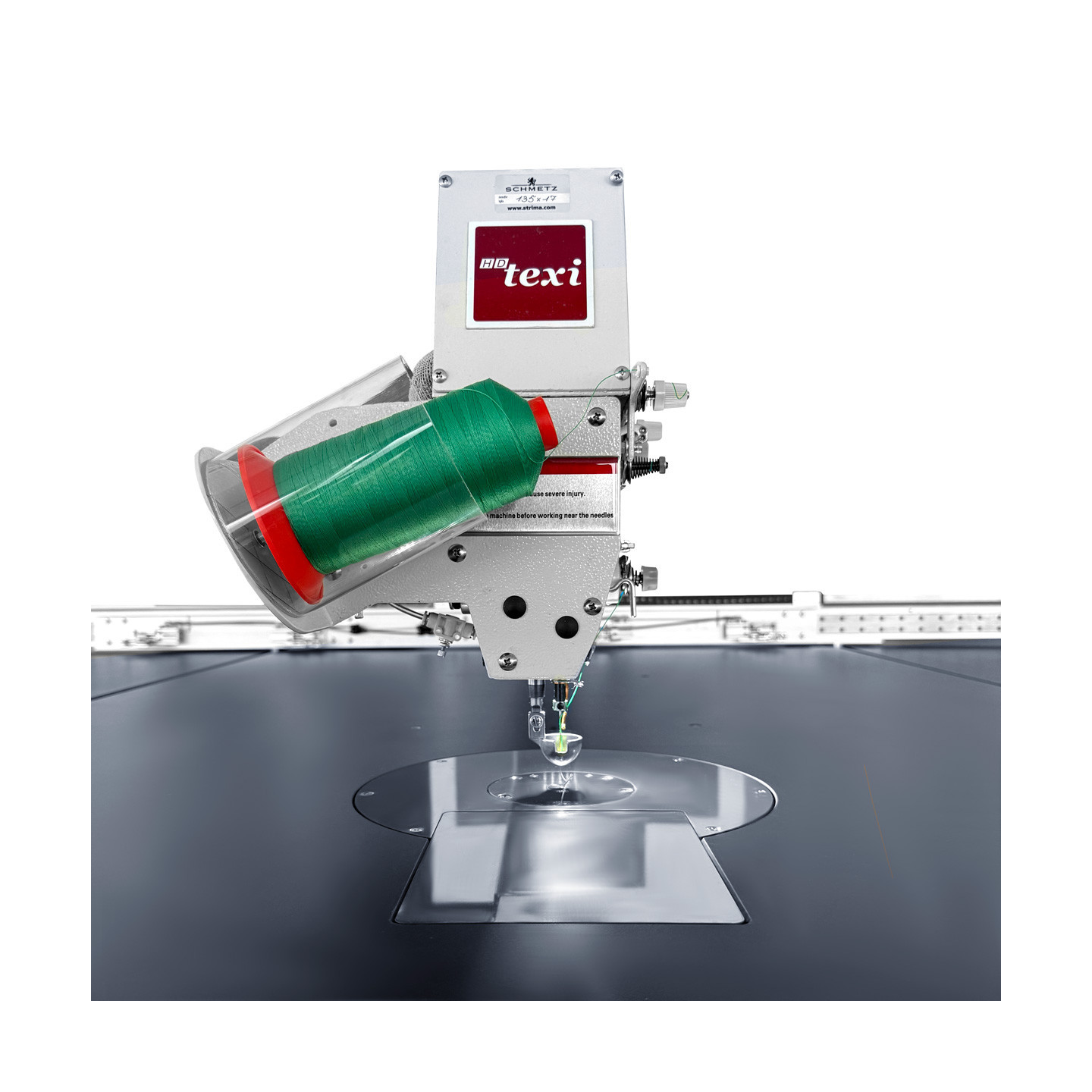

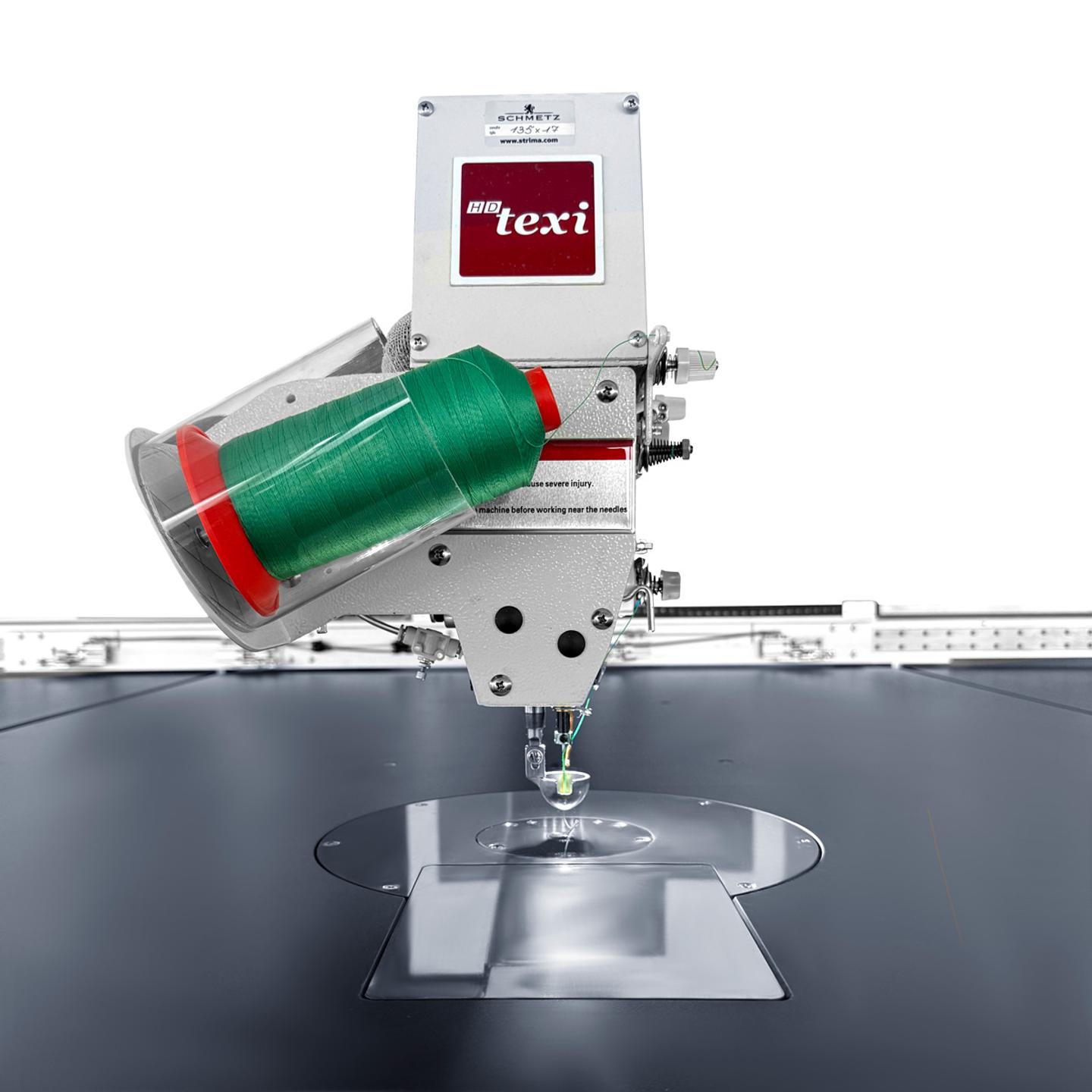

• Hook: large, for 26 mm bobbin

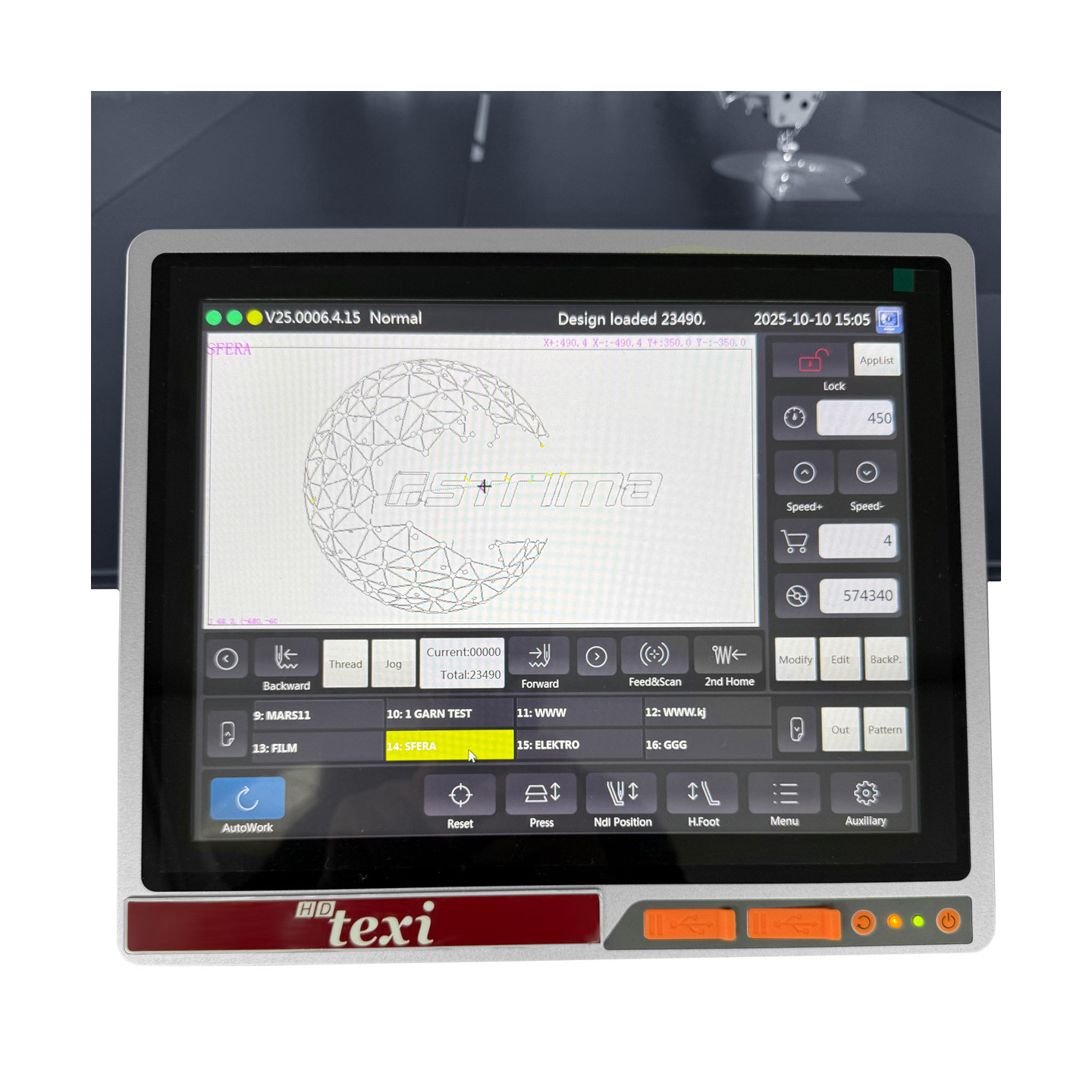

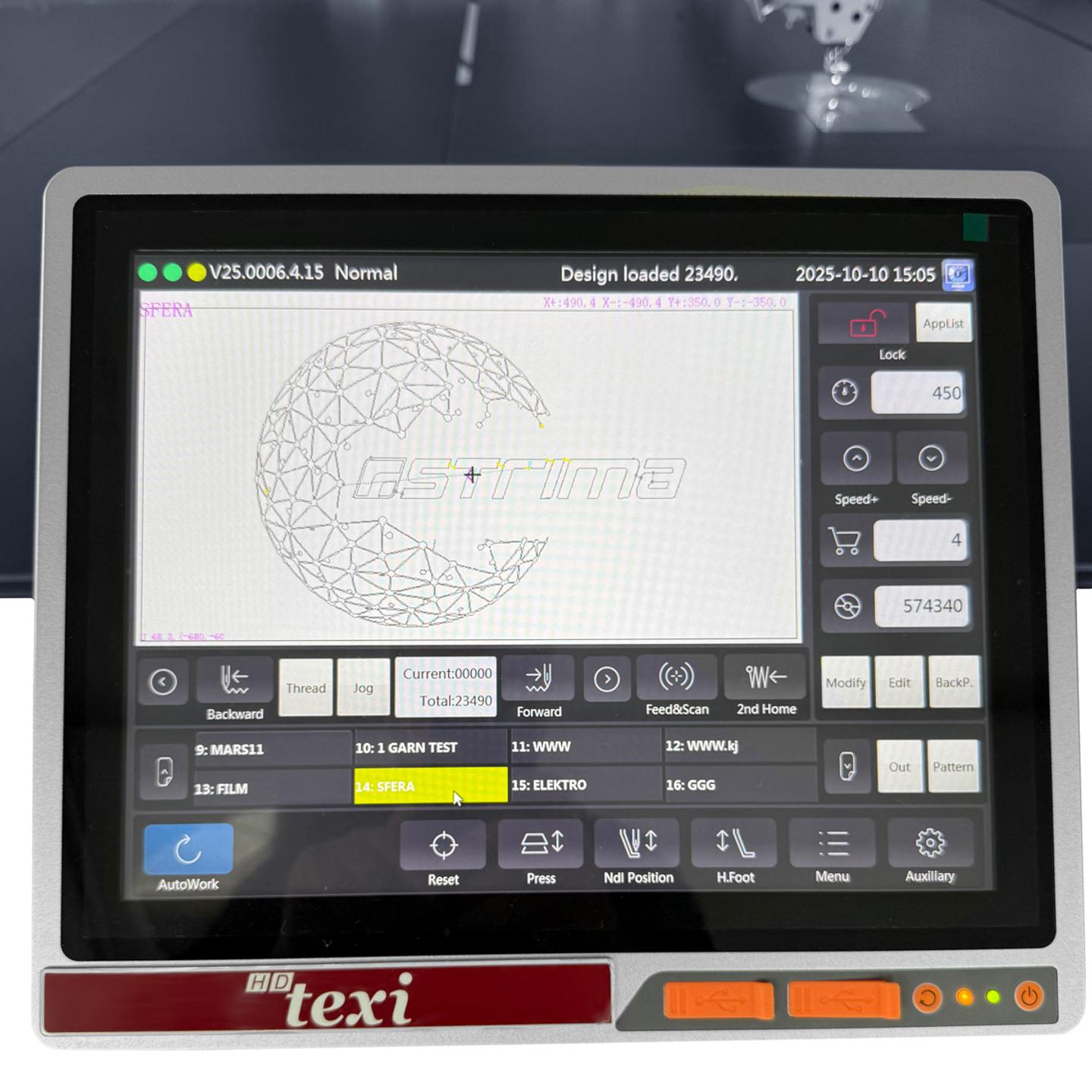

• Control panel: 15” LCD touchscreen
• Data transfer: USB, RFID
• Automatic functions: thread trimming, upper thread break sensor
• External thread winder
• Initial stitch controller
• Cleaning device (sweeper)
• Power supply: 220/230V (single-phase)
• Compressed air necessary

Needle system: 135×17 (134-35). For automatic multi-directional sewing machines, it is possible to use SCHMETZ needles in MR or SERV 7 versions, with appropriate tips depending on the material.

Summary

This CNC lockstitch machine with a large working area is an advanced solution for manufacturers seeking repeatability, precision, and high seam quality. Thanks to its large hook, advanced automatic functions, and user-friendly controls, it ensures efficiency and error reduction in the production of large upholstery and technical textile components.
