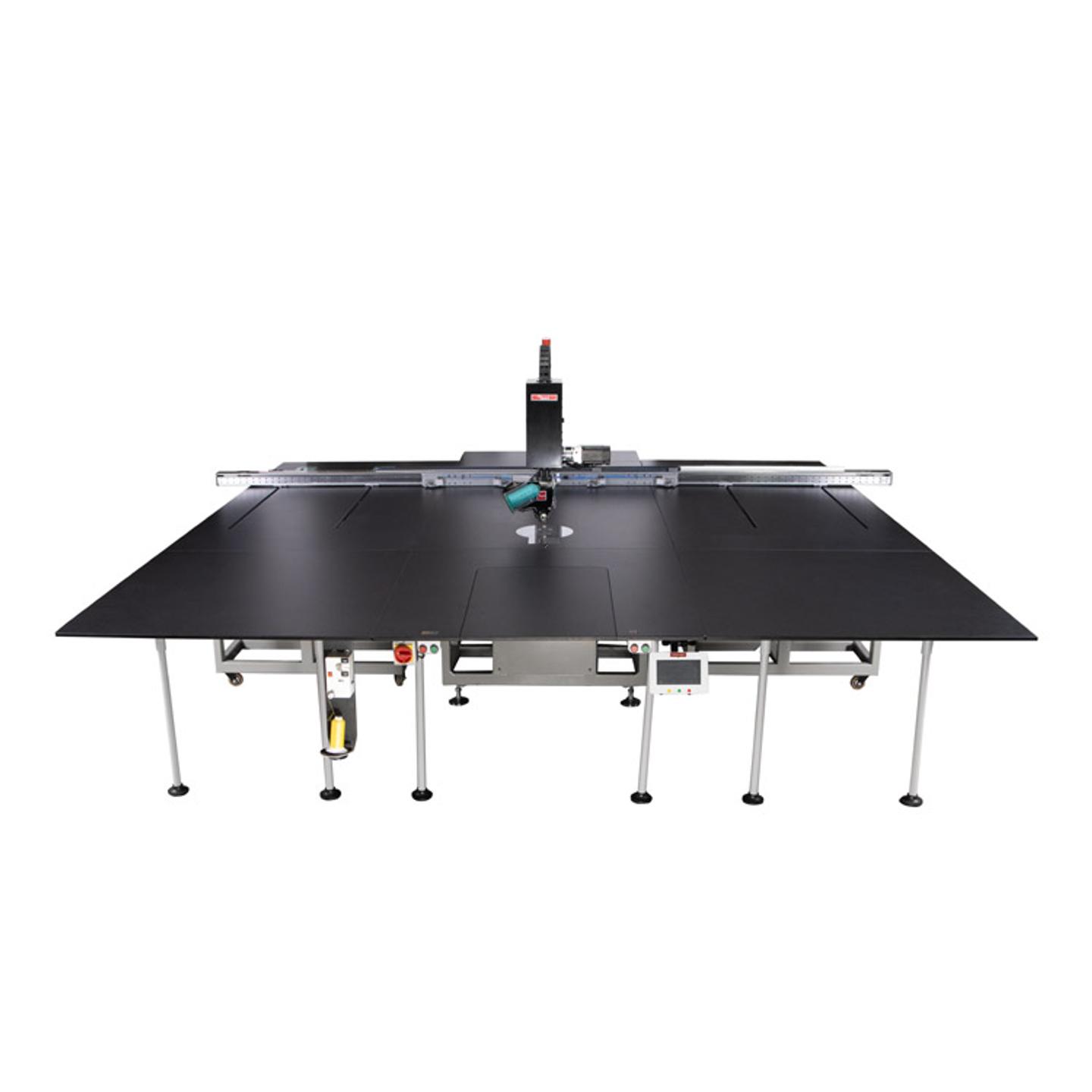

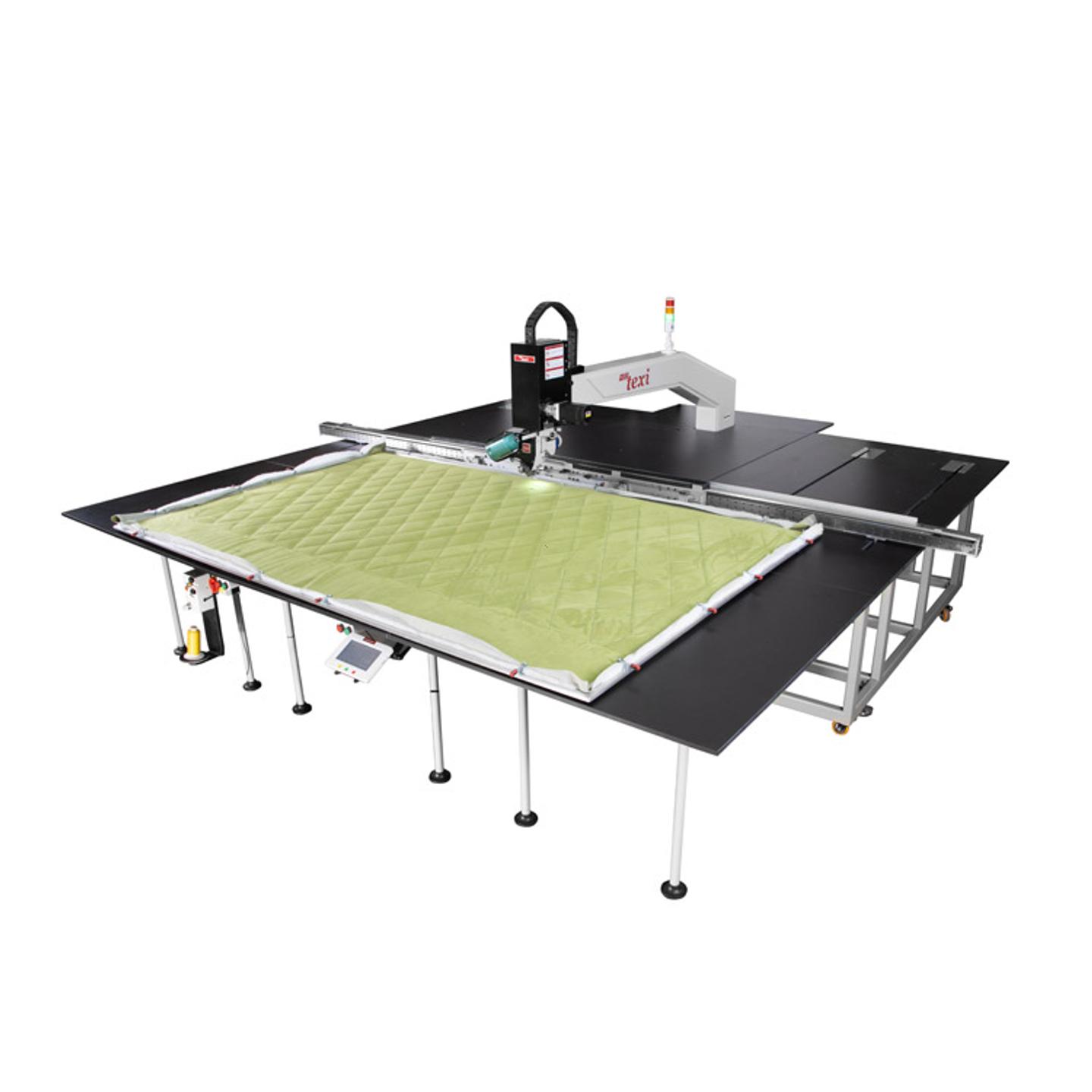

Programmable sewing machine with liftable rotary sewing head and independent drives with increased sewing field

TEXI FREE 360 XLF 250X130 is a pattern sewing machine for heavy materials with a 360-degree rotating head and hook unit, both automatically adjusting to the sewing direction. Thanks to this solution, the machine forms precise stitches and eliminates the risk of stitch skipping regardless of sewing direction. This model features an extended sewing field of 2500 × 1300 mm.

j8sM0XNykuo

Used in the manufacture of upholstered furniture, car upholstery, yacht upholstery, aviation upholstery, railway upholstery and campervans. Ideal for sewing clothing for uniformed and medical services and their equipment such as backpacks, covers and organizers. Works perfectly for quilted jackets, coats and sleeping bags. Suitable for sewing pet beds. Templates can be adjusted to any element depending on the sewing pattern.

Technical specification:

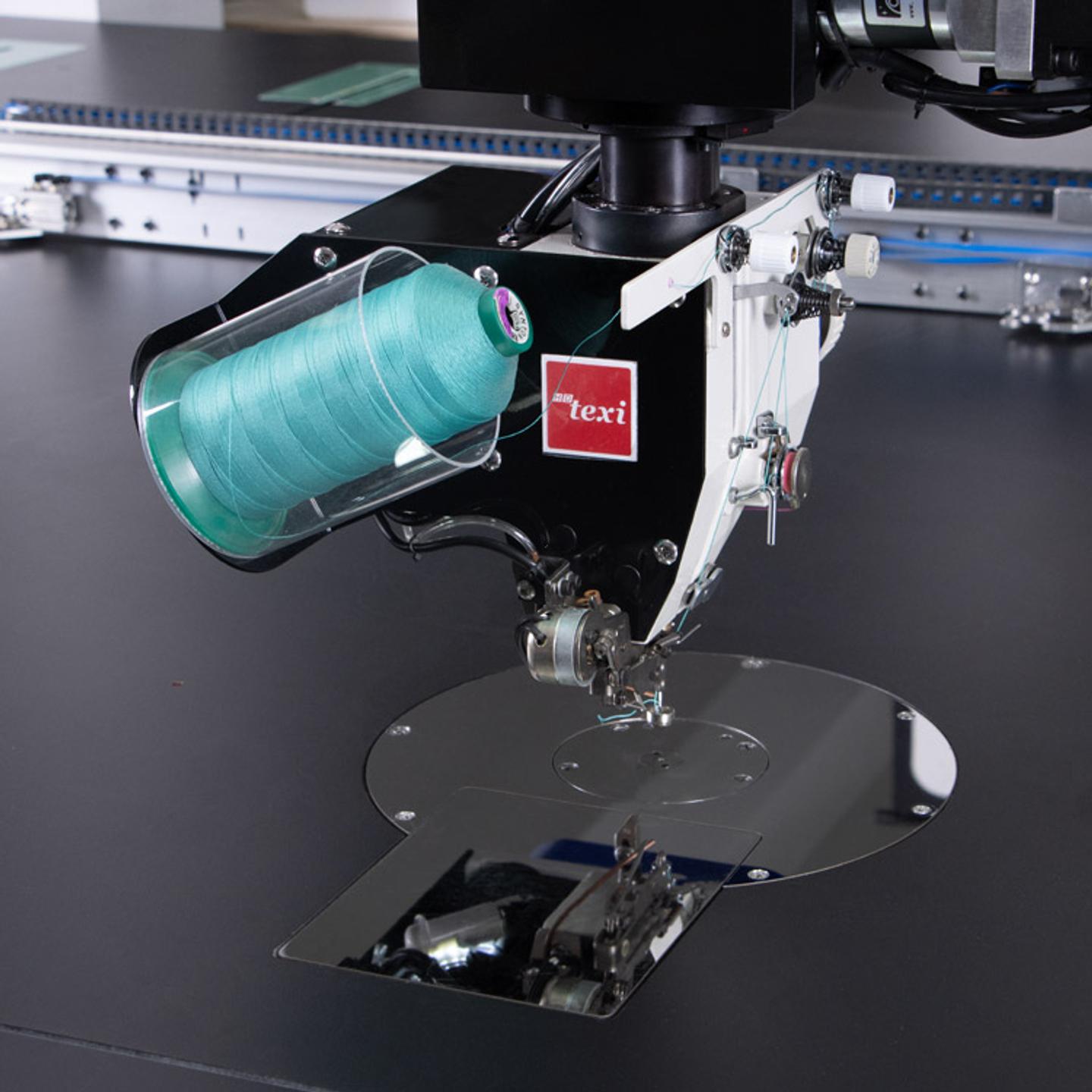

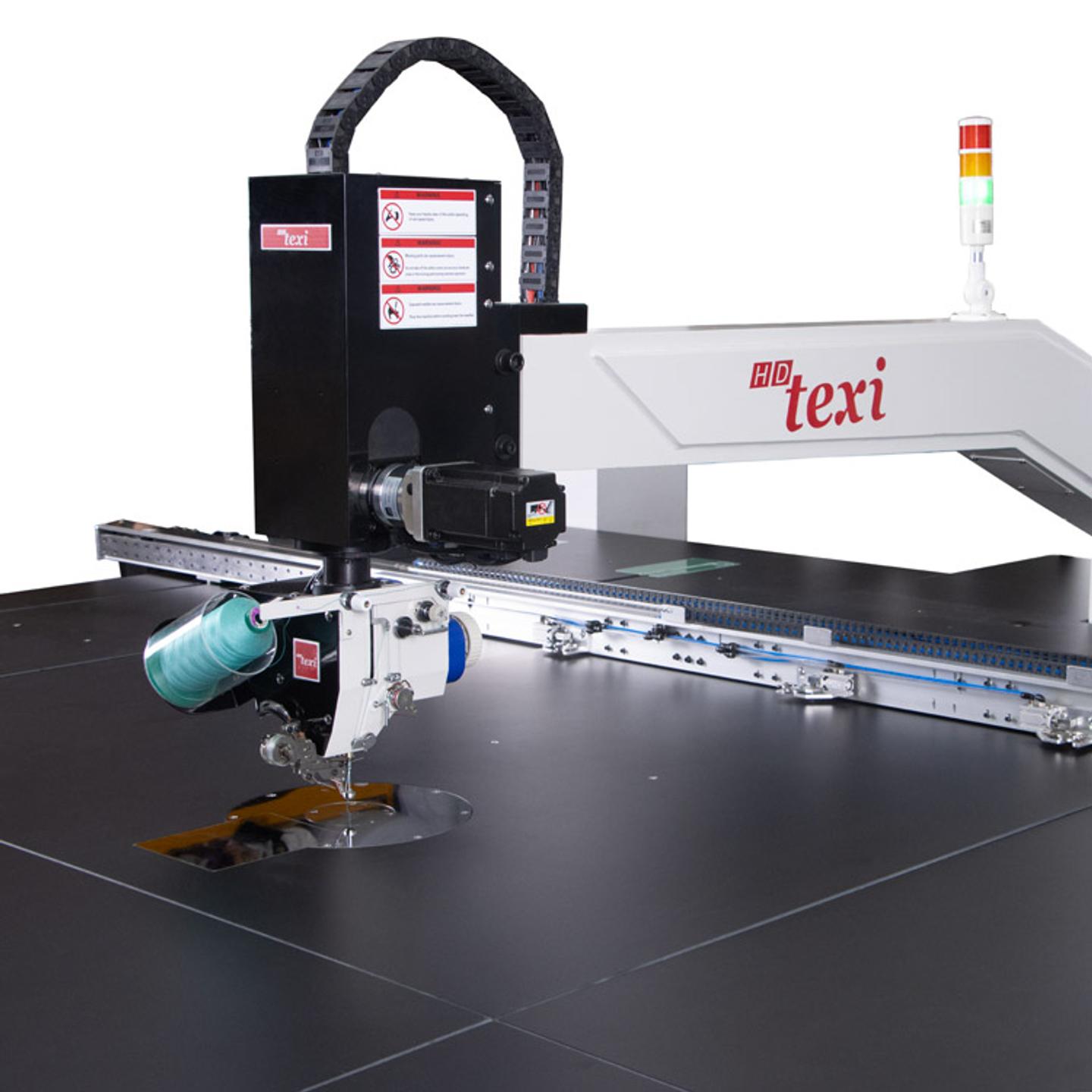

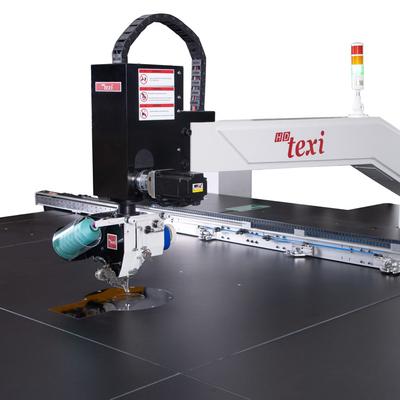

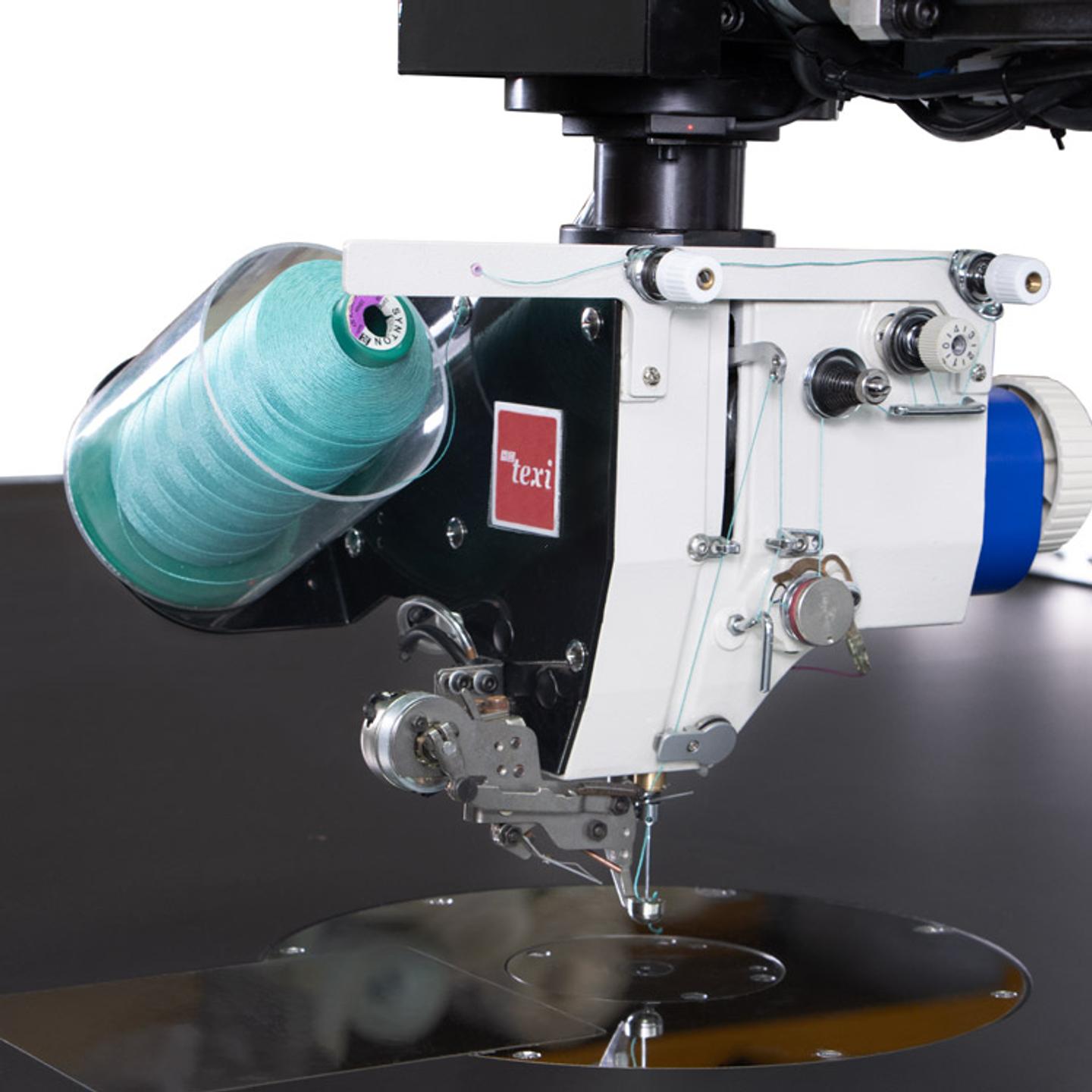

• 360-degree rotating machine head and hook unit automatically adjusting to the sewing direction
• built-in fast and precise stepper motors driving the sewing head, hook unit and rail movement in X and Y axes
• DELTA 750 W servo motor mounted in the machine head, responsible for needle bar drive
• presser foot lift in resting phase up to 59 mm

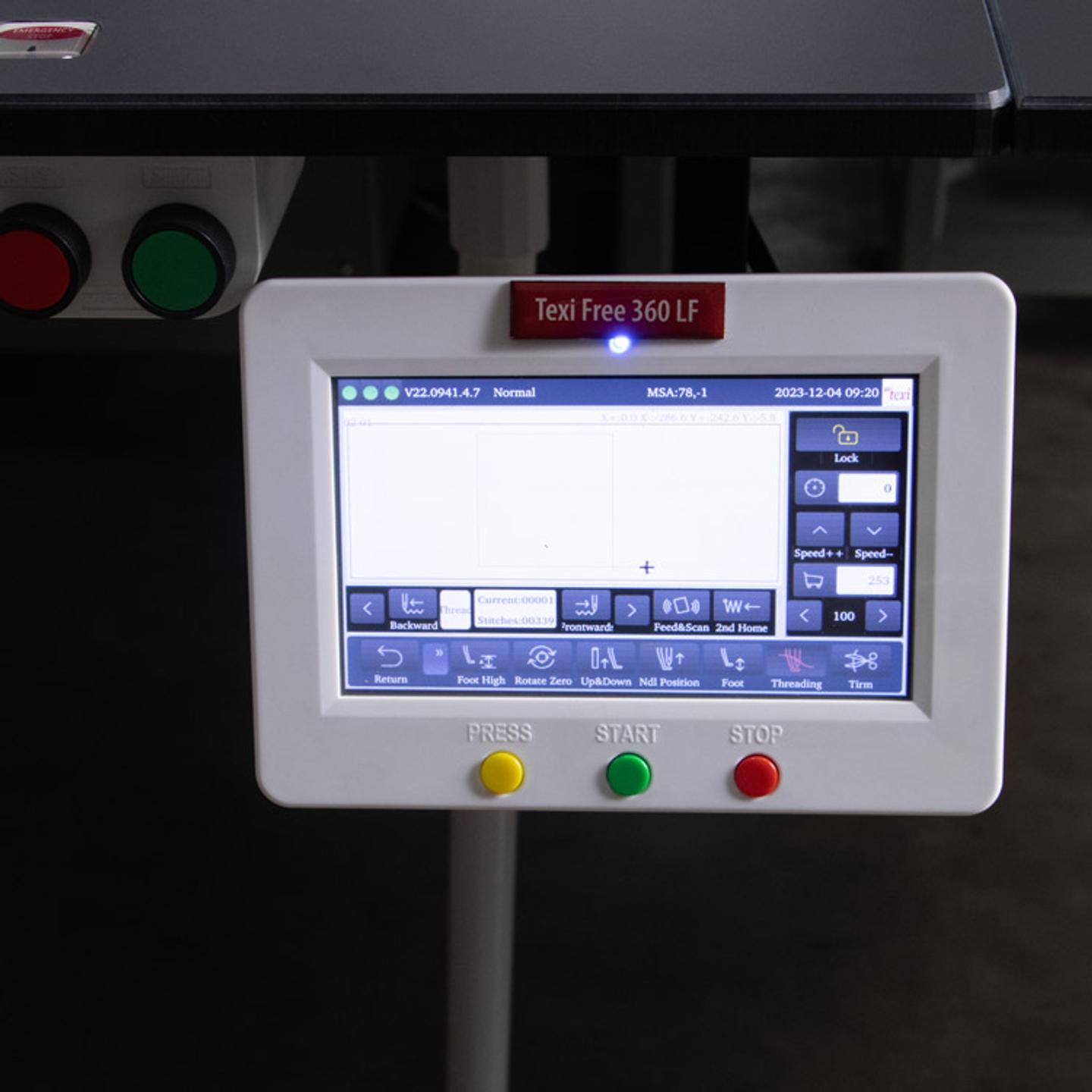

• 7-inch LCD touch control panel with USB port for data transfer and storing patterns in internal memory (up to 999 patterns)
• maximum number of stitches per pattern: 20,000
• editing of existing and programmed patterns
• automatic start/stop switch with pause/continue function
• programmable rotation angle in 0.05° steps
• automatic thread trimmer
• air blowing system for needle cooling
• thread catcher
• safety switch and thread break detection
• maximum sewing speed: 3,000 stitches per minute
• stitch length: 0.5 – 12.7 mm

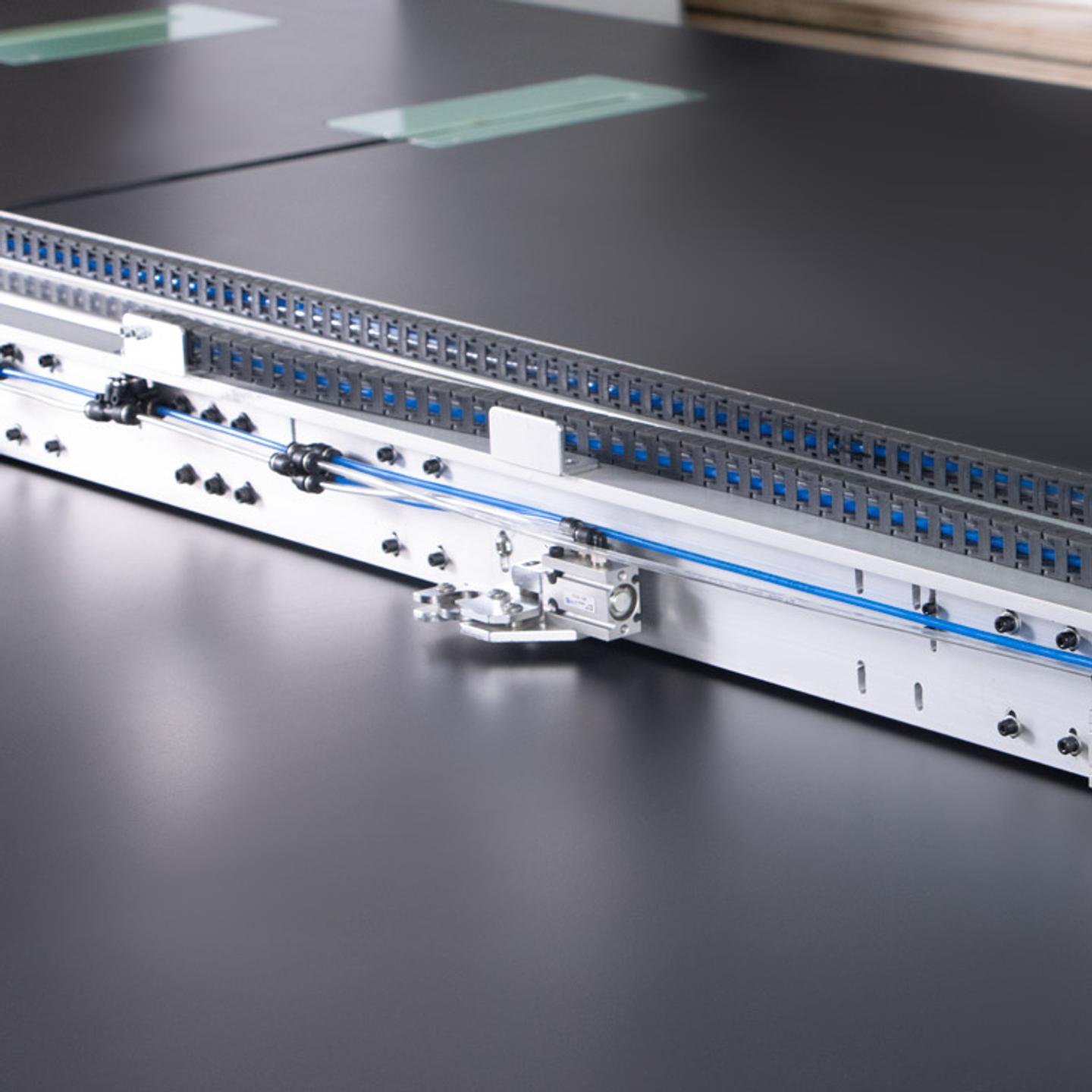

• rail with effective sewing area: 2500 × 1300 mm
• open frame 70 × 70 cm included; templates prepared on customer request
• external bobbin winder
• RFID card scanner – the machine can store patterns on an RFID card for quick selection
• supported file formats: .dst, .dxf, .vdt

Compressed air required: 5 bar.

Needle system: 135x17. For automatic multidirectional sewing machines, SCHMETZ needles in MR or SERV 7 version may be used with appropriate needle points depending on the fabric.
