Automatic lockstitch machine for sewing thick fabrics with unison feed and built-in motor - head only

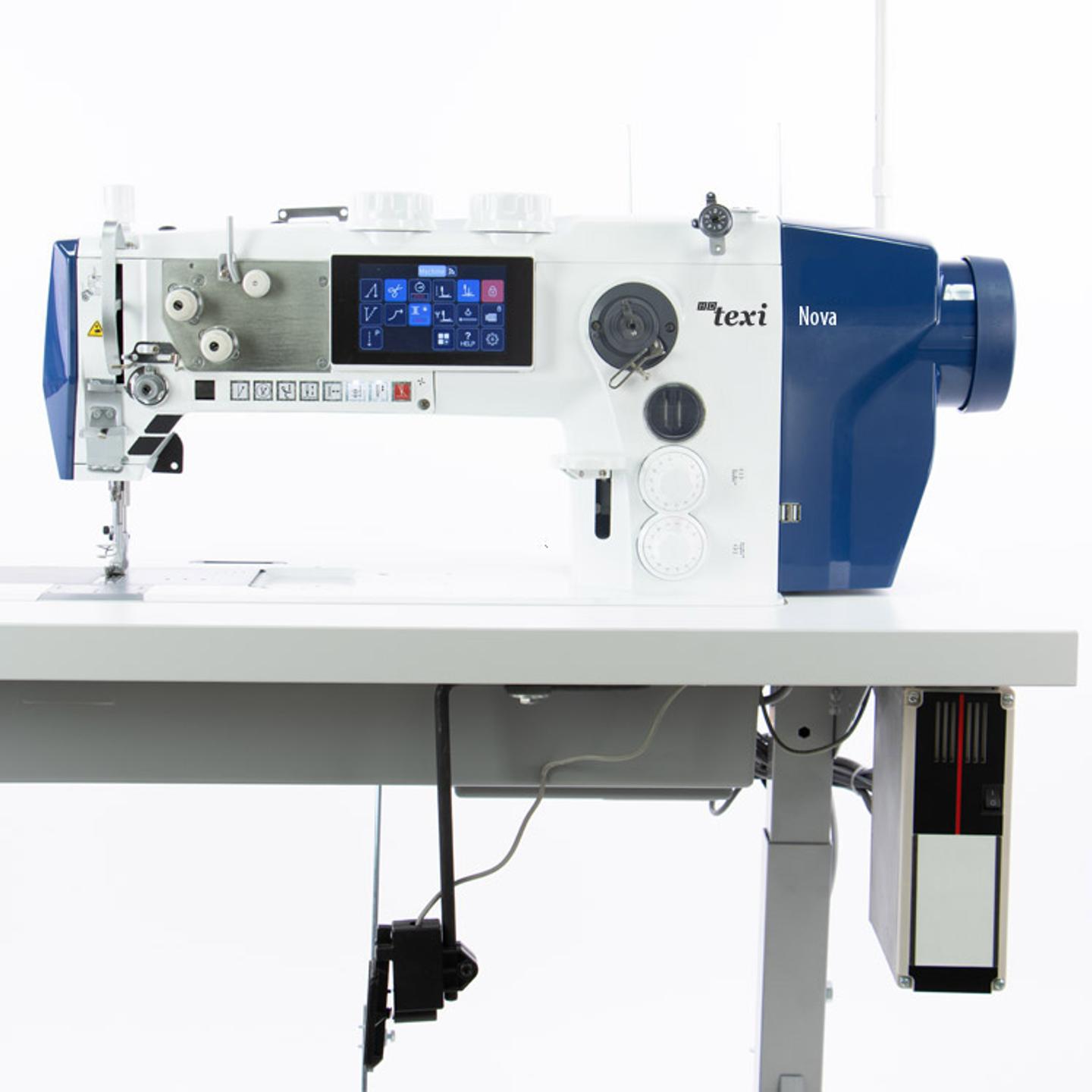

TEXI NOVA 2609 PREMIUM is a single-needle automatic sewing machine for medium and heavy fabrics with unison feed, a large bobbin, and a built-in stepper motor.

TEXI NOVA 2609 is an industrial sewing machine with automatic thread trimming, foot lifting, bartacking, and a special "HP" function allowing a one-click switch to sewing mode for very thick segments by increasing presser foot lift height and stitch length. The system enables the setting of two presser foot lift heights and easy switching between them during operation. The NOVA sewing machine features integrated LED workspace lighting, a large 5.1" color touchscreen display, safety clutch protecting the bobbin from damage.

A single-needle lockstitch machine with unison feed, TEXI NOVA 2609 offers automatic needle positioning (up-down), adjustable presser foot lift height, and a large 26 mm bobbin. The machine sews stitches up to 9 mm in length at a maximum sewing speed of up to 3400 stitches per minute. It also allows for the setting of two stitch lengths with quick switching capability. Two stitch lengths facilitate sewing through multiple layers of fabric. The machine's presser foot can be lifted up to 20mm. It comes equipped with central lubrication and an energy-efficient stepper motor 220-240 V.

The control panel of the TEXI NOVA 2609 PREMIUM machine is an advanced tool allowing easy and intuitive adjustment of all key sewing parameters. Built in the form of a 5.1-inch touchscreen display, it provides the user with full control over the sewing process. With its functionality, the operator can precisely select and adjust all essential sewing parameters such as overlocking, thread trimming, sewing speed, and more. In addition to functional buttons, this model features a roller, allowing smooth adjustment of the needle position during material maneuvering without using the handwheel.

Texi Nova 2609 is designed for industrial use, sewing medium and heavy fabrics. It can be used in the production of high-quality upholstered furniture such as sofas, armchairs. Suitable for the production of various leather accessories such as bags or covers, where durable and aesthetic seams on thick materials are required. TEXI NOVA 2609 PREMIUM ensures high efficiency, precision, and seam durability, making it an indispensable tool for various industrial sectors.

Technical specification:

- Unison feed - bottom, top, and needle
- 5.1-inch touchscreen panel
- Stitch length up to 9 mm
- Presser foot lift height 20 mm
- Maximum sewing speed 3,400 stitches/min
- HP system - ability to set two presser foot lift heights with easy switching
- Ability to set two stitch lengths with easy switching
- Clearance between needle plate and machine arm 35 cm
- Automatic needle positioning
- Large 26 mm bobbin hook
- Needle system 134-35
- Central lubrication

Compressed air is required for machine operation.

Head for self-assembly
