Lockstitch machine for sewing thick fabrics with automatic functions, unison feed and built-in motor - head only

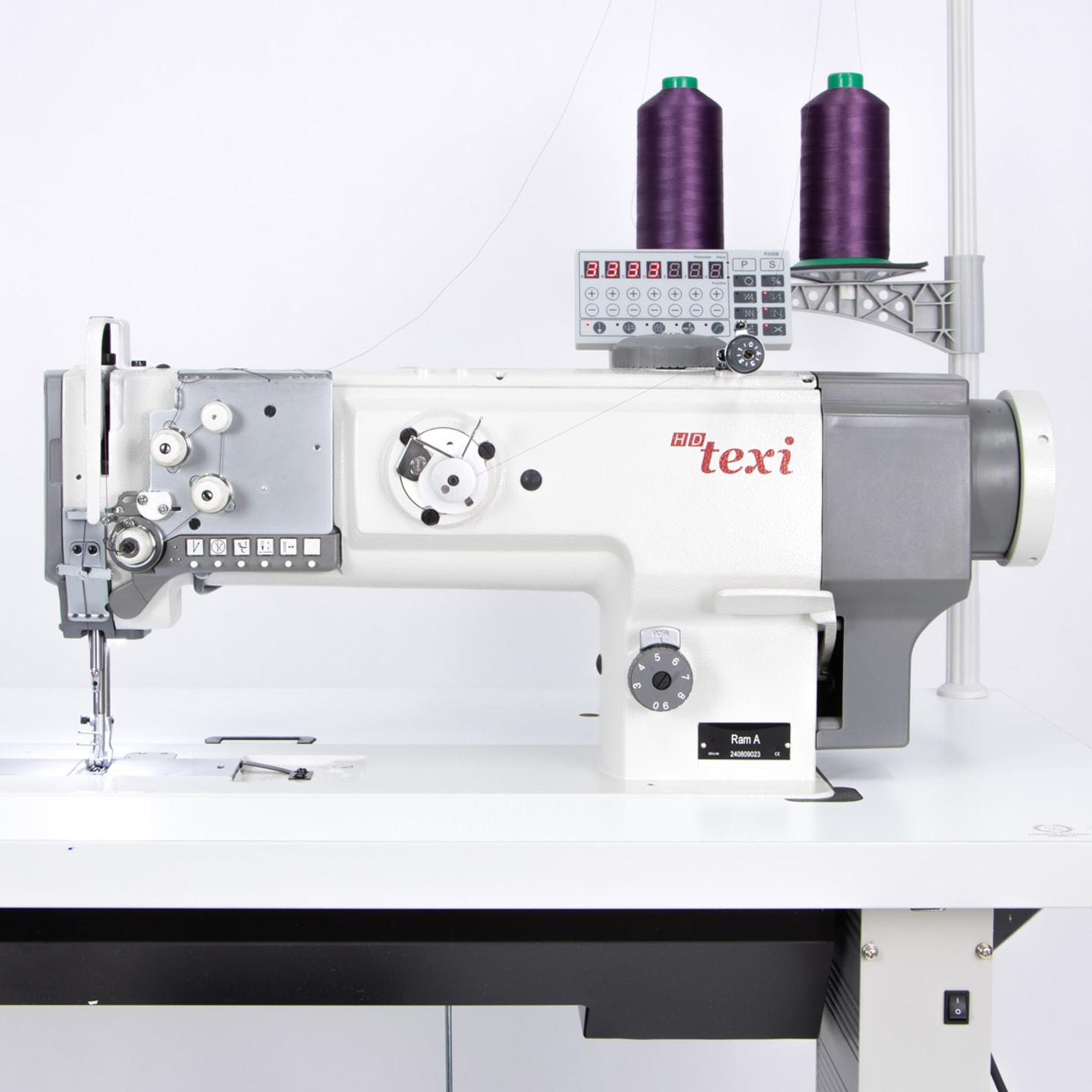

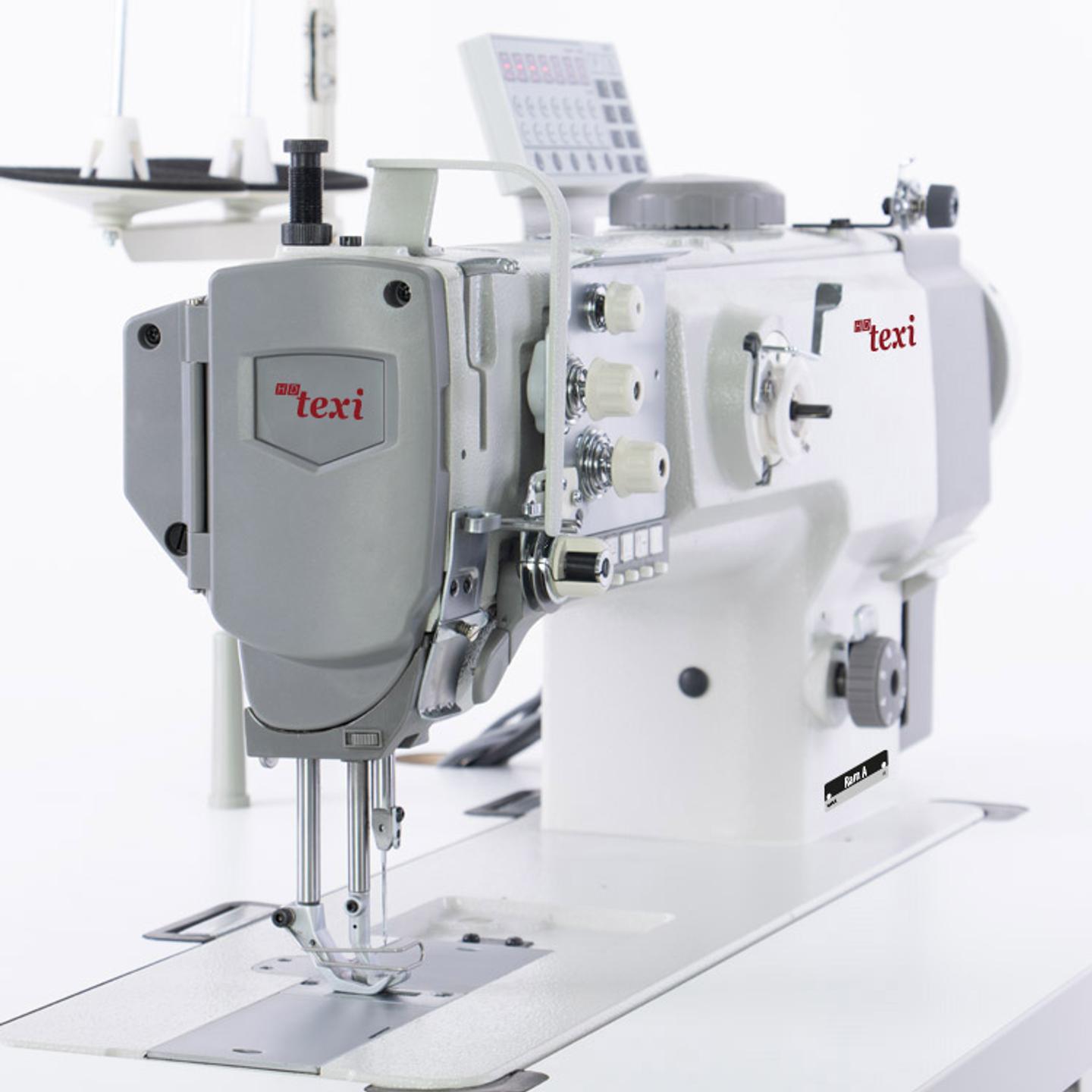

TEXI RAM A is a single-needle sewing machine designed for medium and heavy-duty sewing with automatic functions, unison feed, and a large bobbin holder.

TEXI RAM A is an automatic industrial sewing machine with triple transport, equipped with automatic thread trimming, electro-pneumatic foot lifting, and locking functions.

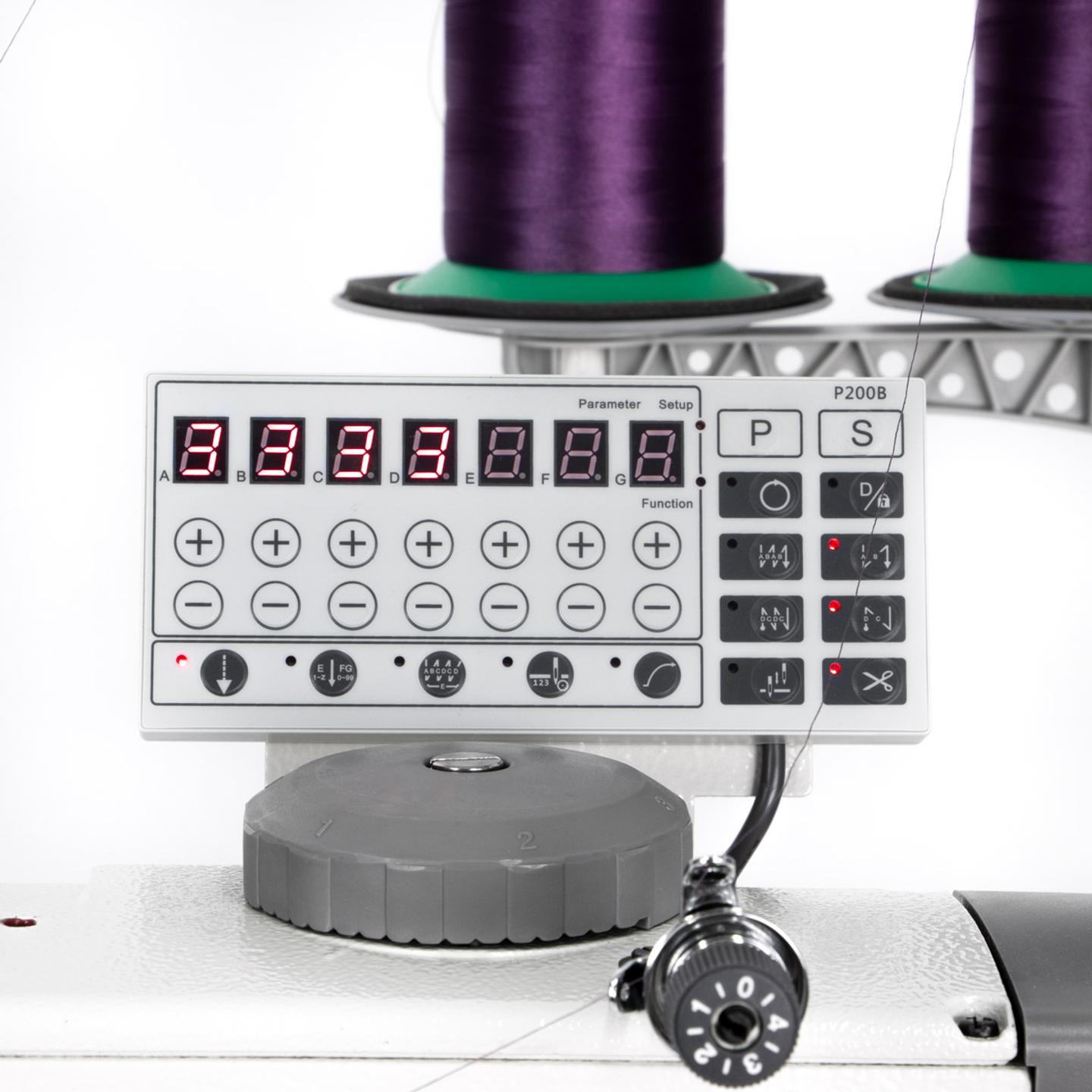

TEXI RAM A features automatic needle positioning (up-down), height adjustment of the feet with a special knob, and a large 28 mm bobbin holder. The machine sews stitches up to a maximum length of 9 mm at a maximum speed of 2000 stitches per minute. The foot can be lifted up to 16mm. Equipped with central lubrication and an energy-efficient AC Servo motor 220-240 V. The sewing machine has an intuitive control panel and integrated LED lighting in the work area.

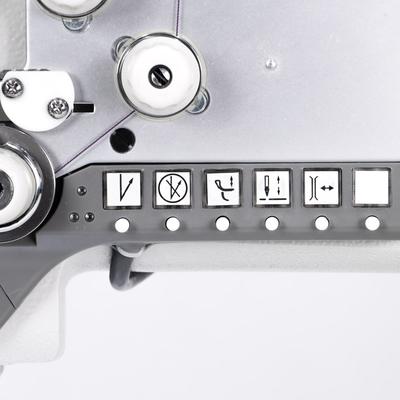

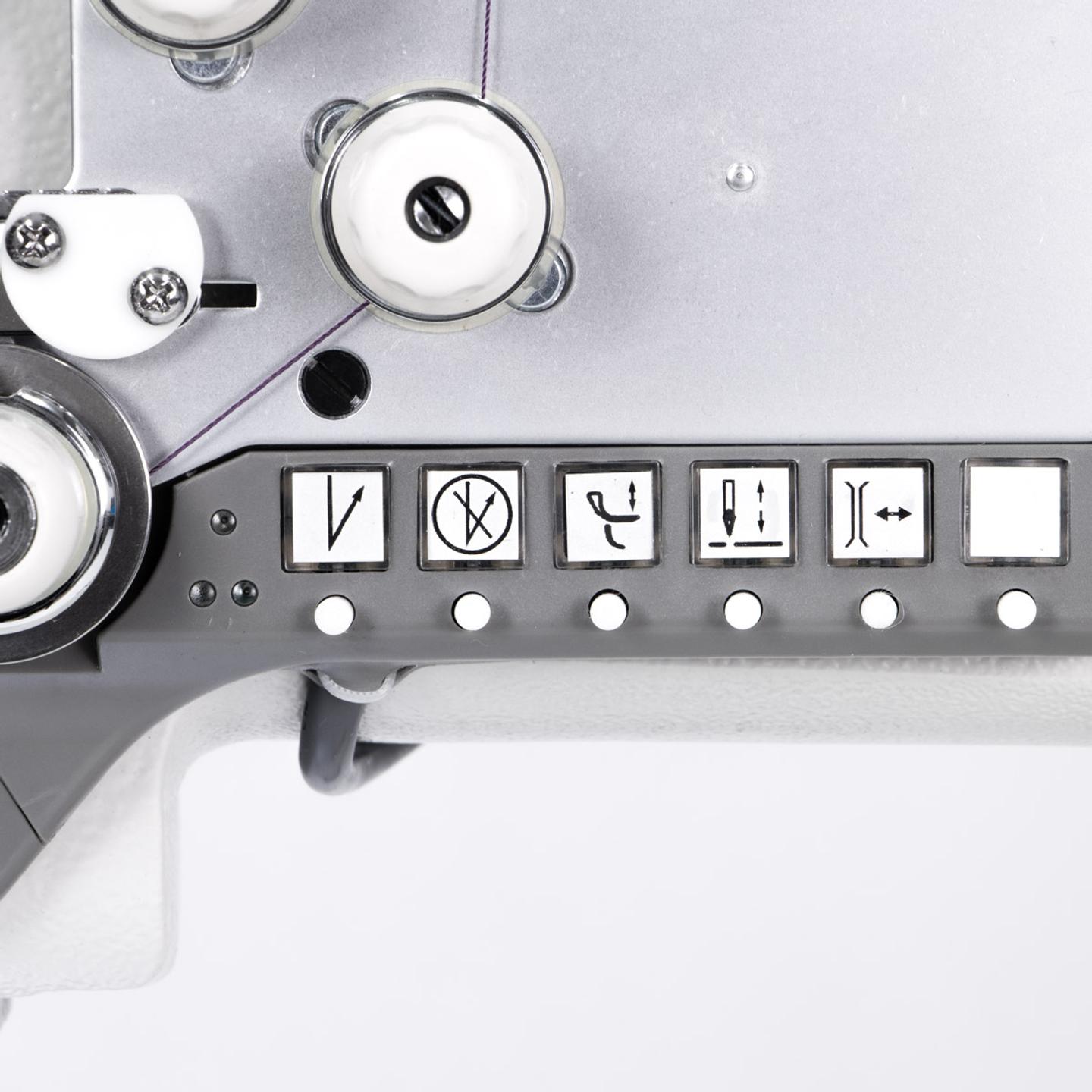

TEXI RAM A stands out with additional quick access buttons responsible for automatic locking front/back, changing foot lifting height, adjusting stitch length to short, and releasing the upper thread tension. The TEXI RAM A machine is specially designed for intensive industrial work, perfectly suitable for sewing medium and thick materials. Its applications are versatile and include various industries such as upholstery, leather clothing production, footwear, and covers for tools. Thanks to its solid construction, advanced features such as electromagnetic thread trimming, electro-pneumatic foot lifting, and high speed, the TEXI RAM A machine is an indispensable tool for various industries requiring fast, precise, and durable sewing of thick materials in industrial conditions.

Technical Specification:

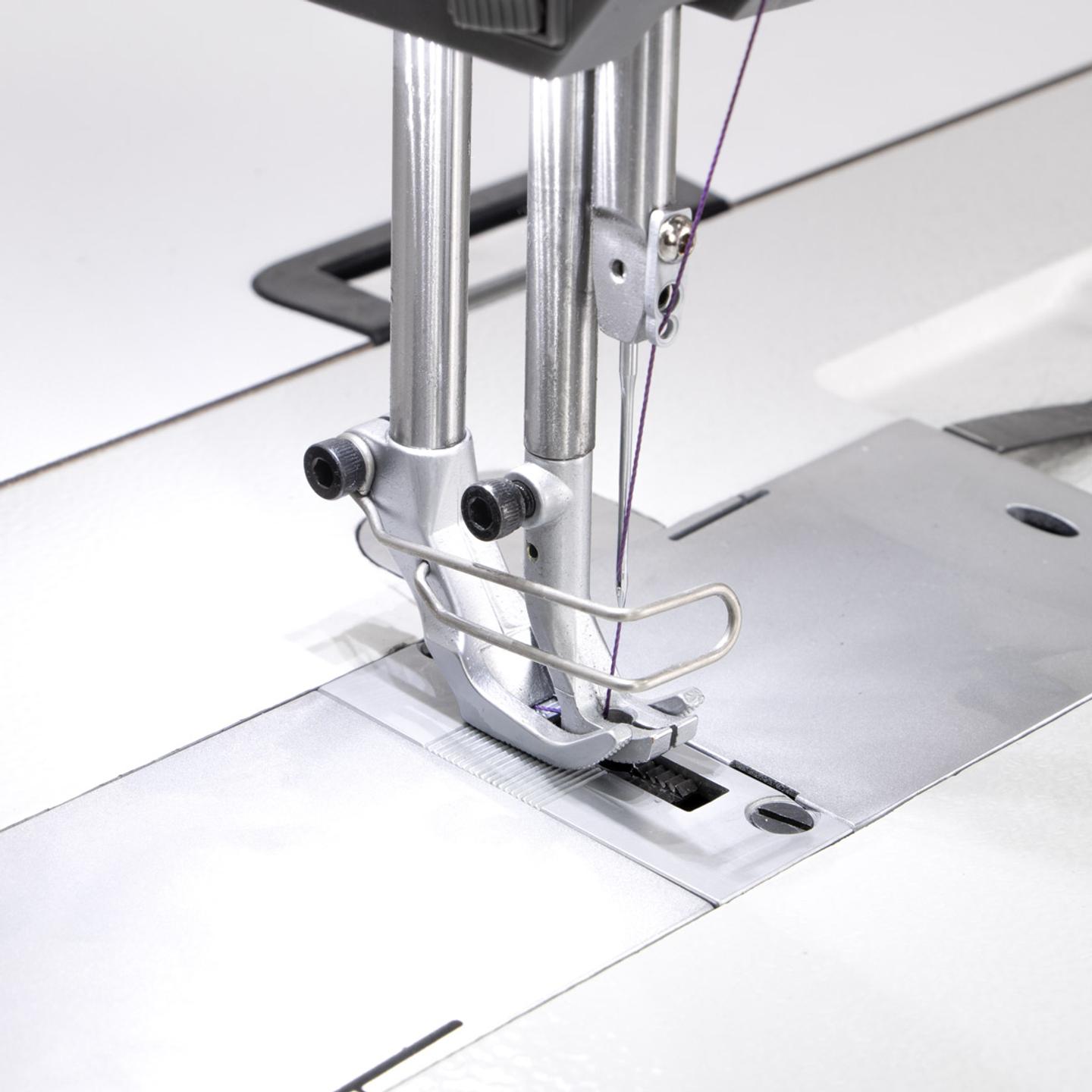

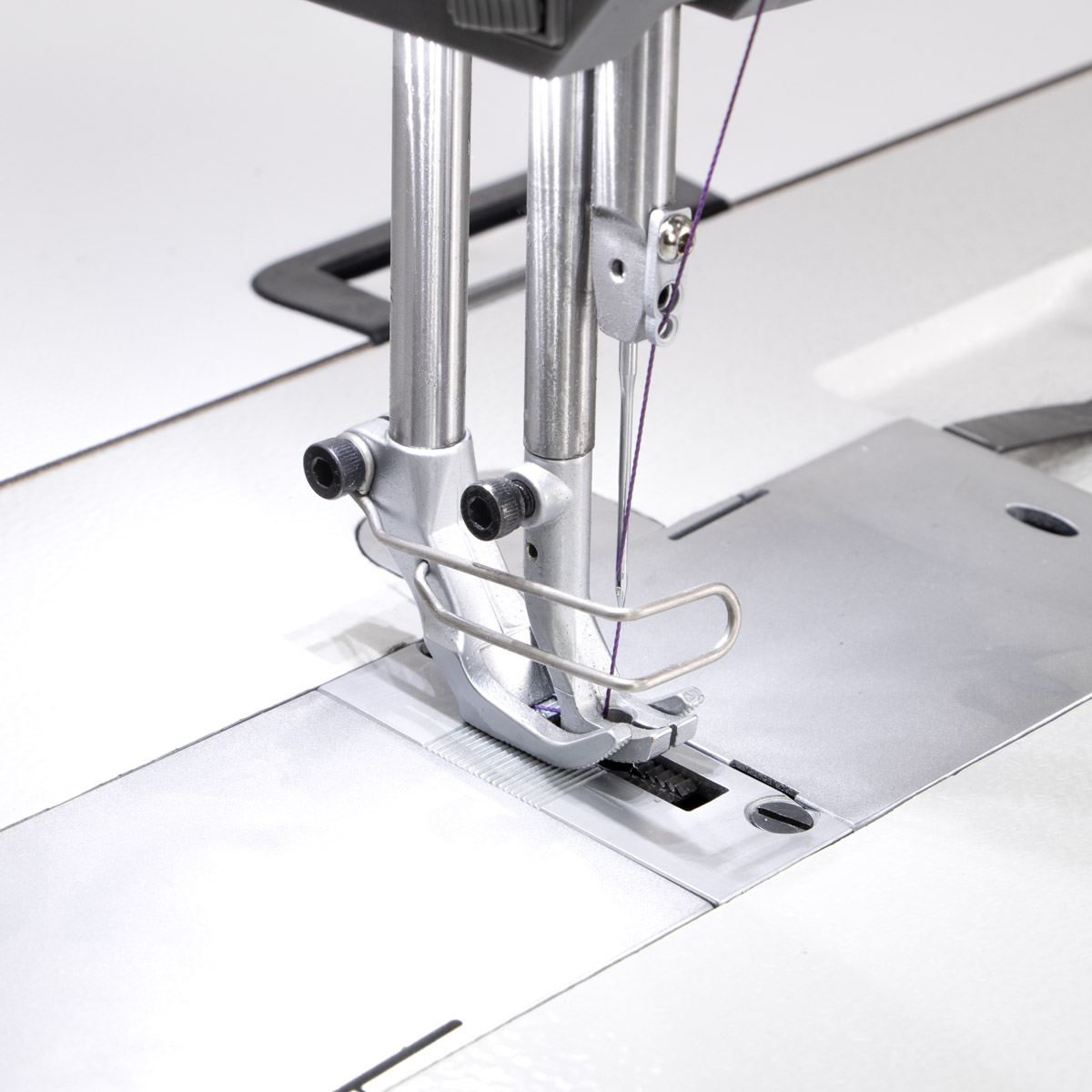

- Unison feed - bottom, upper foot, and needle
- Electro-pneumatic foot lifting up to 16 mm
- Stitch length up to 9 mm
- Maximum foot lifting height adjustment 6.5 mm
- Maximum sewing speed 2,000 stitches/min
- Automatic thread trimming
- Automatic locking
- Automatic needle positioning
- Large 28 mm bobbin holder
- Clearance between the needle plate and the machine arm 33,5 cm
- Central lubrication
- Needle system 134-35

Compressed air is necessary for machine operation.

Head for self-assembly
