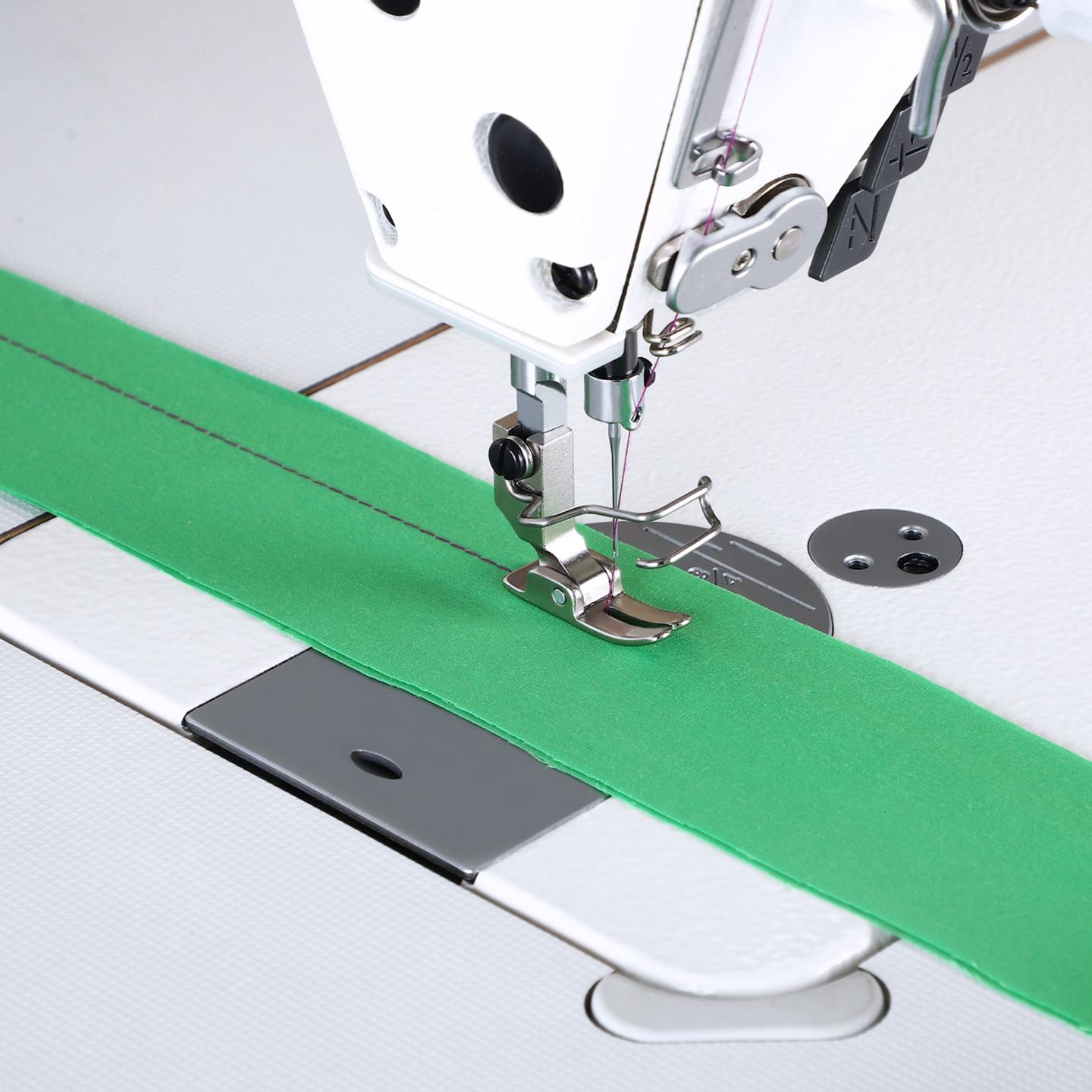

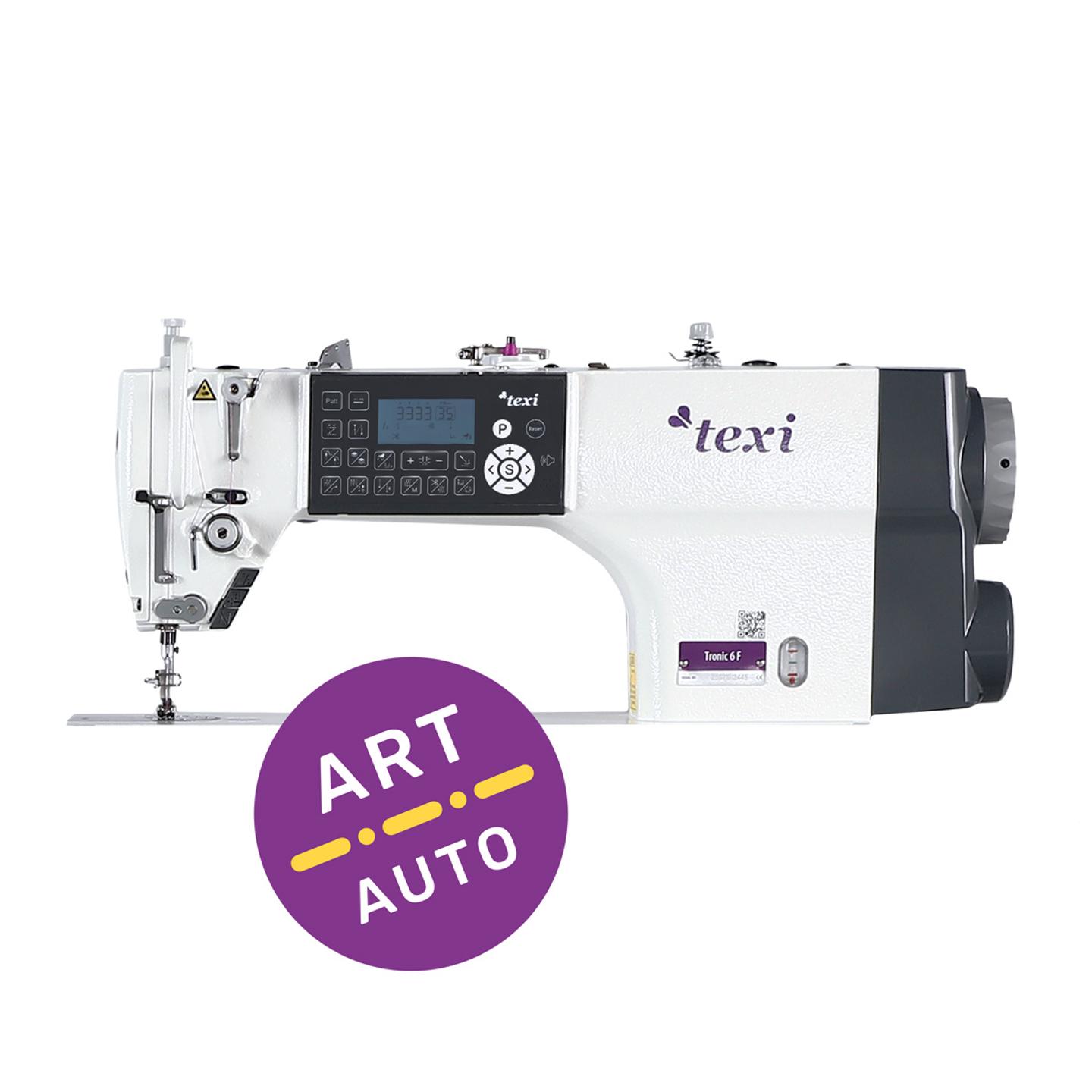

Automatic single needle lockstitch machine TEXI TRONIC 6F, light and medium fabrics - head

Single needle lockstitch machine with enlarged working area, stitch length up to 6 mm and decorative stitch

Texi TRONIC 6F ART AUTO is an advanced industrial lockstitch machine for light and medium fabrics. It features a closed oil system eliminating the risk of oil stains and ensuring clean operation. The machine offers an extended clearance (305 mm from arm to needle bar) and a decorative stitch function. Integrated stepper motor ensures quiet, vibration-free operation. LED lamp precisely illuminating the working area.

Texi TRONIC 6F ART AUTO is the successor to the model: TEXI ART AUTO 2

Technical specifications

The lockstitch is equipped with independent stepper drives for the needle bar, feed, and thread cutting units. It guarantees quiet and efficient operation and precise fabric feeding.

Sewing speed up to 5000 stitches/min
Stitch length up to 6 mm
Presser foot lift 5.5–13 mm
Equipped with a standard 21 mm hook and bottom feed.

08-mzMVWv0s

Main features

• Max. sewing speed: 5000 stitches/min
• Max. stitch length: 6 mm
• Large clearance: 305 mm
• Automatic thread trimming and bartacking
• Automatic foot lift driven by a stepper motor
• Automatic needle positioning
• ART AUTO decorative stitches – programmable
• Closed oil system – no oil stains, clean operation
• Built-in stepper motor – quiet operation, no vibrations

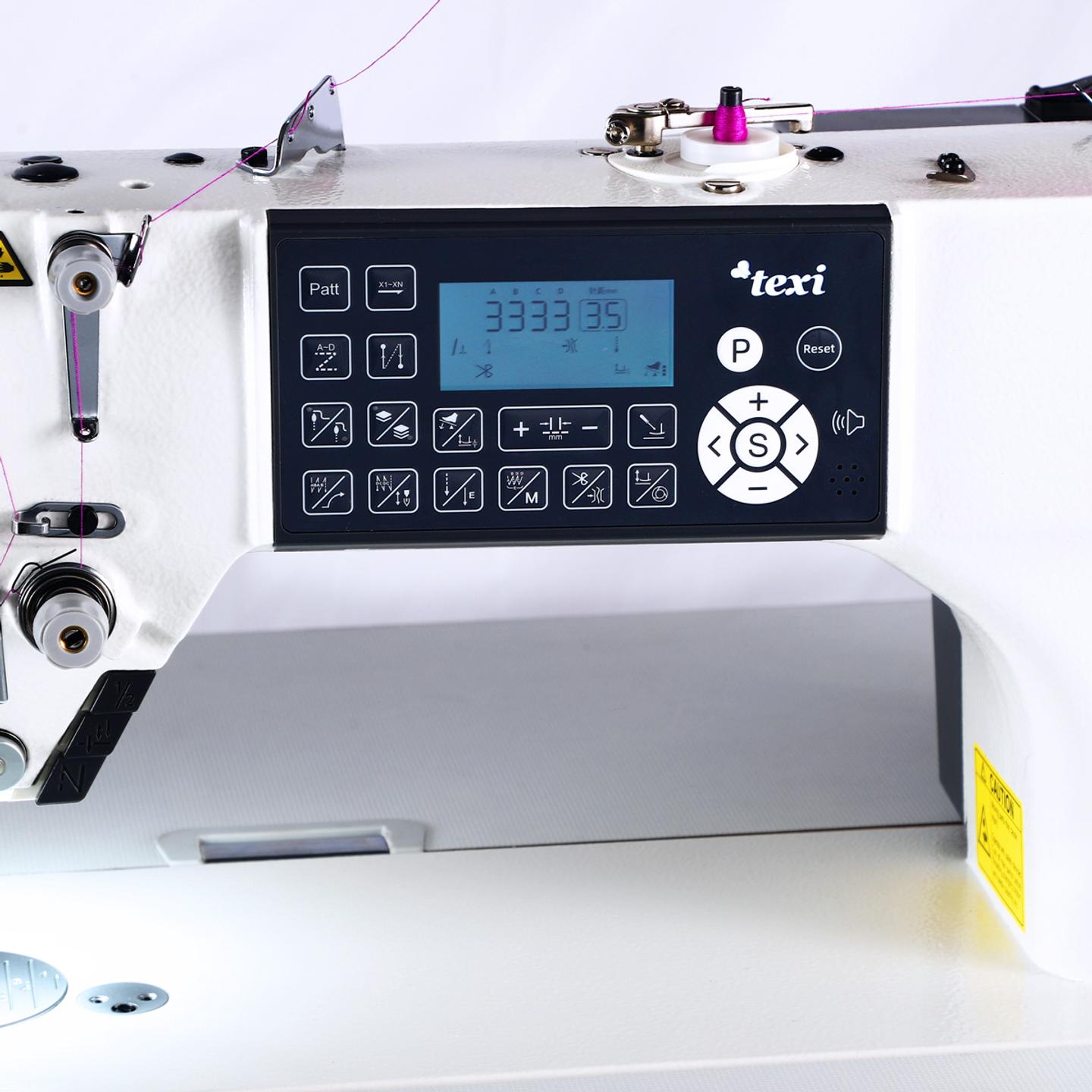

• LED lamp precisely illuminating the working area
• Dense stitch bartack function
• Recommended needle system 135x5

Head for self-assembly.
